38706x99A Murray - Lawn Tractor (1996)

Model: 38706x99A

Back To Assemblies

Save Part Not Listed?
product name

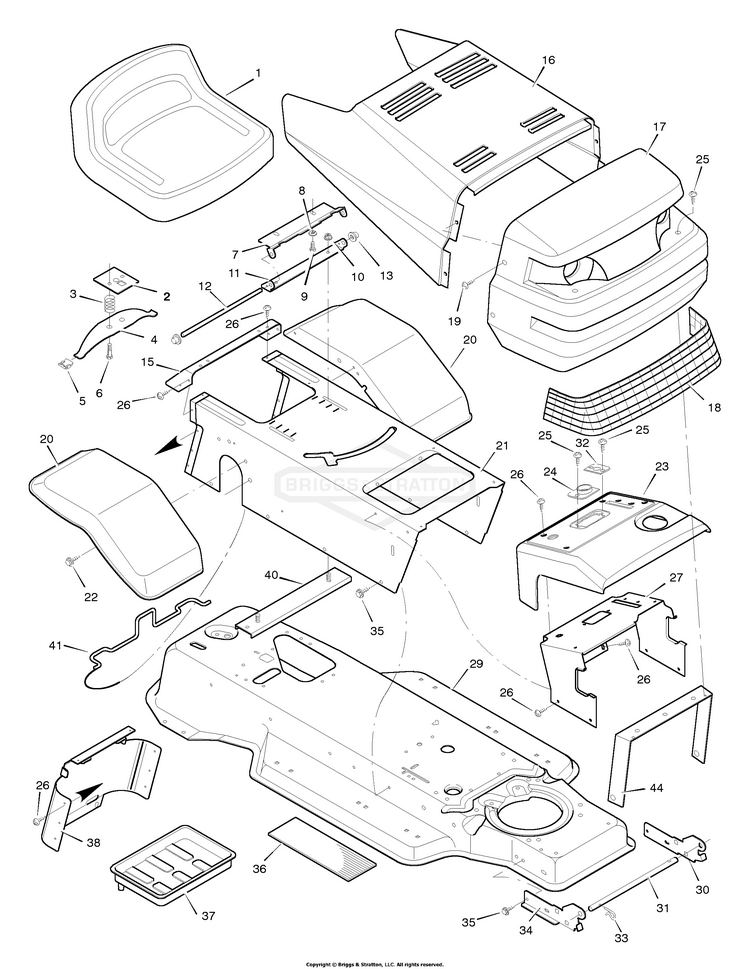

Chassis & Hood

...
...
1
Seat BS-091965
...
2
Plate Assembly, Switch BS-091963 Z
...
3
Spring, Compression BS-164X26MA
...
4
Spring, Seat BS-091964MA
...
5
Glide, Spring BS-091822MA
...
6
Bolt, Shoulder BS-009X38MA
...
7
Support, Seat BS-92334E701
...
8
Lockwasher BS-018X16MA
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Bracket, Pivot BS-091729E701
...
12
Rod, Pivot BS-91730E701
...
13
PUSHNUT, 3/8 BS-703948
...
15
Fender, Apron BS-91724E701
...
16
Hood BS-092333F200
...
17
Grille Assembly (Includes Lens) BS-092350MA
...
18
Lens BS-092344MA
...
19
Screw BS-009X47MA
...
20
Fender BS-92328F200
...
21
Console Assembly BS-092727F200
...
22
SCREW.25-20 S-T BS-26X263MA
...
23
Dash Panel BS-070138MA
...
24
Bearing, Steering BS-092399
...
25
Screw BS-26X239MA
...
26
SCREW, Thread Forming BS-26X270MA
...
27
Support, Dash BS-92331E701
...
29
Frame Assembly BS-092815F200
...
30
Bracket, Left Grille BS-092347E701MA
...
31
Rod, Pivot BS-092332 Z
...
32
Bearing BS-092398
...
33
PIN, 3/32 X 1.6 BS-703300
...
34
Bracket, Right Grille BS-92346E701
...
35
Screw BS-26X249MA
...
36
Mat BS-091900MA
...
37
Tray, Battery BS-091895MA
...
38
Cap, Console BS-092443F200
...
39
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
40
Channel Assembly BS-091857E701
...
41
Clamp, Battery BS-092725 Z
...
44
Brace, Grille BS-92448 Z
...
--
Book, Instruction (English) BS-F-96700
...
--
Repair Parts Book BS-F-96734
...
--
Decal, Left Hood BS-44X3043
...
--
Decal, Right Hood BS-44X3042
...
--
Decal, Console BS-44X5787
...
--
Decal, Warning BS-44X4308
...
--
Decal, Shift Pattern BS-44X1459
...
--
Plaque, Name BS-280X56
