38705x5A Murray - Lawn Tractor (1996)

Model: 38705x5A

Save Part Not Listed?
product name

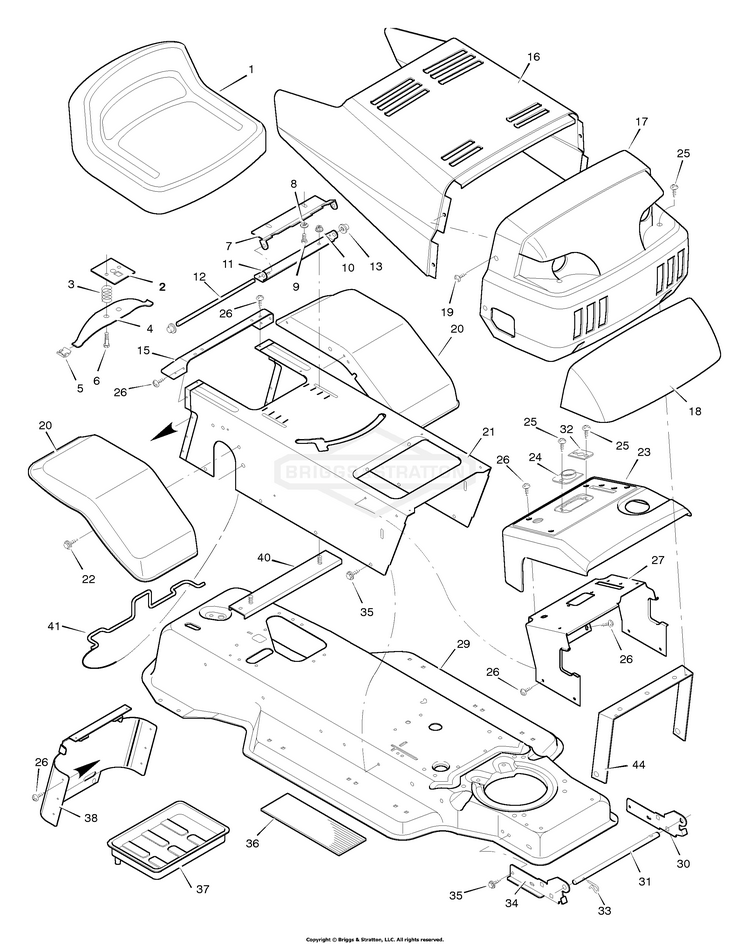

Chassis & Hood

...
...
1
Seat BS-091965
...
2
Plate Assembly, Switch BS-091963 Z
...
3
Spring, Compression BS-164X26MA
...
4
Spring, Seat BS-091964MA
...
5
Glide, Spring BS-091822MA
...
6
Bolt, Shoulder BS-009X38MA
...
7
Support, Seat BS-92334E701
...
8
Lockwasher BS-018X16MA
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Bracket, Pivot BS-091729E701
...
12
Rod, Pivot BS-91730E701
...
13
PUSHNUT, 3/8 BS-703948
...
15
Fender, Apron BS-91724E701
...
16
Hood BS-092333E245MA
...
17
Grille Assembly (Includes Lens) BS-92367E245
...
18
Lens BS-092369MA
...
19
Screw BS-009X47MA
...
20
Fender BS-92328E245
...
21
Console Assembly BS-092727E245
...
22
SCREW.25-20 S-T BS-26X263MA
...
23
Dash Panel BS-92605E245
...
24
Bearing, Steering BS-092399
...
25
Screw BS-26X239MA
...
26
SCREW, Thread Forming BS-26X270MA
...
27
Support, Dash BS-92331E701
...
29
Frame Assembly BS-092815E245
...
30
Bracket, Left Grille BS-092347E701MA
...
31
Rod, Pivot BS-092332 Z
...
32
Bearing BS-092398
...
33
PIN, 3/32 X 1.6 BS-703300
...
34
Bracket, Right Grille BS-92346E701
...
35
Screw BS-26X249MA
...
36
Mat BS-091900MA
...
37
Tray, Battery BS-091895MA
...
38
Cap, Console BS-092443E245
...
39
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
40
Channel Assembly BS-091857E701
...
41
Clamp, Battery BS-092725 Z
...
44
Brace, Grille BS-92448 Z
...
--
Book, Instruction (English) BS-F-96700
...
--
Repair Parts Book BS-F-96834
...
--
Decal, Left Hood BS-44X6053
...
--
Decal, Right Hood BS-44X6052
...
--
Decal, Left Console BS-44X4295
...
--
Decal, Right Console BS-44X4296
...
--
Decal, Warning BS-44X4308
...
--
Decal, Shift Pattern BS-44X1459
...
--
Plaque, Name BS-280X29

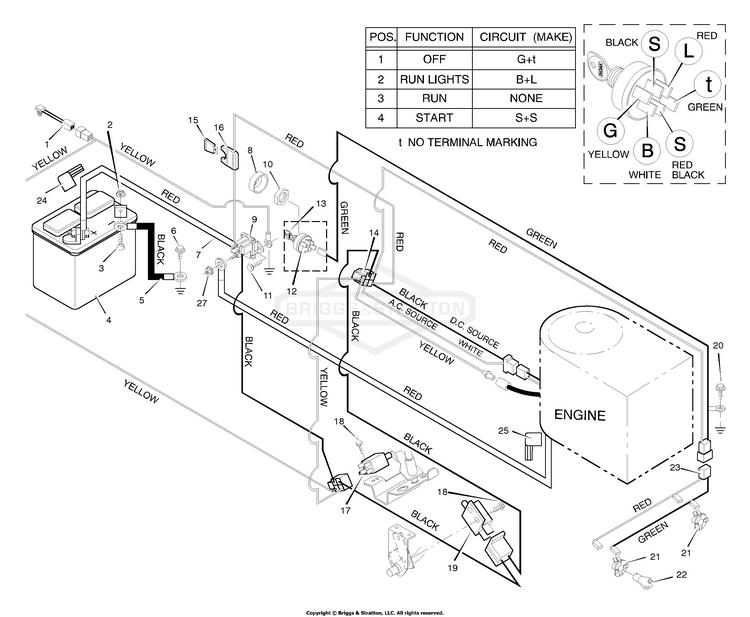

Electrical System

...
...
1
Switch, Seat Sensor BS-091031
...
2
NUT, 1/4-20, NYLOCK BS-703232
...
3
Bolt, Hex BS-001X38MA
...
4
Battery BS-091414
...
--
Acid, Battery (Electrolyte) BS-055702
...
5
Cable, Battery Ground BS-024X30
...
6
Screw BS-26X249MA
...
7
Cable, Red Battery BS-024X29MA
...
8
CAP, Switch BS-847150
...
9
Solenoid BS-024285
...
10
SET, Washer/Nut BS-847144
...
11
Screw BS-26X214MA
...
12
Switch, Ignition BS-092377MA
...
13
Key, Ignition BS-020729
...
14
Harness, Chassis Wire BS-250X50MA
...
15
Fuse BS-054212
...
16
Holder, Fuse BS-407078MA
...
18
Screw BS-26X233MA
...
19
SWITCH, PLUNGER, N.O. BS-5021451SM
...
20
SCREW, HEX, 1/4-20X.5 BS-704130
...
21
Socket, Light BS-092372
...
22
BULB-HEADLIGHT 1 BS-1677371SM
...
23
Harness, Light Wire BS-250X40MA
...
24
Cover, Terminal BS-054148MA
...
25
Cover, (Optional) BS-024196
...
27
NUT, 1/4-20, NYLOCK BS-703232

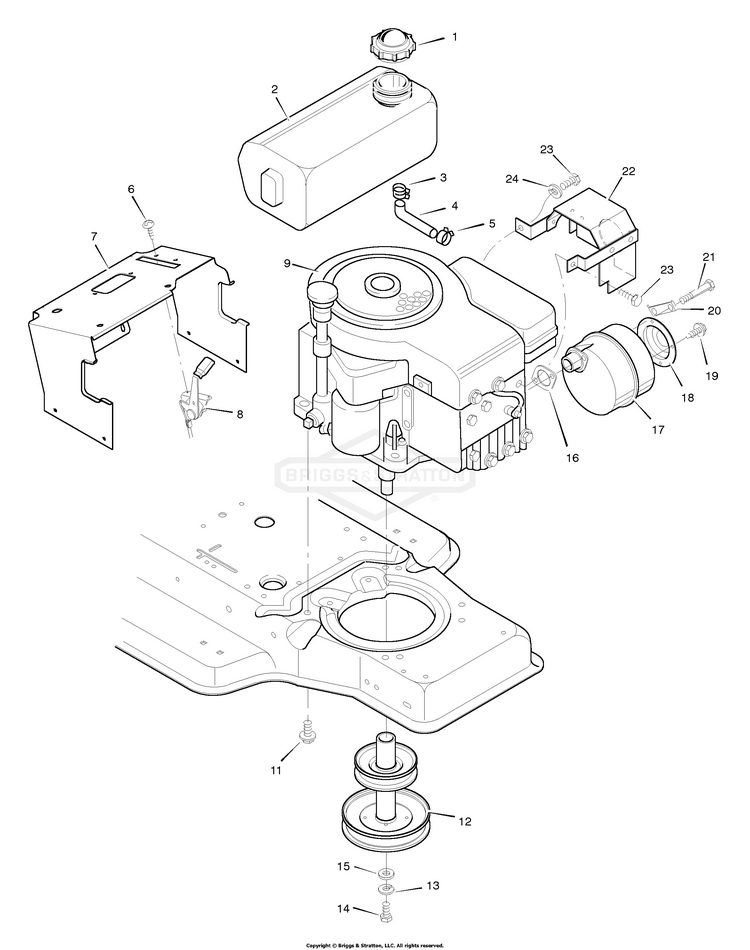

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
Fuel Tank BS-092342
...
3
Hose Clamp BS-091174
...
4
Fuel Line BS-023717
...
5
CLAMP, Hose BS-691038
...
6
Screw BS-26X201MA
...
7
Support, Dash BS-92331E701
...
8
Throttle Control BS-092371MA
...
11
SCREW-HEX WSHR HD TAP BS-2828635SM
...
12
Stack Pulley Assembly BS-092318
...
13
Lockwasher BS-019X35MA
...
14
Bolt, Hex BS-01X140MA
...
15
WASHER.46.97.25 FLAT BS-17X170MA
...
16
GASKET, Exhaust BS-692236
...
17
Muffler BS-091271
...
18
Deflector, Muffler BS-023740 Z
...
19
Screw BS-26X208MA
...
20
LOCK-SCREW 223016 BS-092378MA
...
21
Bolt BS-01X134MA
...
22
Shield, Heat BS-092381SE
...
23
SCREW, HEX, 1/4-20X.5 BS-704130
...
24
Washer BS-018X32MA

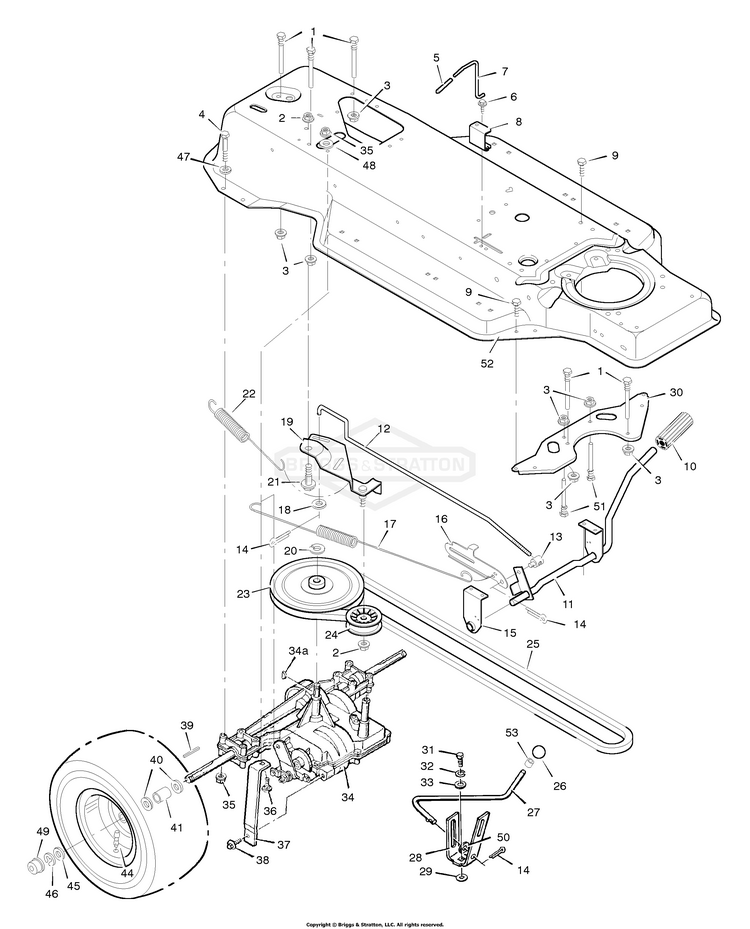

Motion Drive

...
...
1
Guide, Belt BS-091754 Z
...
2
NUT, CNTR LCK, 3/8-16 BS-703893
...
3
NUT, 5/16-18, GR5 BS-703409
...
4
Bolt, Hex BS-01X124
...
5
Grip BS-092724
...
6
Screw BS-26X214MA
...
7
Rod, Control BS-91727E701
...
8
Guide, Bracket BS-91825E701
...
9
Screw BS-26X249MA
...
10
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
11
Lever Assembly BS-91862E701
...
12
Rod, Clutch BS-091808 Z
...
13
Nut, Adjustable BS-021920ZMA
...
14
PIN, COTTER, 3/32X.75 BS-703312
...
15
Bracket, Support BS-091713E701
...
16
Latch, Park Brake BS-091712 Z
...
17
Spring, Brake Extension BS-165X82MA
...
18
WASHER, FLAT 5/16 BS-704015
...
19
Bracket Assembly, Idler BS-092737 Z
...
20
Ring, Retainer BS-0011X7MA
...
21
Bolt, Shoulder BS-009X39MA
...
22
Spring, Drive Extension BS-165X76
...
23
Pulley, Motion Drive BS-091807
...
24
Pulley BS-421409MA
...
25
Belt, Motion Drive BS-037X61AMA
...
26
Knob, Shift Lever BS-091995
...
27
Lever, Shift BS-091805 Z
...
28
Yoke, Shift BS-091806 Z
...
29
Washer BS-17X148MA
...
30
Plate, Belt Guide BS-092694E701MA
...
31
Bolt, Hex BS-01X145MA
...
32
Lockwasher BS-018X32MA
...
33
Washer BS-17X180MA
...
34A
Woodruff Key No. 9 BS-020697MA
...
35
NUT, HEX FLNG,5/16-18 BS-704067
...
36
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
37
Support, Transaxle BS-91804E701
...
38
Screw BS-26X216MA
...
39
Key, Square BS-021553MA
...
40
Washer BS-17X160MA
...
41
Spacer, Transaxle BS-690553 Z
...
42
Tire * BS-091914MA
...
--
Tube BS-407049MA
...
43
Wheel & Tire Assembly BS-092289601
...
44
VALVE STM&CP,TR41 SE BS-024373MA
...
45
Washer BS-17X115MA
...
46
RING, E .750D .050T BS-0011X3MA
...
47
WASHER BS-703332
...
48
WASHER,FLAT .33 1. 16 BS-017X45MA
...
49
Hub Cap (Optional) BS-024582MA
...
50
WASHER BS-703128
...
51
Guide, Belt BS-020619MA
...
52
Frame Assembly BS-92815E701
...
53
Ring, Tolerance BS-092008
...
55
Guard BS-92490E701
...
56
Guard BS-92489E701
...
57
SCREW, #10-16X.625 BS-703994

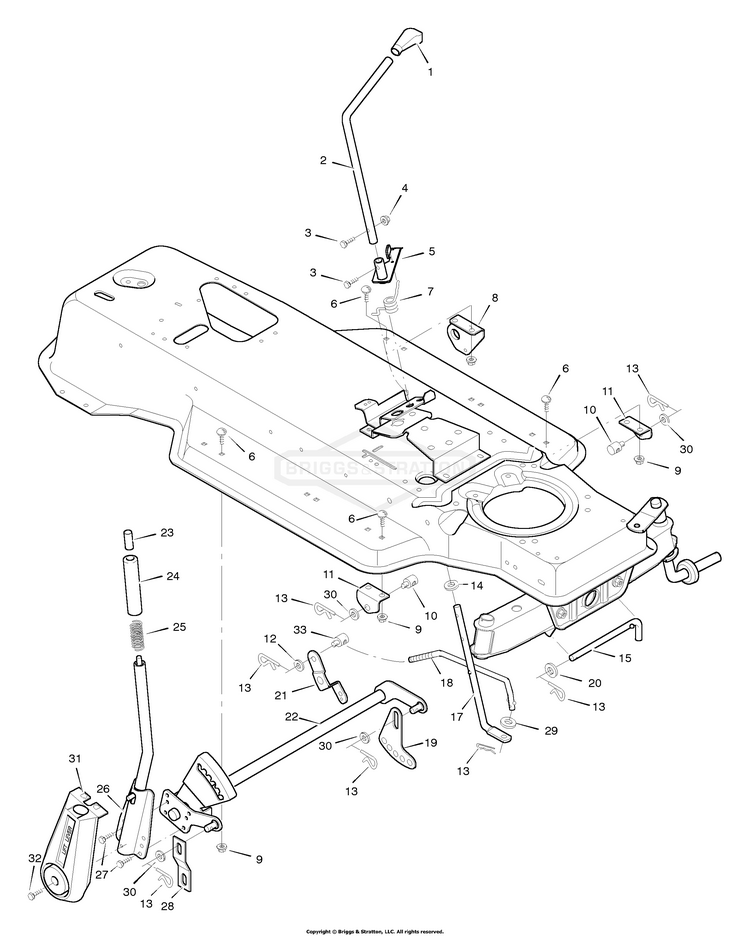

Mower Housing Suspension

...
...
1
GRIP BS-1753233YP
...
2
Control, Blade Rotation BS-091781 Z
...
3
Screw, Hex BS-0025X3MA
...
4
NUT, 1/4-20 BS-703251
...
5
Lever Assembly, Switch BS-091917E701MA
...
6
BOLT BS-703159
...
7
Spring, Torsion BS-166X32MA
...
8
Bracket, Rear Hanger BS-092066E701MA
...
9
NUT, 5/16-18, GR5 BS-703409
...
10
Nut, Adjusting BS-092131
...
11
Bracket, Adjuster Rod BS-92133E701
...
12
Washer BS-17X124MA
...
13
PIN, 3/32 X 1.6 BS-703300
...
14
Washer BS-17X122
...
15
Pin, Pull BS-090827 Z
...
17
Lever, Lower Blade Control BS-091787E701MA
...
18
Rod, Blade Control BS-091795 Z
...
19
Plate, Adjuster BS-091741E701MA
...
20
Washer BS-17X103MA
...
21
Bracket, Pivot BS-092033SEMA
...
22
Lifter Assembly BS-092065E701MA
...
23
Button, Push BS-092572MA
...
24
Grip BS-092783MA
...
25
Spring, Compression BS-164X21MA
...
26
Handle Assembly BS-91823E701
...
27
Screw BS-026X49MA
...
28
Link, Suspension BS-092064E701MA
...
29
WASHER, FLAT 5/16 BS-704015
...
30
Washer BS-017X91MA
...
31
Cover, Lift Lever (Optional) BS-092157MA
...
32
SCREW.25-20 S-T BS-26X263MA
...
33
Nut, Adjusting BS-021920ZMA

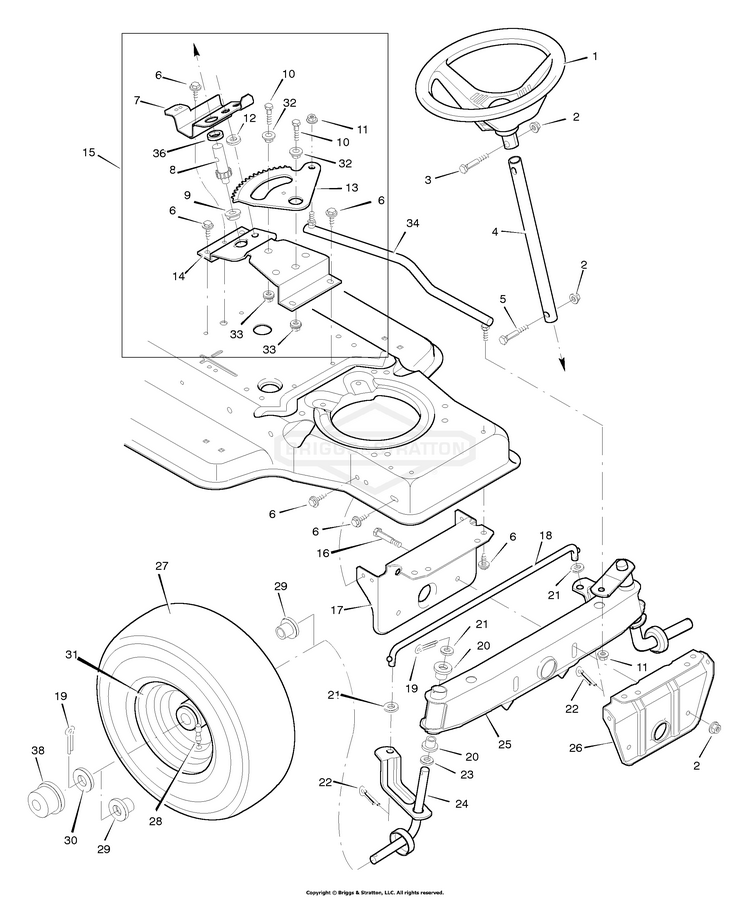

Steering

...
...
1
Wheel, Steering BS-092076
...
2
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
3
Bolt, Hex BS-001X66MA
...
4
Post, Steering BS-091860 Z
...
5
Bolt, Hex BS-001X74MA
...
6
Screw BS-26X249MA
...
7
Bracket, Sector BS-91716E701
...
8
Gear, Pinion BS-092715MA
...
9
Bearing BS-091756MA
...
10
BOLT BS-5025011X8FS
...
11
Locknut, Flange BS-015X87
...
12
Spacer BS-092564MA
...
13
Kit, Steering Gear BS-402075MA
...
14
Bracket, Sector BS-91708E701
...
15
Kit, Steering Gear BS-402075MA
...
16
Bolt, Hex BS-01X146MA
...
17
Support, Rear Axle BS-092529E701
...
18
Rod, Tie BS-90038E701
...
19
Pin, Cotter BS-030X49MA
...
20
Bearing BS-092527MA
...
21
Washer BS-017X57MA
...
22
PIN, COTTER, 3/32X.75 BS-703312
...
23
WASHER.76-1.2 13G FL BS-17X113MA
...
24
Spindle Assembly, Right BS-091828E701MA
...
25
Spindle Assembly, Axle & Left BS-92518E701
...
26
Support, Front Axle BS-092528E701
...
27
Tire * BS-091912MA
...
--
Tube BS-407047MA
...
28
VALVE STM&CP,TR41 SE BS-024373MA
...
29
Bearing, Wheel BS-091334
...
30
Washer BS-17X115MA
...
31
Wheel & Tire Assembly BS-92287601
...
32
Bearing BS-092097MA
...
33
Locknut, Flange BS-15X113MA
...
34
Link, Drag BS-091749E701MA
...
36
Spacer, Pinion Gear BS-092280MA
...
38
Hub Cap (Optional) BS-024582MA
