38702x8E Murray - Lawn Tractor (1996)

Model: 38702x8E

Back To Assemblies

Save Part Not Listed?
product name

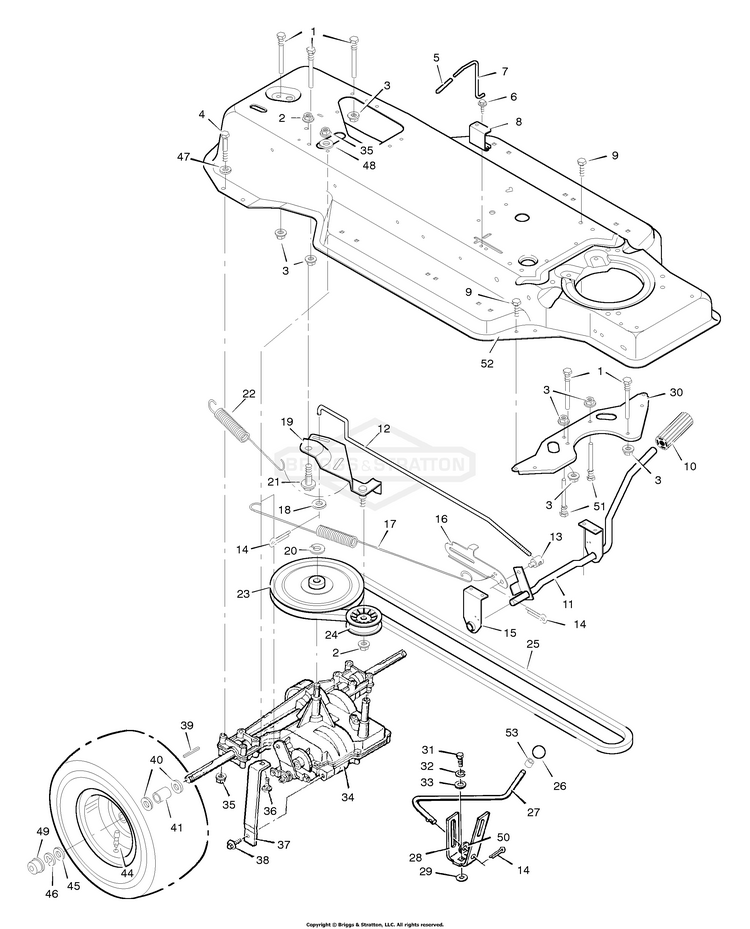

Motion Drive

...
...
1
Guide, Belt BS-91754 Z
...
2
NUT, CNTR LCK, 3/8-16 BS-703893
...
3
Nut, Flange BS-15X792
...
4
Bolt, Hex BS-01X124
...
5
Grip BS-092724
...
6
Screw BS-26X214MA
...
7
Rod, Control BS-91727E701
...
8
Guide, Bracket BS-91825E701
...
9
Screw BS-26X249MA
...
10
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
11
Lever Assembly BS-91862E701
...
12
Rod, Clutch BS-918082
...
13
Nut, Adjustable BS-021920ZMA
...
14
PIN, COTTER, 3/32X.75 BS-703312
...
15
Bracket, Support BS-091713E701
...
16
Latch, Park Brake BS-917122
...
17
Spring, Brake Extension BS-165X82MA
...
18
Washer BS-17X472
...
19
Bracket Assembly, Idler BS-092737 Z
...
20
Ring, Retainer BS-0011X7MA
...
21
Bolt, Shoulder BS-009X39MA
...
22
Spring, Drive Extension BS-165X76
...
23
Pulley, Motion Drive BS-091807
...
24
Pulley BS-421409MA
...
25
Belt, Motion Drive BS-037X61AMA
...
26
Knob, Shift Lever BS-091995
...
27
Lever, Shift BS-091805 Z
...
28
Yoke, Shift BS-091806 Z
...
29
Washer BS-17X148MA
...
30
Plate, Belt Guide BS-092694E701MA
...
31
Bolt, Hex BS-01X145MA
...
32
Lockwasher BS-018X32MA
...
33
Washer BS-17X180MA
...
35
NUT, HEX FLNG,5/16-18 BS-704067
...
36
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
37
Support, Transaxle BS-91804E701
...
38
Screw BS-26X216MA
...
39
Key, Square BS-021553MA
...
40
Washer BS-17X160MA
...
41
Spacer, Transaxle BS-087X99 Z
...
42
Tire * BS-091923MA
...
--
Tube BS-407049MA
...
43
Wheel & Tire Assembly BS-0 92288601
...
44
VALVE STM&CP,TR41 SE BS-024373MA
...
45
Washer BS-17X115MA
...
46
RING, E .750D .050T BS-0011X3MA
...
47
Washer BS-17X1462
...
48
WASHER,FLAT .33 1. 16 BS-017X45MA
...
49
Hub Cap (Optional) BS-024582MA
...
50
WASHER BS-703128
...
51
Guide, Belt BS-020619MA
...
52
Frame Assembly BS-092815E245
...
53
Ring, Tolerance BS-092008
Schematic Image Zoomed
