387003x8A Murray - Lawn Tractor (2004)

Model: 387003x8A

Back To Assemblies

Save Part Not Listed?
product name

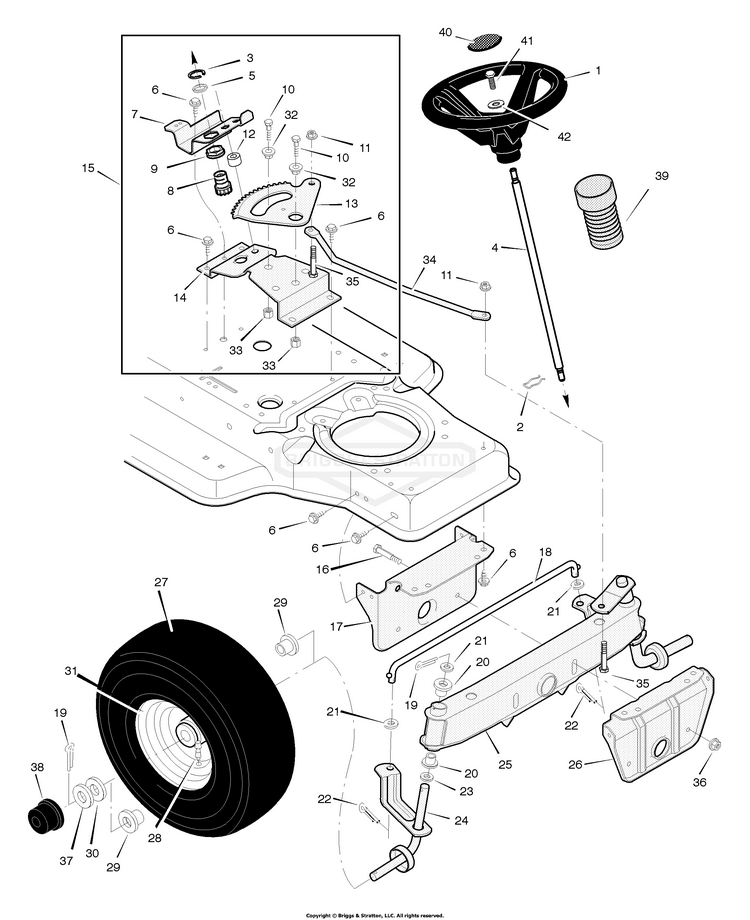

Steering

...
...
1
WHEEL, Steering BS-1687602YP
...
2
Pin, Retainer BS-094131MA
...
3
Ring, E BS-011X28
...
4
Post, Steering BS-1001705MA
...
5
WASHER, 1-1.3 16G FLT BS-17X118
...
6
Screw BS-26X249MA
...
7
Bracket, Sector BS-1001704E701
...
8
Gear, Pinion BS-1401099MA
...
9
Bearing BS-1401098MA
...
10
BOLT BS-5025011X8FS
...
11
NUT, CNTR LCK, 3/8-16 BS-703893
...
12
Spacer BS-092564MA
...
13
Gear, Sector BS-1001708E701
...
14
Bracket, Sector BS-091708E701MA
...
15
Kit, Steering Gear BS-1001710MA
...
16
Bolt, Hex BS-01X146MA
...
17
Support, Rear Axle BS-092529E701
...
18
Rod, Tie BS-090038E701
...
19
Pin, Cotter BS-030X49MA
...
20
Bearing BS-092527MA
...
21
Washer BS-017X57MA
...
22
PIN, COTTER, 3/32X.75 BS-703312
...
23
WASHER.76-1.2 13G FL BS-17X113MA
...
24
Spindle Assembly, Right BS-091828E701MA
...
25
Spindle Assembly, Axle & Left BS-092518E701MA
...
26
Support, Front Axle BS-092528E701
...
27
Tire * BS-091912MA
...
--
Tube BS-407047MA
...
28
VALVE STM&CP,TR41 SE BS-024373MA
...
29
Bearing, Wheel BS-091334
...
30
Washer BS-17X195MA
...
31
Wheel & Tire Assembly BS-094578601
...
32
Bearing BS-092097MA
...
33
Locknut, Flange BS-15X113MA
...
34
Link, Drag BS-1001649E701MA
...
35
CAPSCREW,3/8-16X1.5 BS-703406
...
36
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
37
Washer BS-17X192MA
...
39
Bellows BS-092059MA
...
38
HUB CAP BS-094618MA
...
40
Cap, Steering Wheel BS-711326MA
...
41
Screw, Hex BS-0025X3MA
...
42
WASHER, 5/16 x 1-1/4 OD BS-1933468SM
