387003x8A Murray - Lawn Tractor (2004)

Model: 387003x8A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

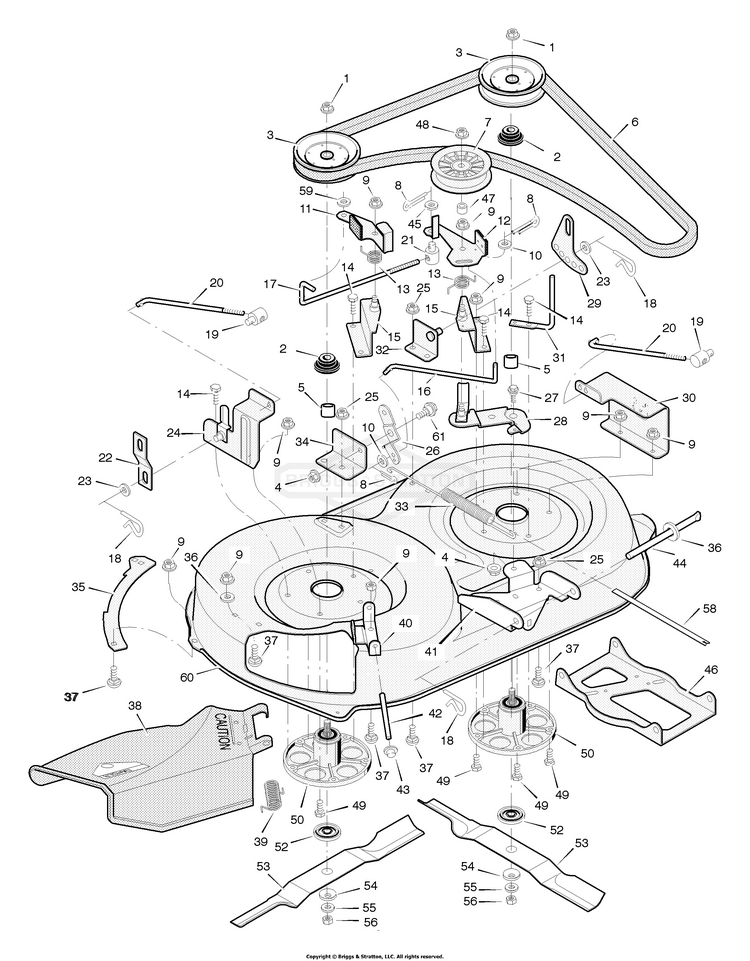

Mower Housing

...
...
1
Nut, Hex BS-15X140MA
...
2
Spacer BS-1001197MA
...
3
Pulley, Jackshaft BS-092852 Z
...
4
NUT, CNTR LCK, 3/8-16 BS-703893
...
5
Spacer BS-1001703MA
...
6
Belt, Blade Drive BS-037X63MA
...
7
Pulley, Idler BS-690387MA
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
NUT, HEX FLNG,5/16-18 BS-704067
...
10
WASHER, FLAT 5/16 BS-704015
...
11
Brake Assembly, Right BS-092186E701
...
12
Brake Assembly, Left BS-092187E701
...
13
Spring, Torsion BS-166X27MA
...
14
SCREW-HEX WSHR HD TAP BS-2828635SM
...
15
Bracket Assembly, Brake BS-092072E701
...
16
Rod, Brake BS-091745 Z
...
17
Rod, Cross Link BS-092183 Z
...
18
PIN, 3/32 X 1.6 BS-703300
...
19
Nut, Adjustable BS-092131
...
20
Rod, Adjuster BS-091748 Z
...
21
Nut, Adjustable BS-021920ZMA
...
22
Link, Suspension BS-092064E701MA
...
23
Washer BS-17X103MA
...
24
Bracket Assembly, Right Lifter BS-092194E701MA
...
25
NUT, 5/16-18, GR5 BS-703409
...
26
Crank, Bell BS-092033E701
...
27
Bolt, Shoulder BS-009X39MA
...
28
Arm Assembly, Idler BS-092032E701
...
29
Plate, Adjuster BS-091741E701MA
...
30
Cover, Pulley BS-091792E701MA
...
31
Guide, Belt BS-091797 Z
...
32
Bracket Assembly, Left Lifter BS-091813E701
...
33
Spring, Extension BS-165X72MA
...
34
Bracket, Pivot BS-091743E701
...
35
Plate BS-091770E701
...
36
Washer BS-017X 103
...
37
BOLT BS-703159
...
38
Deflector Assembly, Chute BS-094707MA
...
39
Spring, Torsion BS-0166X4MA
...
40
BRACKET - HINGE BS-094956E701MA
...
41
Bracket, Front Hanger BS-091793E701MA
...
42
ROD, Deflector BS-094957ZMA
...
43
PUSHNUT, 3/8 BS-703948
...
44
Rod, Hanger BS-091739 Z
...
45
Washer BS-17X124MA
...
46
Hanger, Front BS-092119E701
...
47
Spacer BS-690369MA
...
48
NUT, CNTR LCK, 3/8-16 BS-703893
...
49
BOLT BS-5025011X8FS
...
50
Housing, Jackshaft BS-1001709MA
...
52
Adapter, Blade BS-690411MA
...
53
Blade, 38" (2 required) BS-095104E701MA
...
54
Washer, Belleville BS-17X166MA
...
55
Washer BS-17X165MA
...
56
Nut, Hex BS-15X100MA
...
58
Indicator, Plastic BS-092163MA
...
59
Washer BS-017X48MA
...
60
Housing, Blade (38") BS-091906E701MA
...
61
BOLT, 3/8-16 X .925 BS-704206
...
1-61
Complete Mower Housing Assembly BS-403228MA
