387000x00A Murray - Lawn Tractor (2003)

Model: 387000x00A

Back To Assemblies

Save Part Not Listed?
product name

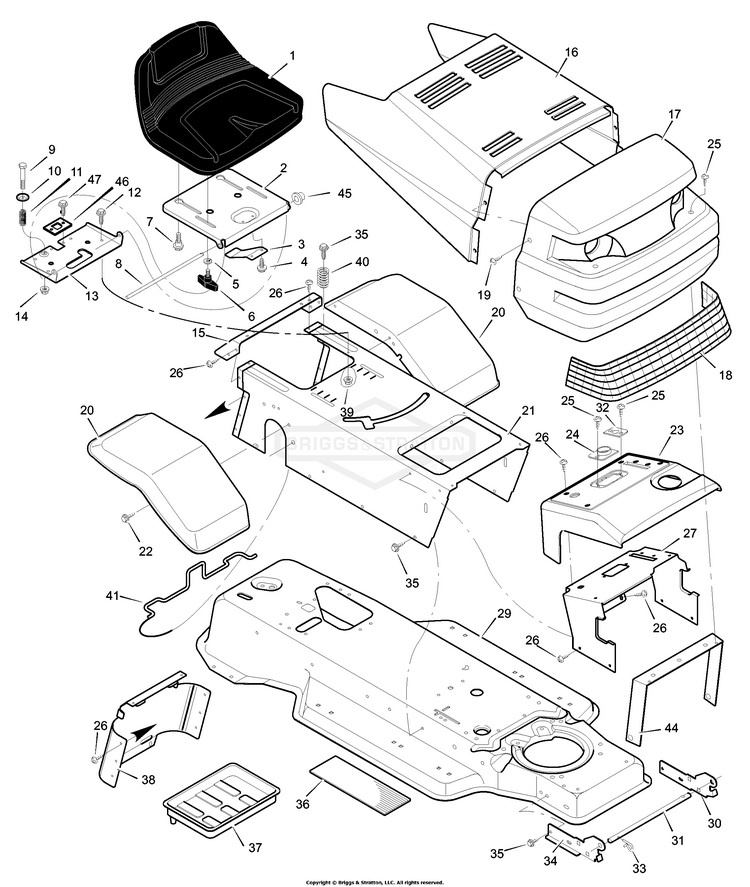

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
SUPPORT, SEAT BS-7300875BMYP
...
3
Spring, Seat BS-094057MA
...
4
Screw BS-26X229MA
...
5
Washer BS-017X49
...
6
Bolt, Wing BS-1001054MA
...
7
Bolt BS-009X56MA
...
8
Rod, Pivot BS-094156ZMA
...
9
Bolt, Shoulder BS-009X55MA
...
10
Washer BS-094155 Z
...
11
SPRING, Compression BS-164X31MA
...
12
CAPSCREW,5/16-18X.625 BS-703822
...
13
Bracket, Pivot BS-1001648E701MA
...
14
NUT .25-20 FLANGELOCK BS-015X89MA
...
15
Fender, Apron BS-091724E245MA
...
16
Hood BS-092333E245MA
...
17
Grille Assembly (includes Lens) BS-092350MA
...
18
Lens BS-092344MA
...
19
Screw BS-009X47MA
...
20
Fender BS-092328E245
...
21
Console Assembly BS-1001646E245
...
22
SCREW.25-20 S-T BS-26X263MA
...
23
Dash Panel BS-070138MA
...
24
Bearing, Steering BS-092399
...
25
Screw BS-26X239MA
...
26
SCREW, Thread Forming BS-26X270MA
...
27
Support, Dash BS-092331E700
...
29
Frame Assembly BS-092815E245
...
30
Bracket, Left Grille BS-092347E701MA
...
31
Rod, Pivot BS-092332 Z
...
32
Bearing BS-092398
...
33
PIN, 3/32 X 1.6 BS-703300
...
34
Bracket, Right Grille BS-092346E701MA
...
35
Screw BS-26X249MA
...
36
Mat BS-094107
...
37
Tray, Battery BS-091895MA
...
38
Cap, Console BS-092443E245
...
39
NUT, HEX, 5/16-18 BS-703902
...
40
Spring, Compression BS-164X30MA
...
41
Clamp, Battery BS-092725 Z
...
44
Brace, Grille BS-092448
...
57
Pan, Seat (with foam) BS-92357
...
45
PUSHNUT, 3/8 BS-703948
...
46
Plate Assembly, Switch BS-1001650 Z
...
47
Screw BS-26X208MA
...
--
Instruction Book & Parts List BS-F-030762L
