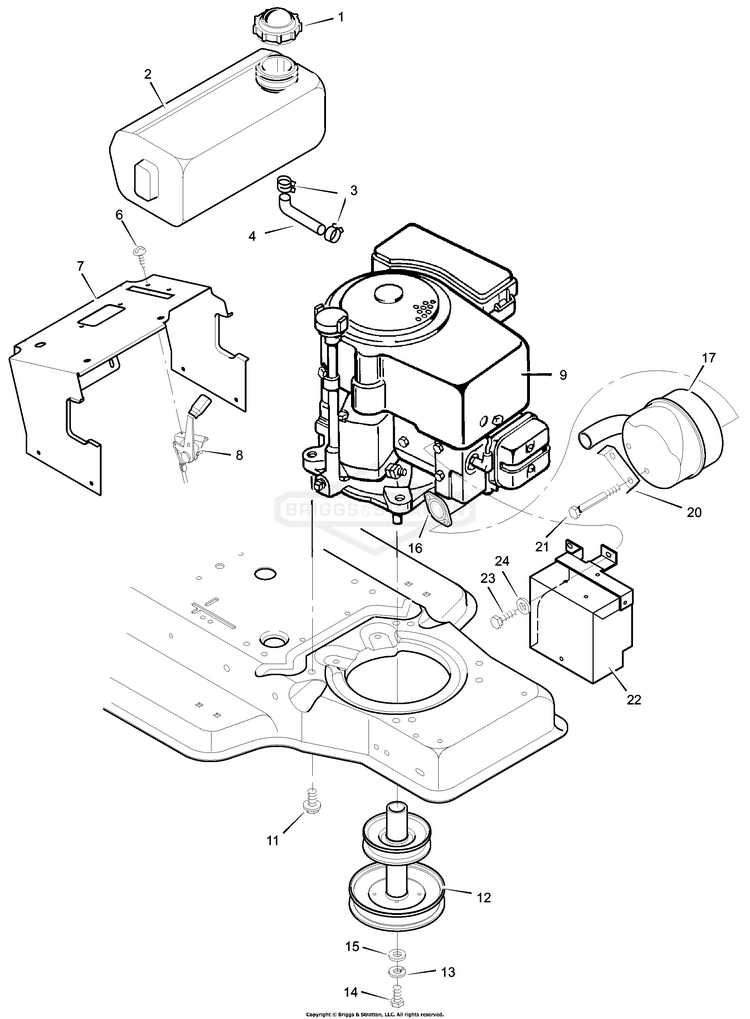

387000x00A Murray - Lawn Tractor (2003)

Model: 387000x00A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
Fuel Tank * BS-690281
...
3
CLAMP, Hose (Included with Ref. No. 2) BS-791850
...
4
Fuel Line (Included with Ref. No. 2) BS-023715
...
6
Screw BS-26X201MA
...
7
Support, Dash BS-092331E701
...
8
Throttle Control BS-092371MA
...
11
SCREW-HEX WSHR HD TAP BS-2828635SM
...
12
STK PULLEY 38-40" PAN BS-690442ZMA
...
13
Lockwasher BS-019X35MA
...
14
Bolt, Hex BS-01X140MA
...
15
WASHER.46.97.25 FLAT BS-17X170MA
...
16
GASKET, Exhaust BS-692236
...
17
Muffler BS-094120MA
...
20
LOCK-SCREW 223016 BS-092378MA
...
21
Bolt BS-01X134MA
...
22
Shield, Heat BS-690310
...
23
Bolt BS-001X38MA
...
24
Washer BS-018X32MA
