386777-0123-E1 Briggs and Stratton Engine

Model: 386777-0123-E1

Back To Assemblies

Save Part Not Listed?
product name

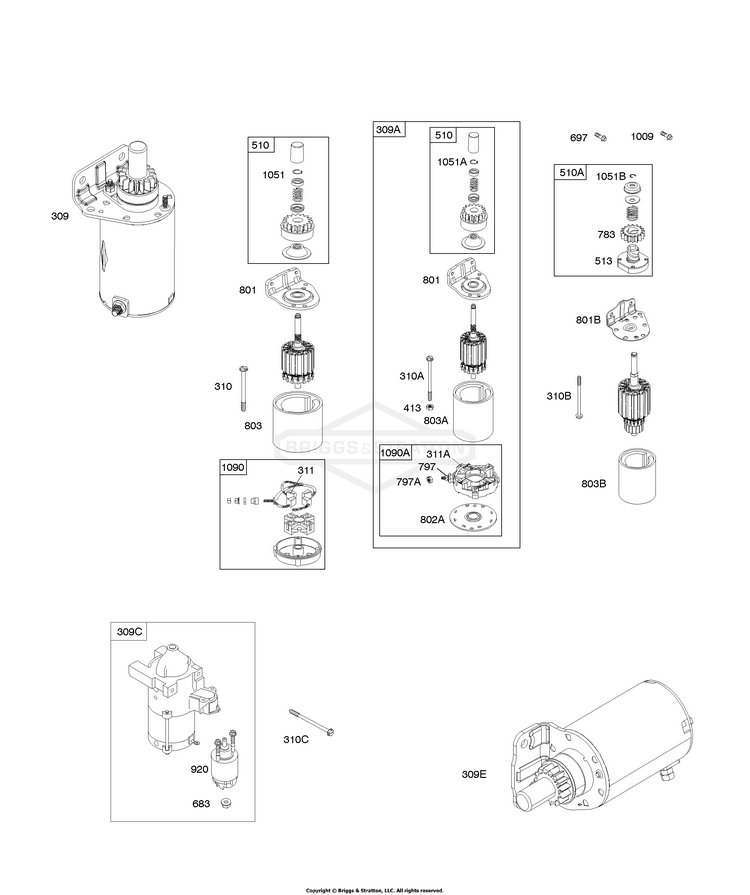

Electric Starter

...
...
309
MOTOR, STARTER (Steel Ring Gear) BS-84013067
...
309E
MOTOR, STARTER Used After Code Date 11011400 BS-84013068
...
310A
SCREW (Starter Motor) BS-690323
...
310C
SCREW (Starter Motor) BS-806474
...
311A
SET, Brush BS-497608
...
413
NUT (Starter Motor) BS-693587
...
510
DRIVE, Starter (Steel Pinion Gear) Used Before Code Date 14052800 BS-496881
...
510A
MOTOR, STARTER BS-84013068
...
513
CLUTCH, Drive BS-692024
...
683
NUT (Starter Solenoid) (1/4-20) BS-691029
...
683
NUT (Starter Solenoid) (M6) BS-845758
...
697
SCREW (Starter Motor) (Drive Cap) BS-692062
...
783
GEAR-PINION BS-695708
...
797
NUT (Brush Retainer) BS-693167
...
797A
NUT (Brush Retainer) BS-691029
...
801B
CAP, Drive BS-691283
...
802A
CAP, End BS-691286
...
1009
SCREW (USE REFERENCE 697 ONLY) (M8x20mm) BS-691902
...
1051
RING, Retaining Used Before Code Date 14052800 BS-690736
...
1051A
RING, Retaining BS-691124
...
1051B
RING, Retaining BS-691265
...
1090
RETAINER, Brush Used Before Code Date 14052800 BS-496813
...
1090A
RETAINER, Brush BS-691293
