38602x70J Murray - Lawn Tractor (1996)

Model: 38602x70J

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

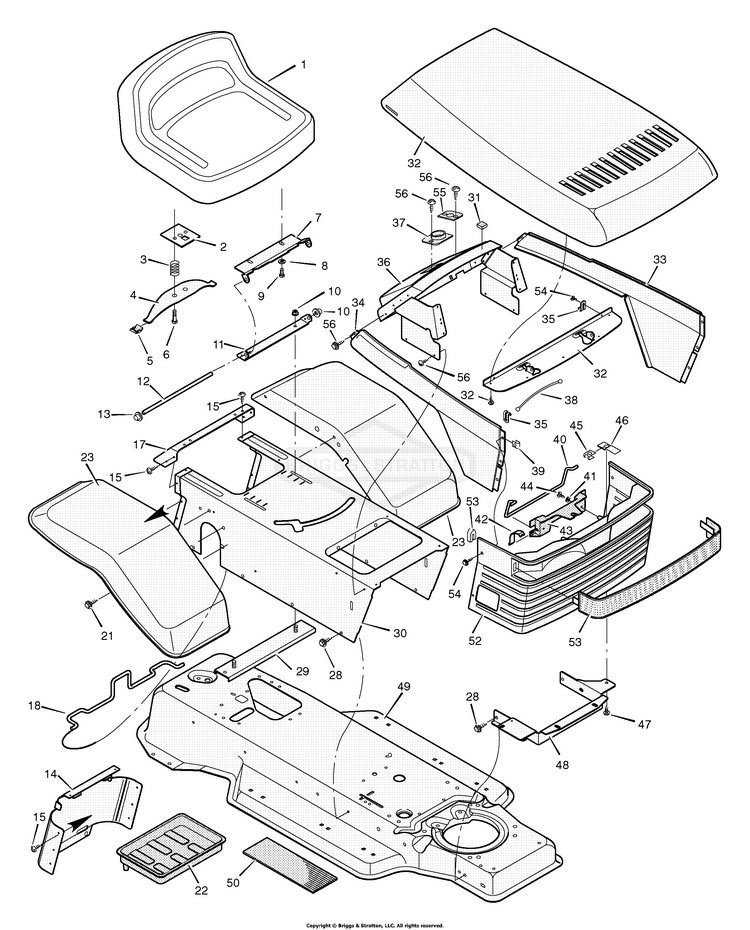

Chassis & Hood

...
...
1
Seat BS-091965
...
2
Plate Assembly, Switch BS-091963
...
3
Spring, Compression BS-164X26MA
...
4
Spring, Seat BS-091964MA
...
5
Glide, Spring BS-091822MA
...
6
Bolt, Shoulder BS-009X38MA
...
7
Support, Seat BS-92334E701
...
8
Lockwasher BS-018X16MA
...
9
CAPSCREW,5/16-18X.625 BS-703822
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Bracket, Pivot BS-091729E701
...
12
Rod, Pivot BS-91730E701
...
13
PUSHNUT, 3/8 BS-703948
...
14
Cap, Console BS-092443E245
...
15
SCREW, Thread Forming BS-26X270MA
...
17
Fender, Apron BS-91724E701
...
18
Clamp, Battery BS-092725
...
21
SCREW.25-20 S-T BS-26X263MA
...
22
Tray, Battery BS-091895MA
...
23
Fender BS-91715E245
...
28
Screw BS-26X249MA
...
29
Channel Assembly BS-091857E701
...
30
Console Assembly BS-092727E245
...
31
Trim, Edge BS-021765
...
32
Hood Assembly BS-092089E245
...
33
Panel, Left BS-93133E245
...
34
Panel, Right BS-91778E245
...
35
Clip, Cable BS-092013
...
36
Dash Assembly BS-93174E245
...
37
Bearing, Steering BS-093135MA
...
38
Cable BS-092087
...
39
U- Fastener BS-028X59MA
...
40
Rod, Hinge BS-091980 Z
...
41
Washer BS-17X382
...
42
Spring, Hood BS-091979MA
...
43
Bracket, Hood Mount BS-091978
...
44
Screw BS-26X253MA
...
45
Nut, Speed BS-028X61MA
...
46
Shield, Heat BS-092005 Z
...
47
Screw BS-26X252MA
...
48
Support, Grille BS-91723E701
...
49
Frame Assembly BS-092815E245
...
50
Mat BS-091900MA
...
52
Grille BS-092284MA
...
53
Lens (Included with Ref. No. 52) BS-091850
...
54
Screw BS-26X220MA
...
55
Bearing BS-093155
...
56
Screw BS-26X238MA
...
--
Instruction Book (English) BS-F-96891
...
--
Repair Parts Book BS-F-96892
...
--
Decal, Left Hood BS-44X2157
...
--
Decal, Right Hood BS-44X2158
...
--
Decal, Shift Pattern BS-44X1459
