product name

38560x181B Murray - Lawn Tractor (2001)

Model: 38560x181B

Back To Assemblies

Save Part Not Listed?
product name

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line BS-023717
...
5
CLAMP, Hose BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E700
...
8
Throttle Control BS-091989
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
16
Muffler BS-094120MA
...
17
GASKET, Exhaust BS-692236
...
18
LOCK-SCREW 223016 BS-092378MA
...
19
Bolt BS-01X134MA
...
21
Guide, Belt BS-094384MA
...
22
NUT, 5/16-18, GR5 BS-703409
...
23
Guide, Belt BS-094066MA
...
26
Screw BS-26X253MA

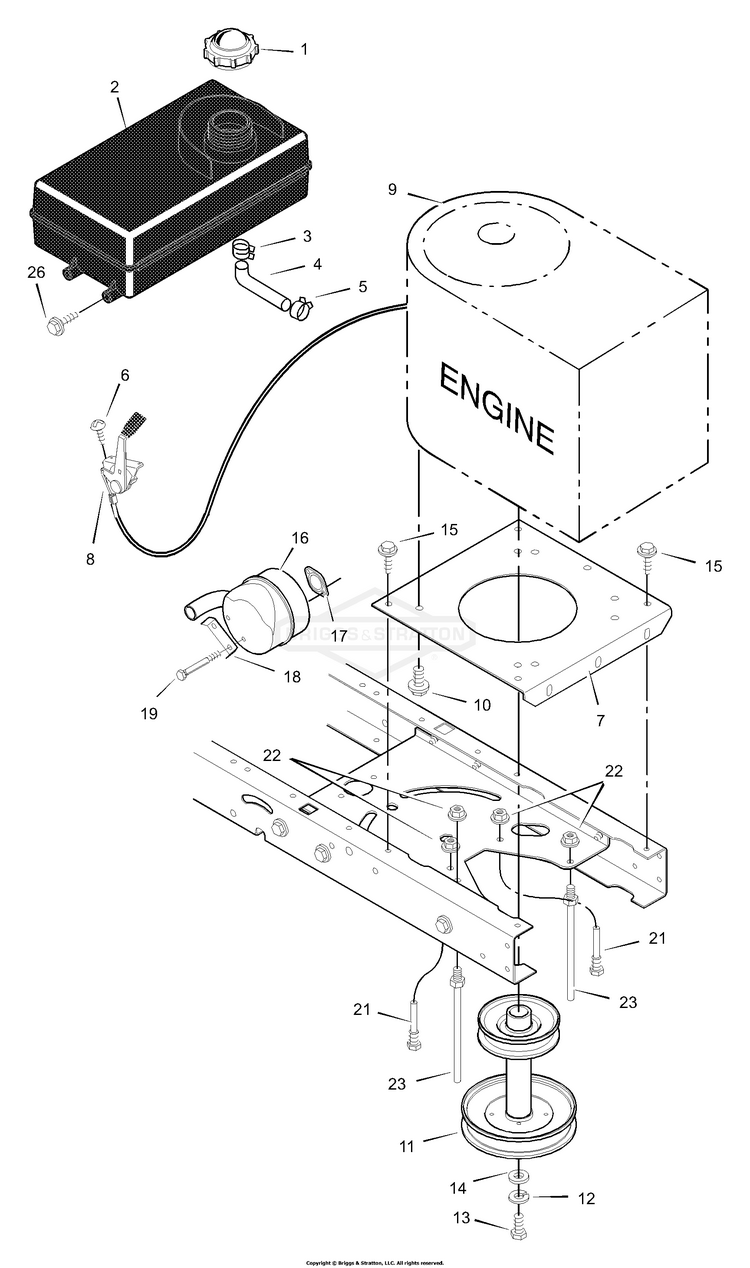

Schematic Image Zoomed
