38519x58B Murray - Lawn Tractor (2000)

Model: 38519x58B

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

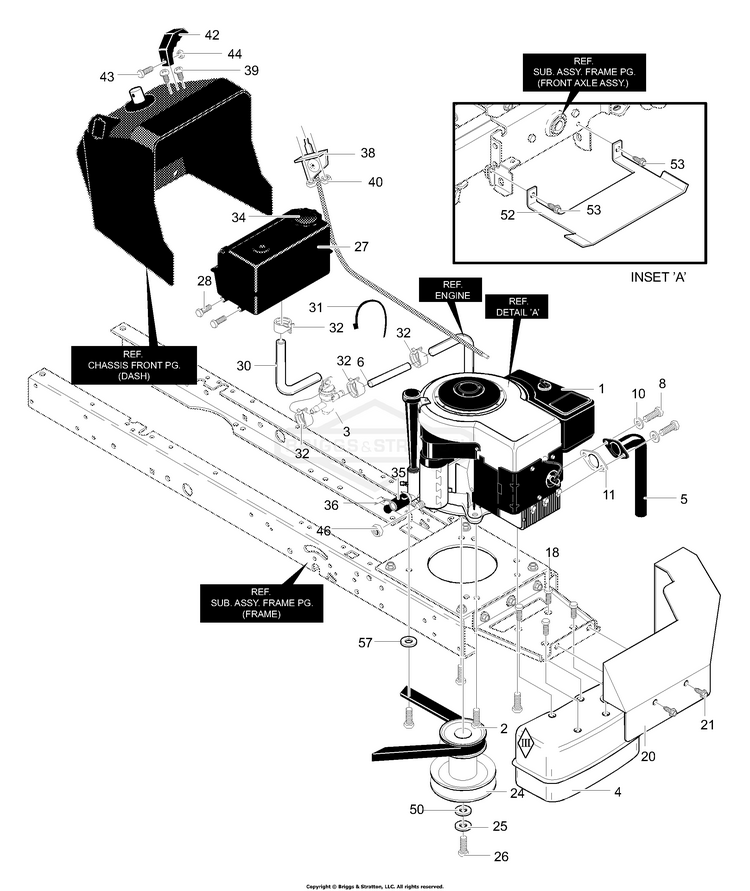

Engine And Control Assembly

...
...
--
Clip, Speed BS-94894
...
2
SCREW-HEX WSHR HD TAP BS-2828635SM
...
3
Fuel Shut-off Valve BS-690494
...
4
SCREW BS-690859
...
5
Exhaust Pipe BS-94900
...
6
Gas Line Tubing 3.250 Inches BS-309306
...
8
Screw, 5/16-18 x 0.75 BS-313676
...
10
Washer, Hvsptlk BS-313679
...
11
GASKET, Exhaust BS-692236
...
18
SCREW.25-20 S-T BS-26X263MA
...
20
Heat Shield Assembly BS-94904-821
...
21
Screw, 5/16-18 x 0.75 BS-711606MA
...
24
BRACKET-OIL FILL BS-690448
...
25
Washer, Regsptlk BS-120383
...
26
Screw, 7/16-20 BS-01X169
...
27
Tank, Fuel 1.5 Gal. BS-309853MA
...
28
Screw, 15TPIX BS-711681
...
30
Gas line 8 Inches BS-48252
...
31
Cable Tie BS-57444
...
32
Clamp, Fuel Clamp BS-336890
...
34
Gas Cap BS-12501MA
...
35
Oil Drain Valve Assembly BS-325547MA
...
36
Cap, Oil Drain Valve BS-327422
...
38
Throttle Control BS-95370MA
...
39
Screw, 10-24x.63 BS-711755MA
...
40
Nut, #10-24 BS-711754
...
42
STUD BS-691695
...
43
Screw, #8-32 BS-711750
...
44
Nut, #8-32 BS-711748
...
46
Nut, 1/4-20 BS-711601
...
50
WASHER.46.97.25 FLAT BS-17X170MA
...
52
Shield, Anti-Dehydration BS-95192-821
...
53
Screw, 5/16-18 x 0.75 BS-711606MA
...
57
Washer, Exlk BS-711668
