38519x58B Murray - Lawn Tractor (2000)

Model: 38519x58B

Save Part Not Listed?

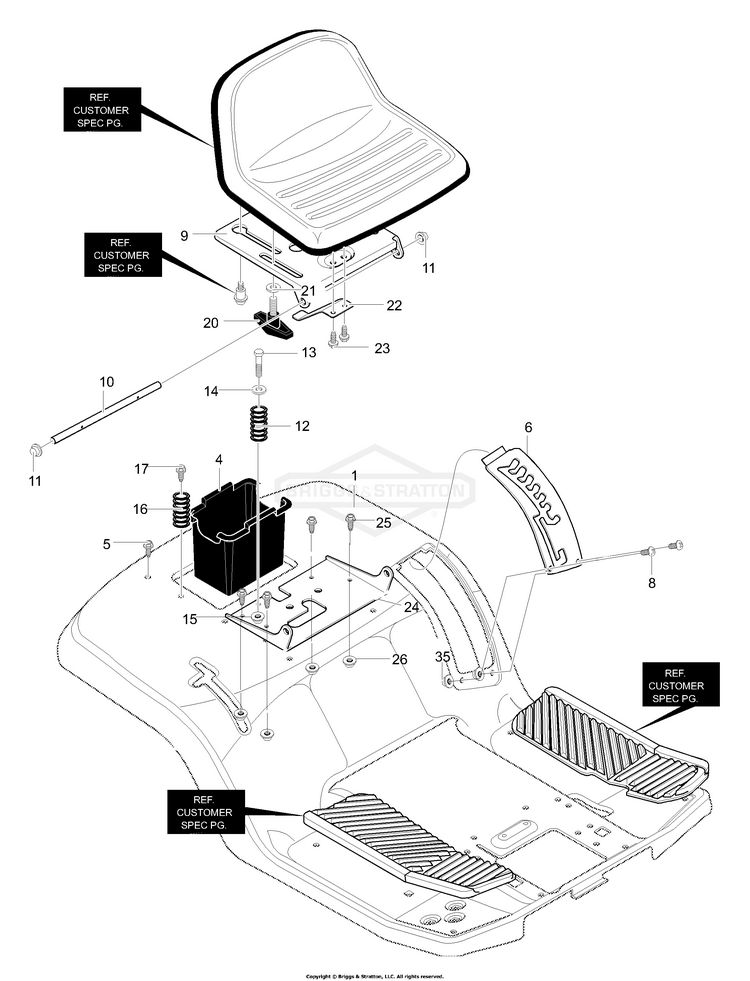

Rear Chassis Assembly

Seat Deck, Small BS-95249-898

Battery Container BS-690424MA

SCREW.25-20 S-T BS-26X263MA

Plate, Lift Detent BS-94829-821

Screw, 10-24x.500 BS-711629

Seat Support BS-94154-898

Hinge Seat Pivot BS-95294

Push Cap Nut BS-711627MA

Comp. Spring BS-710136-821

Shoulder Bolt, 1/4-20 BS-711610

Washer Cup BS-95293

Nut, 1/4-20 BS-711643

Comp. Spring BS-710109-821

Screw, 5/16-18 x 0.75 BS-711606MA

Wing Bolt 5/16-18x.50 BS-711747MA

Flat washer BS-711644MA

Spring - Leaf BS-094057MA

Screw, 1/4-20x.50 BS-711592

Pivot SEat Bracket BS-94153-898

Screw, 5/16-18 x 0.75 BS-711606MA

Nut, 5/16-18 Wdfllk BS-711634MA

Nut, #10-24 Locknut BS-711842

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
