38519x58B Murray - Lawn Tractor (2000)

Model: 38519x58B

Back To Assemblies

Save Part Not Listed?
product name

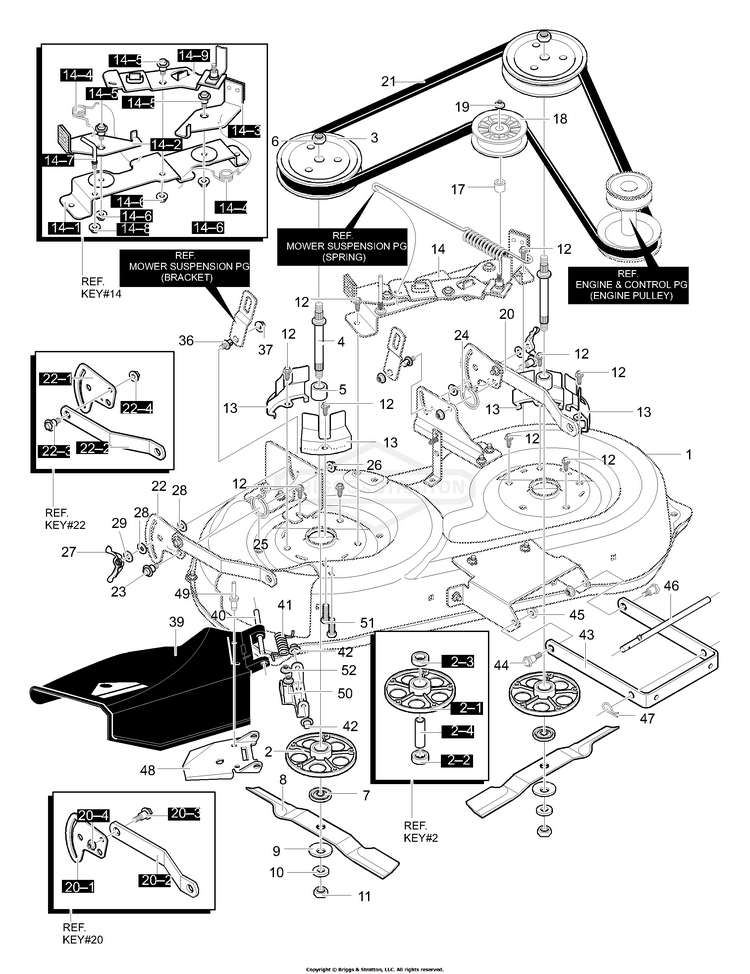

Deck Assembly (part 1)

...
...
1
Mower Deck Assembly BS-94061-821
...
2
FLYWHEEL BS-693557
...
2-1
KEY, Woodruff BS-690979
...
2-2
Bearing, Upper BS-092281MA
...
2-3
Bearing, Lower BS-092282MA
...
2-4
Spacer BS-090904MA
...
3
Pulley, Quill BS-690174
...
4
Jackshaft BS-094129
...
5
Spacer BS-094130MA
...
6
Nut, 9/16-18 BS-711626
...
7
Adapter, Deck/Blade BS-092466MA
...
8
SCREW BS-690953
...
9
Washer BS-17X166MA
...
10
Washer BS-17X165MA
...
11
Nut, .56-18 Regular BS-15X100MA
...
12
SCREW-HEX WSHR HD TAP BS-2828635SM
...
13
Cover, Segment Belt Guide BS-94051-821
...
14
Asm. Brake with Support BS-94691-821
...
14-1
Bracket, Brake Mtg BS-94059
...
14-2
SPACER, Fuel Tank BS-691633
...
14-3
Assy, Brake LH BS-94048
...
14-4
Torsion Spring BS-710227
...
14-5
BOOT-SPARK PLUG BS-710634
...
14-6
Nut, 3/8-16 Mack BS-710140
...
14-7
Screw - Guide BS-094781MA
...
14-8
Nut, 5/16-18 Hexwdfllk Whiz BS-710204
...
14-9
Assy., Idler Arm BS-94177
...
17
Spacer, 1/2 to 17MM BS-690369MA
...
18
Idler Pulley BS-690451
...
19
Nut, 3/8-16 Hwdfllk Mack BS-711920MA
...
20
Asm., Plate Rear Sus. Brkt LH BS-690159-821
...
20-1
SCREW BS-690837
...
20-2
Suspension Bracket Rear BS-94055
...
20-3
Bolt, Shoulder BS-710095
...
20-4
Nut, 3/8-16 BS-710140
...
21
Belt, Barback Cl 84.24 BS-710193
...
22
Assy, Plate,Rear Sus Bkt RH BS-690158-821
...
22-1
SCREW BS-690837
...
22-2
Suspension Bracket Rear BS-94055
...
22-3
Bolt, Shoulder BS-710095
...
22-4
Nut, 3/8-16 BS-710140
...
23
Bolt, Shoulder BS-711611
...
24
Spring, Torsion LH BS-710113
...
25
Spring, Torsion RH BS-710112
...
26
Nut, 3/8-16 BS-711622
...
27
Wingnut, 5/16-18 BS-711600
...
28
FRICTION PAD BS-094137MA
...
29
WASHER,FLAT .33 1. 16 BS-017X45MA
...
36
Pin, Hanger BS-711595
...
37
Nut, 3/8-16 BS-711622
...
39
Deflector Chute BS-094687MA
...
40
ROD, Deflector BS-094957ZMA
...
41
Spring, Torsion BS-710194
...
42
Nut, Push Cap BS-711627MA
...
43
Bracket, Frt Suspension BS-94058-821
...
44
Shoulder Bolt BS-711611
...
45
Nut, 3/8-16 Wdfllk Mack BS-711622
...
46
Rod, Hanger BS-95295
...
47
Hair Pin BS-711676
...
48
Deflector Support BS-94686-821
...
49
Rivet- Semi BS-711624MA
...
50
Bracket, Chute Attach BS-94956-821
...
51
Carr. Bolt, 5/16-18x.63 BS-711661
...
52
Nut, 5/16-18 Wdfllk BS-711634MA
