38519x58B Murray - Lawn Tractor (2000)

Model: 38519x58B

Back To Assemblies

Save Part Not Listed?
product name

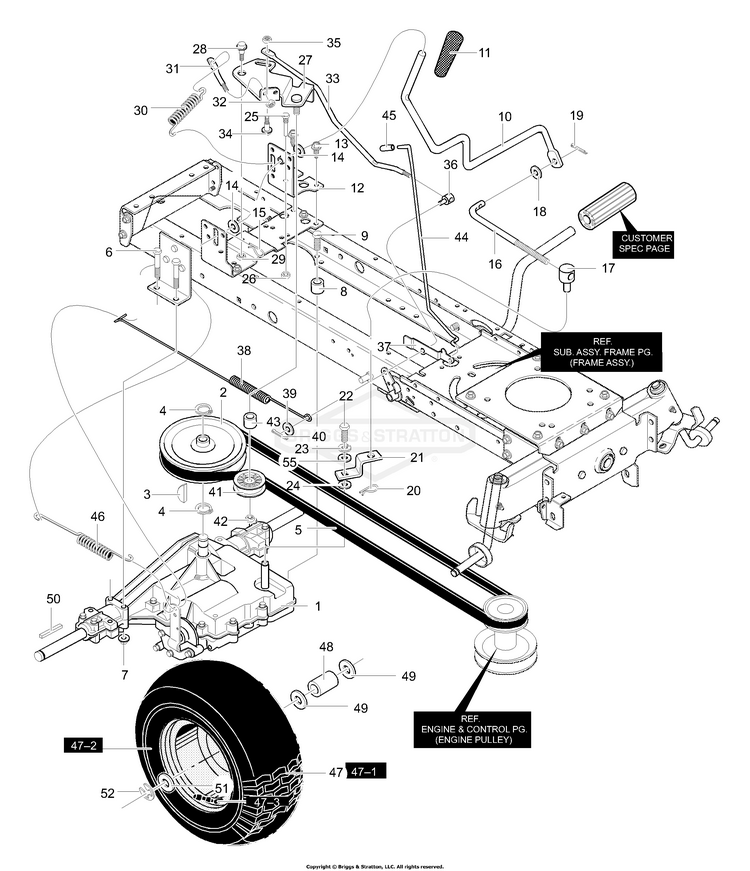

Motion Drive

...
...
2
Pulley, 8.81 Dia BS-095094MA
...
3
Woodruff Key #9 BS-020697MA
...
4
Ring-Snap BS-0011X7MA
...
5
Belt, V BS-710341
...
6
Screw, 5/16-18 x 2.50 BS-711669
...
7
Nut, 5/16-18 Wdfllk BS-711634MA
...
8
Spacer, Transaxle BS-094132MA
...
9
Screw, 5/16-18 x 2.00 BS-711605
...
10
Shifter Lever BS-690157
...
11
SCREW BS-691693
...
12
Bracket, Shift Pivot BS-94034-821
...
13
Screw, 5/16-18 x 0.75 BS-711606MA
...
14
Flat washer BS-711615MA
...
15
Hair Pin BS-711676
...
16
Link, Shift BS-95289
...
17
Adjusting Nut BS-711591
...
18
Flat washer BS-711623
...
19
Cotter Pin BS-071081
...
20
PIN, 3/32 X 1.6 BS-703300
...
21
Yoke-Shift BS-95286
...
22
Screw, 1/4-28x.75 BS-01X145MA
...
23
Washer BS-710249
...
24
Washer, .38 SQ BS-17X148MA
...
25
Screw Guide BS-711745
...
26
Nut, 5/16-18 Hexwdfllk BS-710026
...
27
ARM, Idler BS-690173ZMA
...
28
Bolt, HHSH 3/8-16 BS-711613MA
...
29
Nut, 3/8-16 Hwdfllk Mack BS-711622
...
30
SPRING, Extension BS-ORG-710334
...
31
Stud-Spring BS-95288
...
32
Nut, 5/16-18 Hexwdfllk Whiz BS-710026
...
33
Rod, Clutch Switch BS-95287
...
34
Bolt, HHSH 1/4-20x.5 BS-711646
...
35
Nut, 1/4-20 Wdfllk BS-711643
...
36
Nut, Adjusting BS-711596
...
37
Latch, Park Brake BS-95290
...
38
SPRING, Extension BS-ORG-710333
...
39
Flat washer BS-711623
...
40
Cotter Pin BS-071081
...
41
Idler Pulley BS-690409MA
...
42
Nut, 3/8-16 Hwdfllk Mack BS-711920MA
...
43
Spacer 1/2 to 17MM BS-690369MA
...
44
Park Brake Rod BS-690046MA
...
45
Grip BS-091079MA
...
46
Spring, Tension BS-710353
...
47
Tire & Rim BS-338169
...
47-1
Valve Stem BS-338512
...
47-2
Rim BS-338524
...
47-3
Tire BS-338548
...
48
Spacer .87x1.78 BS-95274MA
...
49
Flat washer BS-711648MA
...
50
Square Key BS-021553MA
...
51
Flat washer BS-711758
...
52
RING, E .750D .050T BS-0011X3MA
...
55
Flat washer BS-710657
...
--
HUB CAP BS-094618MA
