38516x53A Murray - Lawn Tractor (2000)

Model: 38516x53A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

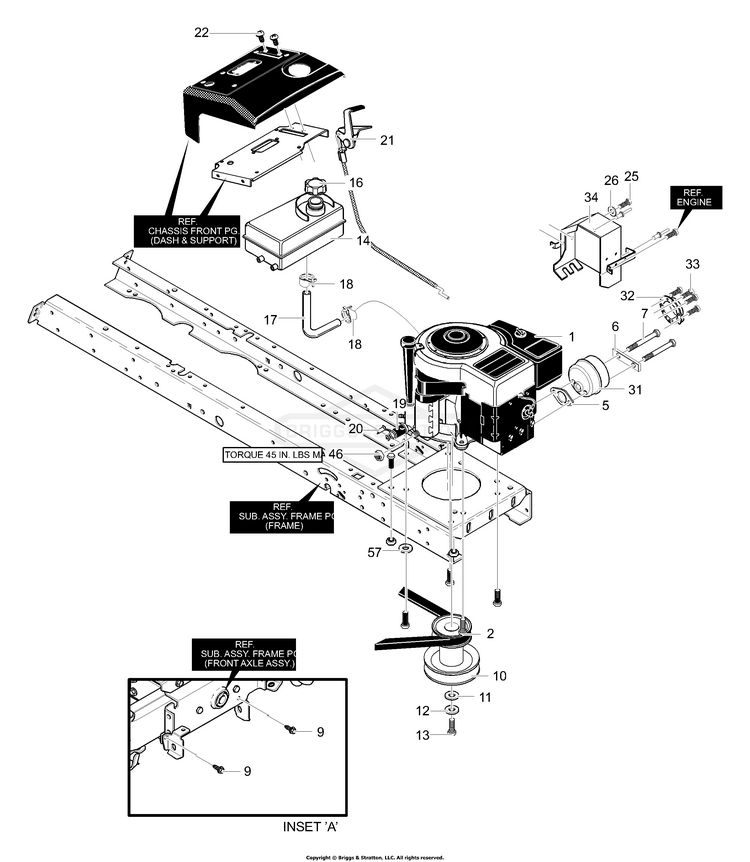

Engine And Control Assembly

...
...
2
SCREW-HEX WSHR HD TAP BS-2828635SM
...
5
GASKET, Exhaust BS-692236
...
6
LOCK-SCREW 223016 BS-092378MA
...
7
SCREW BS-712065
...
9
SCREW BS-711606MA
...
10
BRACKET-OIL FILL BS-690448
...
12
WASHER BS-120383
...
13
BOLT BS-01X169
...
14
TANK, FUEL BS-092342
...
16
FUEL CAP BS-092317MA
...
17
SUSPENSION ARM ASSEMBLY - RH, Complete BS-5047452
...
18
CLAMP, FUEL LINE BS-336890
...
19
OIL DRAIN VALVE ASSEMBLY BS-325547MA
...
20
CAP, OIL DRAIN VALVE BS-327422
...
21
CONTROL, THROTTLE BS-94361
...
22
SCREW BS-711637
...
25
SCREW BS-711592
...
26
WASHER BS-710249
...
31
MUFFLER BS-091271
...
32
DEFLECTOR, EXHAUST BS-23740
...
33
SCREW BS-712070
...
34
NUT BS-690662
...
46
NUT BS-711601
...
56
WASHER.46.97.25 FLAT BS-17X170MA
...
57
WASHER BS-711668
