38516x53A Murray - Lawn Tractor (2000)

Model: 38516x53A

Back To Assemblies

Save Part Not Listed?
product name

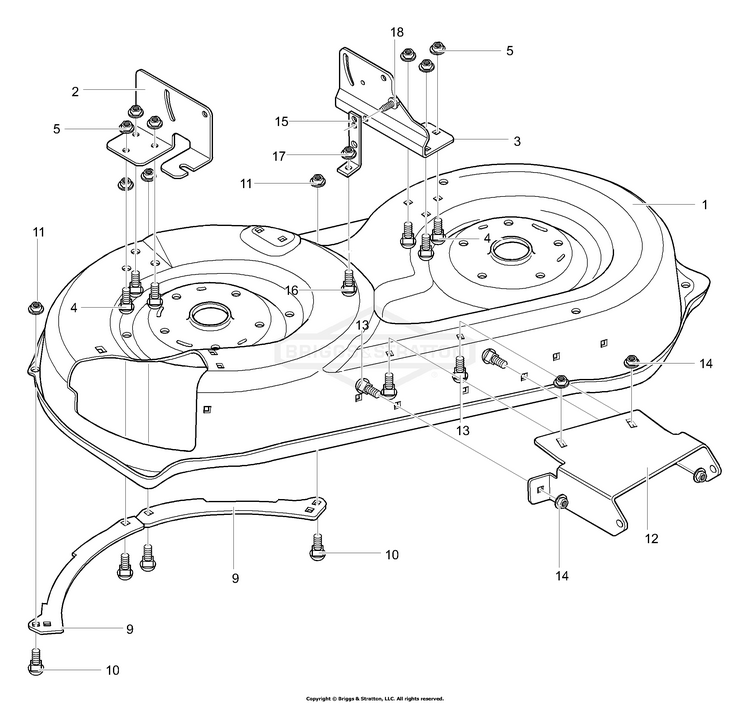

Deck Assembly (part 2)

...
...
1
WASHER BS-691089
...
2
Bracket, Deck Lift RH BS-94052
...
3
SCREW BS-691351
...
4
BOLT BS-703159
...
5
NUT, 5/16-18, GR5 BS-703409
...
9
Plate BS-091770E701MA
...
10
BOLT BS-703159
...
11
NUT, HEX FLNG,5/16-18 BS-704067
...
12
SCREW BS-691692
...
13
BOLT BS-703159
...
14
NUT, 5/16-18, GR5 BS-703409
...
15
SCREW BS-691688
...
16
BOLT BS-703159
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
Screw, .312-18x.75 BS-26X249MA
