38516x53A Murray - Lawn Tractor (2000)

Model: 38516x53A

Back To Assemblies

Save Part Not Listed?
product name

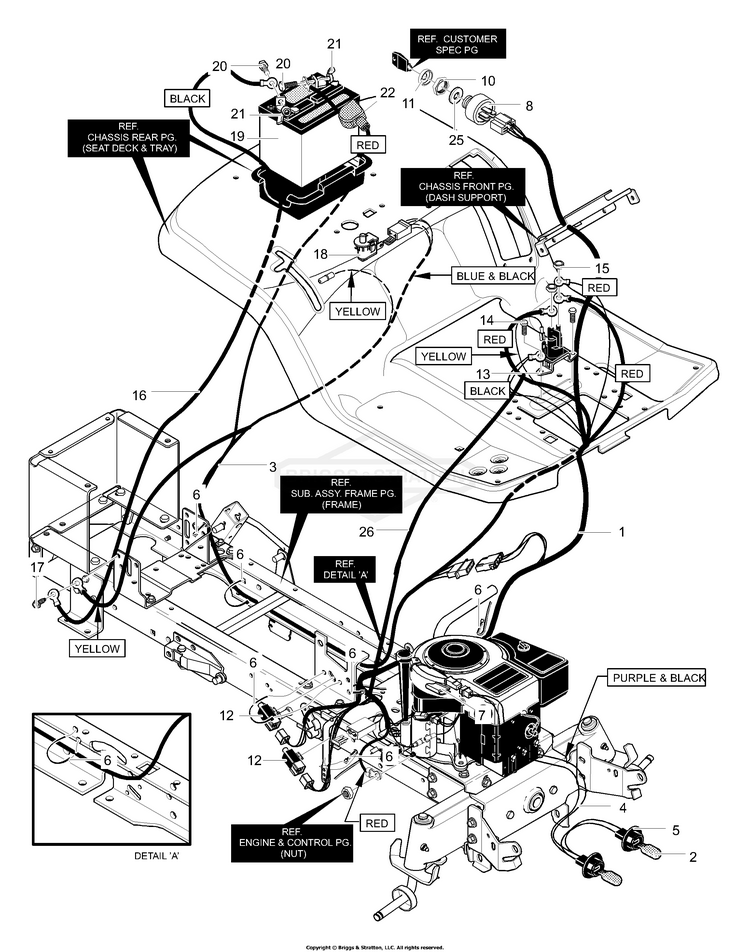

Electrical Assembly

...
...
1
HARNESS RAIL FRAME TW BS-776170MA
...
2
BULB-HEADLIGHT 1 BS-1677371SM
...
3
WIRE HARNESS, REAR BS-340530
...
4
WIRE HARNESS, HEADLIGHTS BS-340513
...
5
SOCKET, LAMP BS-092372
...
6
TIE, CABLE BS-57444
...
6
TIE, CABLE BS-57444
...
7
WIRE CLIP, ADHESIVE BS-055939MA
...
8
SWITCH, IGNITION BS-092377MA
...
10
SET, Washer/Nut BS-847144
...
11
CAP, Switch BS-847150
...
12
SWITCH, LIMIT BS-094136MA
...
13
SOLENOID BS-094613
...
14
SCREW BS-711619
...
15
NUT BS-711632
...
16
WIRE, GROUND BS-710228
...
17
SCREW BS-711760
...
18
SWITCH, SEAT BS-7023354YP
...
19
BATTERY BS-092739
...
20
PIN, HAIR BS-711682
...
21
WINGNUT BS-711636
...
22
BOOT, BATTERY BS-335417
...
25
WASHER, INTERNAL LOCK BS-313683MA
...
26
WIRE, SOLENOID BS-711579
