38516x53A Murray - Lawn Tractor (2000)

Model: 38516x53A

Back To Assemblies

Save Part Not Listed?
product name

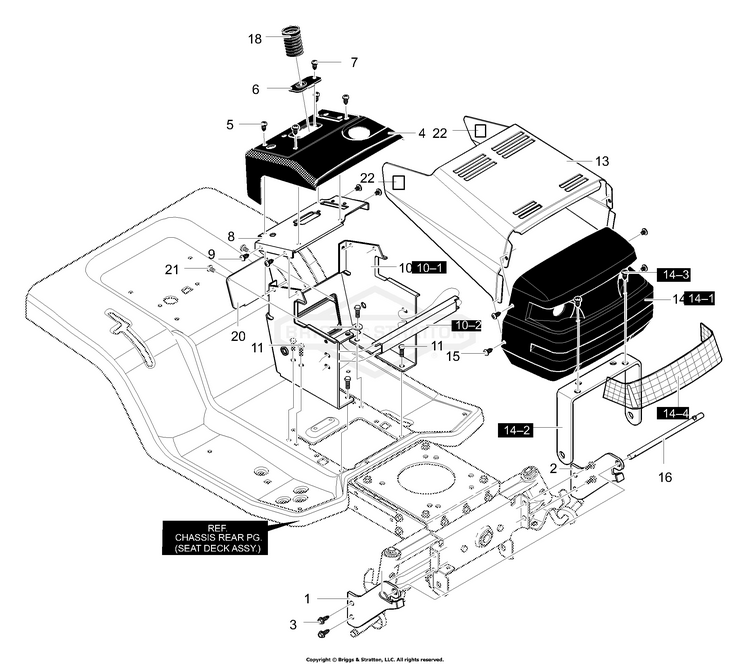

Chassis & Hood Assembly

...
...
1
BRACKET, RIGHT GRILLE BS-690543-853
...
2
BRACKET, LEFT GRILLE BS-690544-853
...
3
SCREW BS-711606MA
...
4
DASH BS-94842
...
5
SCREW BS-711629
...
6
BEARING BS-094214MA
...
7
SCREW BS-711762
...
8
PLATE, DASH PANEL BS-94211-819
...
9
SCREW BS-711629
...
19
WASHER BS-712063
...
10
LOWER CONSOLE SUPPORT BS-690104-819
...
11
SCREW BS-711606MA
...
13
HOOD BS-94972-819
...
14
ASSEMBLY, GRILLE BS-092367MA
...
15
SCREW BS-711679
...
16
ROD, HOOD PIVOT BS-690093
...
17
PIN, HAIR BS-711676
...
18
BELLOWS, STEERING BS-054789MA
...
20
ACCESS PANEL BS-93007-819
...
21
SCREW BS-711629
...
22
PAD, ADHESIVE BS-318197
...
--
BOOK, INSTRUCTION BS-F-000800J
