38514x95A Murray - Lawn Tractor (1997)

Model: 38514x95A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

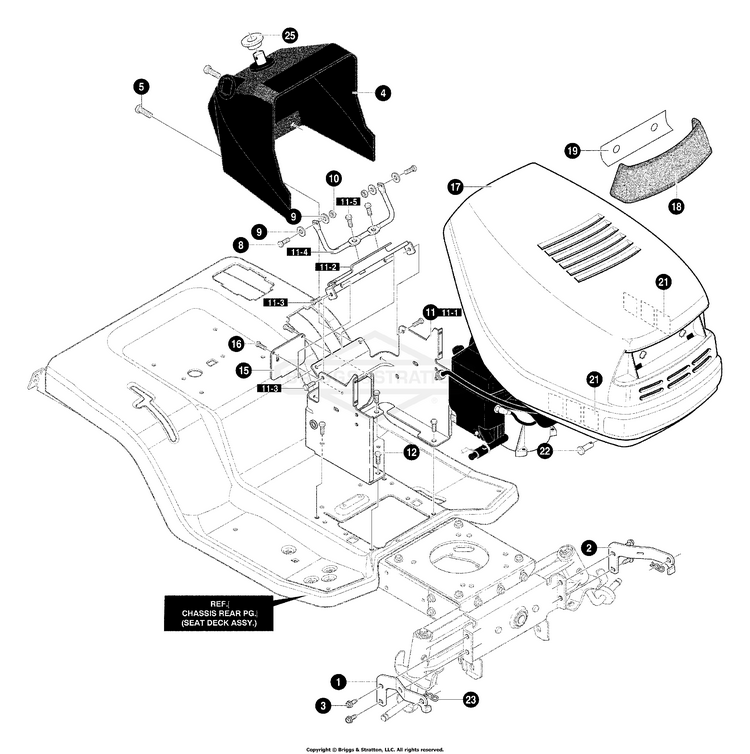

Hood & Dash

...
...
1
BRACKET, HOOD RH-H15 BS-095413
...
2
BRACKET, HOOD LH-H15 BS-095414
...
3
SCREW, 5/16-18 x 0.75 BS-26X249MA
...
4
DASH, H14/H15 BS-095427
...
5
SCREW.25-20 S-T BS-26X263MA
...
8
SCREW, 1/4-20X .75 HHC BS-001X38MA
...
9
WASHER BS-703332
...
10
SCREW.25-20 S-T BS-26X263MA
...
11
ASM. LOWER CONSOLE H14/H15 BS-341569
...
11-1
TOWER, LOWER DASH BS-095425
...
11-2
SUPPORT, STEERING/PTO BS-095426
...
11-3
SCREW.25-20 S-T BS-26X263MA
...
11-4
ROD, DASH BRACE BS-095406
...
11-5
SCREW.25-20 S-T BS-26X263MA
...
12
SCREW, 5/16-18 x 0.75 HHWATAPSGIBP BS-26X249MA
...
15
PANEL, ACCESS NLT BS-094638
...
16
SCREW, Thread Forming BS-26X270MA
...
17
HOOD, NOMA LARGE H-15 BS-304188
...
18
LENS, HEADLAMP DYNA HOODS BS-302670MA
...
19
FOIL, LENS DYNA HOOD REFLECTOR BS-308492
...
21
FOIL, HEAT REFLECTOR BS-301452MA
...
22
PIN, CLEVIS .375DIA.X .81 LG BS-300317
...
23
PIN, 3/32 X 1.6 BS-703300
...
25
BUSHING, STEERING SHAFT BS-095404
...
--
DECAL, LEFT HOOD BS-44X7481
...
--
DECAL, RIGHT HOOD BS-44X7482
...
--
DECAL, WARNING SYMBOLS BS-44X6815MA
...
--
DECAL, MASPORT BS-44X7483
...
--
DECAL, 5-SPEED BS-44X6278
...
--
INSTRUCTION BOOK BS-F-97887
...
--
PARTS LIST BS-F-97888
