38514x95A Murray - Lawn Tractor (1997)

Model: 38514x95A

Back To Assemblies

Save Part Not Listed?
product name

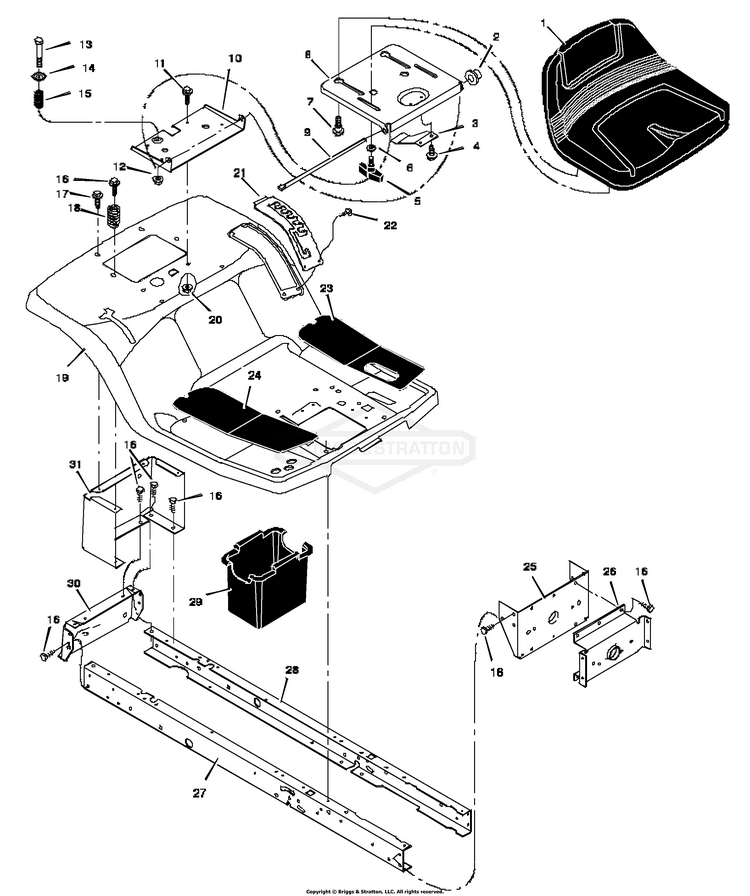

Seat Deck & Frame

...
...
1
Seat BS-094162
...
2
PUSHNUT, 3/8 BS-703948
...
3
Spring BS-094057MA
...
4
SCREW, HEX, 1/4-20X.5 BS-704130
...
5
Bolt, Wing BS-094160
...
6
WASHER, FLAT 5/16 BS-704015
...
7
Bolt, Shoulder BS-009X56MA
...
8
Support, Seat BS-94154E245
...
9
Rod, Pivot BS-94156
...
10
Bracket, Pivot BS-94153E245
...
11
CAPSCREW,5/16-18X.625 BS-703822
...
12
NUT .25-20 FLANGELOCK BS-015X89MA
...
13
Bolt, Shoulder BS-009X55MA
...
14
Washer BS-094155 Z
...
15
SPRING, Compression BS-164X31MA
...
16
Screw BS-26X249MA
...
17
SCREW.25-20 S-T BS-26X263MA
...
18
Spring BS-164X30MA
...
19
Deck, Seat BS-94070E245
...
20
NUT, HEX FLNG,5/16-18 BS-704067
...
21
Plate, Index BS-94829E245
...
22
SCREW, Thread Forming BS-26X270MA
...
23
Mat, Left BS-094149
...
24
Mat, Right BS-094148
...
25
Bracket, Rear Hanger BS-1001270E701MA
...
26
Axle, Hanger BS-094007E701MA
...
27
Frame, Right BS-94000E701
...
28
Frame, Left BS-94001 E701
...
29
Container, Battery BS-094069
...
30
Plate, Hitch BS-94002E245
...
31
Panel, Rear BS-94023E245
