385012x68A Murray - Lawn Tractor (2002)

Model: 385012x68A

Back To Assemblies

Save Part Not Listed?
product name

Engine Mount

...
...
1
FUEL CAP BS-092317MA
...
2
TANK, Fuel 1.4 Gal. BS-7601092MA
...
3
CLAMP, Hose BS-791850
...
4
Fuel Line (Must cut to length) BS-7601033MA
...
5
CLAMP, Hose BS-791850
...
6
Screw BS-26X201MA
...
7
Plate, Engine BS-094006E700
...
8
Throttle Control BS-091989
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
STK PULLEY 38-42 IN R BS-690439MA
...
12
Lockwasher BS-019X35MA
...
13
Bolt, Hex BS-01X140MA
...
14
WASHER.46.97.25 FLAT BS-17X170MA
...
15
Screw BS-26X249MA
...
16
GASKET, Exhaust BS-692236
...
17
Muffler BS-091271
...
18
Deflector, Muffler BS-094099 Z
...
19
Screw BS-26X208MA
...
20
Bolt, Hex BS-01X134MA
...
21
GUIDE SCREW - ZINC BS-093349MA
...
22
Nut, Flange BS-015X79 Z
...
23
Guide, Belt BS-094066MA
...
24
Shield, Heat BS-094320SE
...
25
LOCK-SCREW 223016 BS-092378MA
...
26
Screw BS-26X253MA
...
27
SCREW.25-20 S-T BS-26X263MA

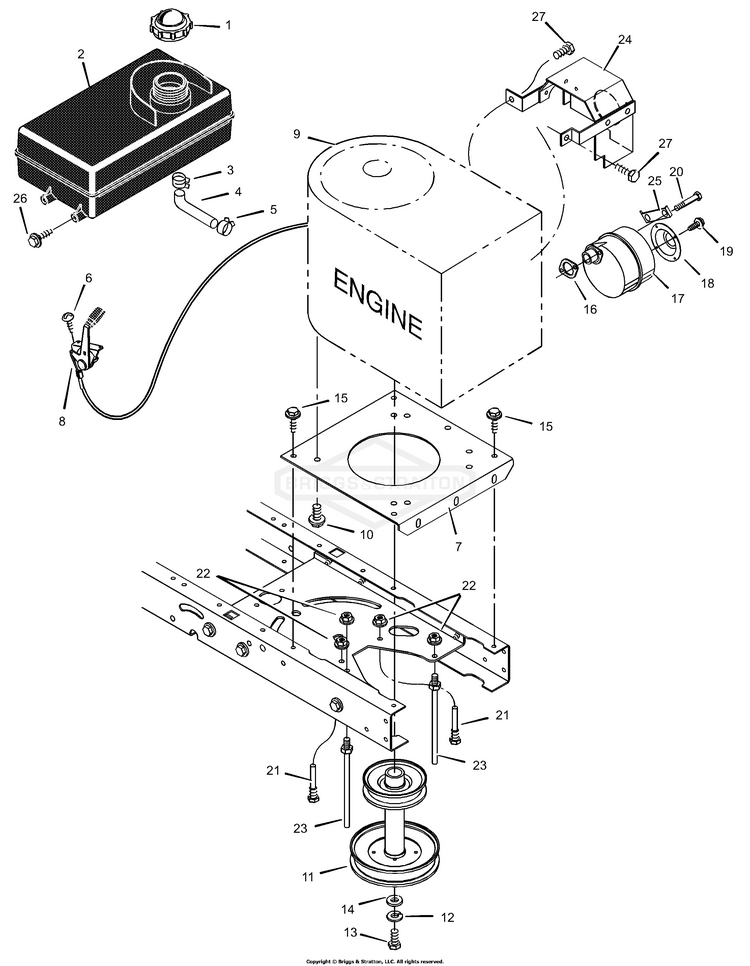

Schematic Image Zoomed
