385009x98A Murray - Lawn Tractor (2002)

Model: 385009x98A

Back To Assemblies

Save Part Not Listed?
product name

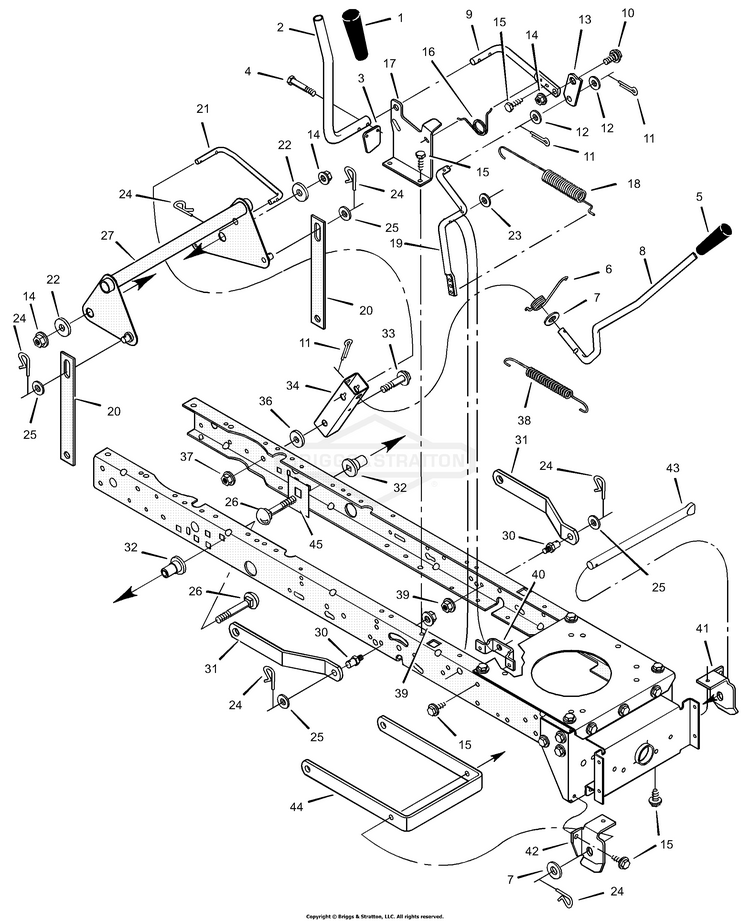

Mower Housing Suspension

...
...
0010
* ENGINE, 14.5TP Snow Series (Engine Model: 20M314-0140-H1) BS-20M314-0140-H1
...
0010-10
GUARD, Muffler (Used on 11.5TP Models) BS-797003
...
0010-10
GUARD, Muffler (Use on 14.5TP Models) BS-796384
...
0010-20
SCREW (Qty 4 used on 14.5TP Models) BS-699234
...
0010-30
CAP, Fuel Tank BS-795027
...
7
Washer BS-17X103MA
...
8
Handle, Lift BS-690533MA
...
9
Lever, PTO BS-094017 Z
...
10
Bolt, Shoulder BS-009X39MA
...
0100
WASHER (Use on 14.5TP Models) BS-704128
...
11
PIN, COTTER, 3/32X.75 BS-703312
...
0105
LOCKWASHER, SPLIT 3/8 (Use on 14.5TP Models) BS-703454
...
12
Washer BS-017X57MA
...
13
Link, PTO BS-094004 Z
...
0110
CAPSCREW, Hex Head, 3/8-24 x 1-3/4 (Use on 14.5TP Models) BS-703132
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
...
15
Screw BS-26X249MA
...
16
Spring BS-166X39MA
...
17
Bracket, PTO BS-094018E700
...
18
Spring BS-165X118MA
...
19
Crank, PTO BS-690394E700
...
20
Link, Lift BS-690212E700
...
0170
BRACKET, Idler BS-1687798YP
...
21
Link, Lift Handle BS-690122E700
...
0171
BOLT, CRRG, 5/16-18X1 BS-703800
...
22
Washer BS-17X168ZMA
...
0172
NUT, Hex KEPS, Conical Washer, 5/16-18 BS-703222
...
23
Washer BS-017X57MA
...
0180
BUSHING,IDLER BRKT BS-1501065MA
...
24
PIN, 3/32 X 1.6 BS-703300
...
0190
SPRING,EXT IDLER 8-13 BS-165X164MA
...
25
Washer BS-017X91MA
...
0200
IDLER, Plastic Ball Bearing BS-1502120MA
...
26
Bolt, Carriage BS-002X85MA
...
27
Lever Assembly, Lift BS-1001111E700MA
...
30
PIN, 3/8-16 BS-704054
...
36
Washer BS-17X191MA
...
37
NUT, CNTR LCK, 3/8-16 BS-703893
...
42
Hanger, Right Deck BS-094026E700
...
43
Rod, Hanger BS-094158ZMA
...
44
Bracket, Suspension BS-690539E700
...
45
Plate, Stiffening BS-1001098E700
