385002x78B Murray - Lawn Tractor (2005)

Model: 385002x78B

Back To Assemblies

Save Part Not Listed?
product name

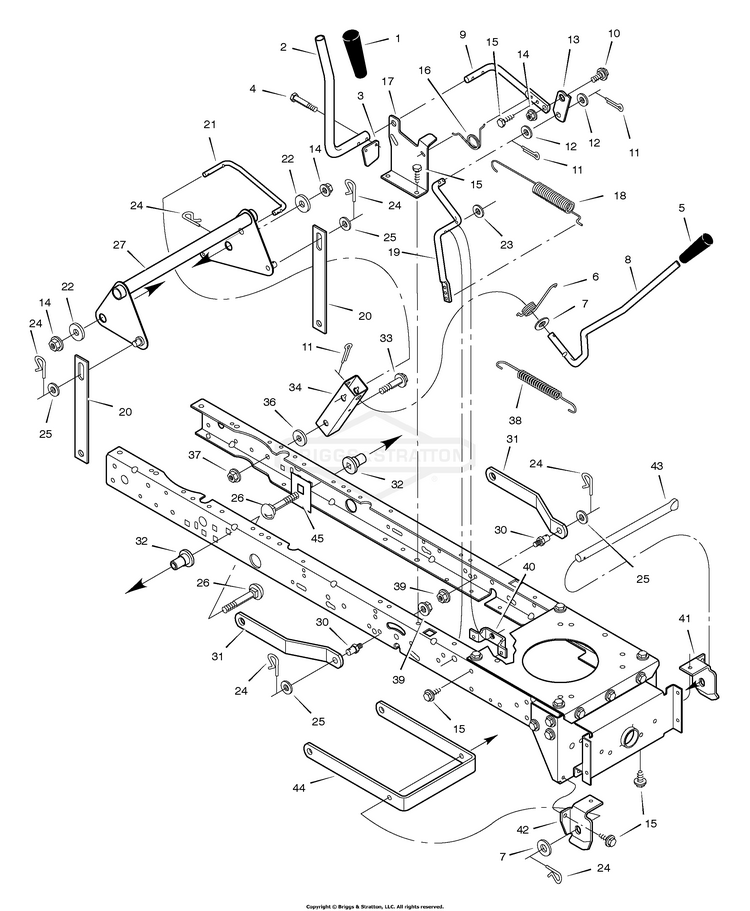

Mower Housing Suspension

...
...
1
GRIP BS-1753233YP
...
2
Handle, PTO BS-094157 Z
...
3
Pad, Switch BS-094022 Z
...
4
Screw, Hex BS-0025X3MA
...
5
GRIP BS-1753233YP
...
6
Spring BS-166X40MA
...
7
Washer BS-17X103MA
...
8
Handle, Lift BS-690533MA
...
9
Lever, PTO BS-094017 Z
...
10
Bolt, Shoulder BS-009X39MA
...
11
PIN, COTTER, 3/32X.75 BS-703312
...
12
Washer BS-017X57MA
...
13
Link, PTO BS-094004 Z
...
14
NUT, CNTR LCK, 3/8-16 BS-703893
...
15
Screw BS-26X249MA
...
16
Spring BS-166X39MA
...
17
Bracket, PTO BS-094018E701MA
...
18
Spring, PTO BS-165X118MA
...
19
CRANK, PTO BS-690394E701MA
...
20
LIFT LINK (LT) BS-690212E701MA
...
21
Link, Lift Handle BS-690122 Z
...
22
Washer BS-17X168ZMA
...
23
Washer BS-017X57MA
...
24
PIN, 3/32 X 1.6 BS-703300
...
25
Washer BS-017X91MA
...
26
Bolt, Carriage BS-002X85MA
...
27
Lever Assembly, Lift BS-1001111E700MA
...
30
PIN, 3/8-16 BS-704054
...
31
Bracket, Rear Suspension BS-094055E701MA
...
32
Spacer, Lifter BS-690151MA
...
33
Bolt, Shoulder BS-009X53MA
...
34
Bracket, Pivot BS-094015E700
...
36
Washer BS-17X191MA
...
37
NUT, CNTR LCK, 3/8-16 BS-703893
...
38
Spring BS-165X131MA
...
39
NUT, 3/8-16 BS-703333
...
40
Bracket, PTO BS-094005E701
...
41
Hanger, Left Deck BS-094027E701MA
...
42
Hanger, Right Deck BS-094026E700
...
43
Rod, Hanger BS-094158ZMA
...
44
BRKT-FRT SUSPENSION BS-690539E701MA
...
45
Plate, Stiffening BS-1001098E701
Schematic Image Zoomed
