380447-0024-E1 Briggs and Stratton Engine

Model: 380447-0024-E1

Back To Assemblies

Save Part Not Listed?
product name

Air Cleaner

...
...
161A
BASE, Air Cleaner (Metal) BS-808655
...
163A
GASKET, Air Cleaner (Air Cleaner) BS-692087
...
431A
MANIFOLD, Intake BS-691534
...
445
FILTER, A/C Cartridge BS-692519
...
467
KNOB, Air Cleaner Cover BS-691985
...
643
RETAINER, Air Cleaner BS-844932
...
654
NUT (Carburetor) BS-690939
...
711A
SCREW (Carburetor Shield) BS-841233
...
833A
SCREW (Air Cleaner Mounting Strap/Stud) BS-807084
...
862B
BRACKET, Air Cleaner BS-843332
...
967A
FILTER, Pre Cleaner BS-692520
...
968A
COVER, Air Cleaner BS-808654
...
971B
SCREW (Air Cleaner Base) (Remote Choke) BS-691492
...
996B
SHIELD-CARBURETOR BS-845543
...
1004A
DUCT-AIR BS-806422

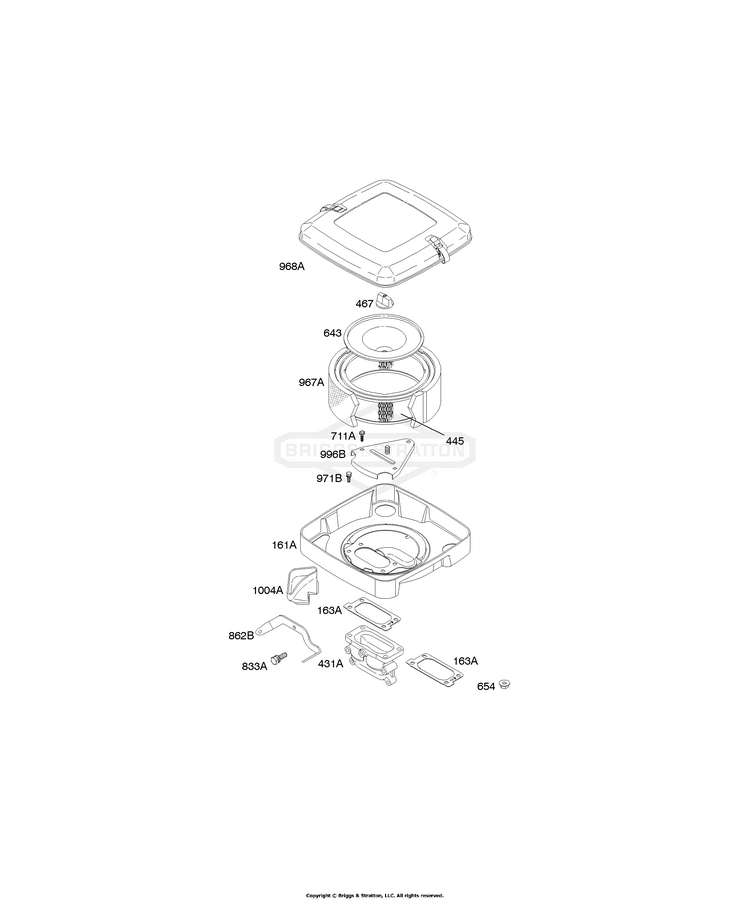

Schematic Image Zoomed
