359447-0001-E1 Briggs and Stratton Engine

Model: 359447-0001-E1

Back To Assemblies

Save Part Not Listed?
product name

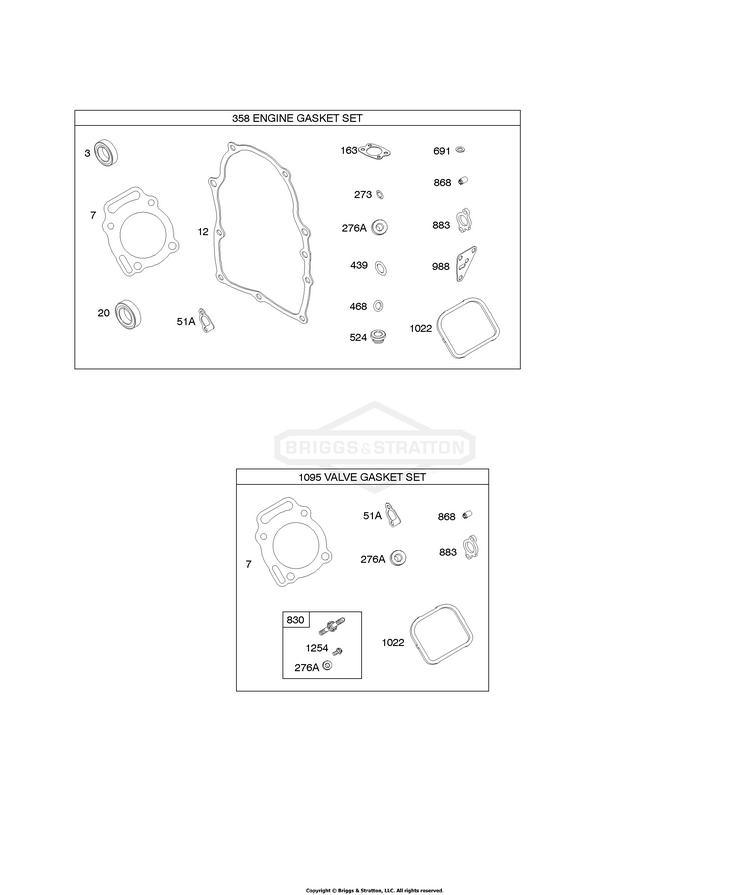

Engine and Valve Gasket Kits

...
...
3
SEAL, Oil (Magneto Side) BS-845659
...
7
GASKET, Cylinder Head BS-845884
...
12
GASKET, Crankcase BS-846487
...
20
SEAL, Oil (PTO Side) BS-805049S
...
51A
GASKET, Intake (Manifold to Cylinder Head) BS-692035
...
163
GASKET, Air Cleaner (Air Cleaner) BS-692081
...
273
SEAL, O-Ring (Oil Pump) BS-690681
...
276A
WASHER, Sealing BS-807085
...
358
GASKET SET, ENGINE BS-84010902
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump or Cylinder Assembly) BS-692154
...
468
SEAL, O-Ring (Oil Pump Screen) BS-690690
...
524
SEAL, O-Ring (Dipstick Tube) BS-693172
...
691
SEAL, OIL BS-84010839
...
830
STUD, Rocker Arm (Rocker Arm) BS-809157
...
868
SEAL, Valve BS-691963
...
883
GASKET, Exhaust BS-691613
...
988
GASKET, Oil Adapter BS-692063
...
1022
GASKET, Rocker Cover BS-806039S
...
1095
GASKET SET, Valve BS-841191
...
1254
SCREW (Rocker Arm Stud) BS-807084
