35777A-0113-E1 Briggs and Stratton Engine

Model: 35777A-0113-E1

Back To Assemblies

Save Part Not Listed?
product name

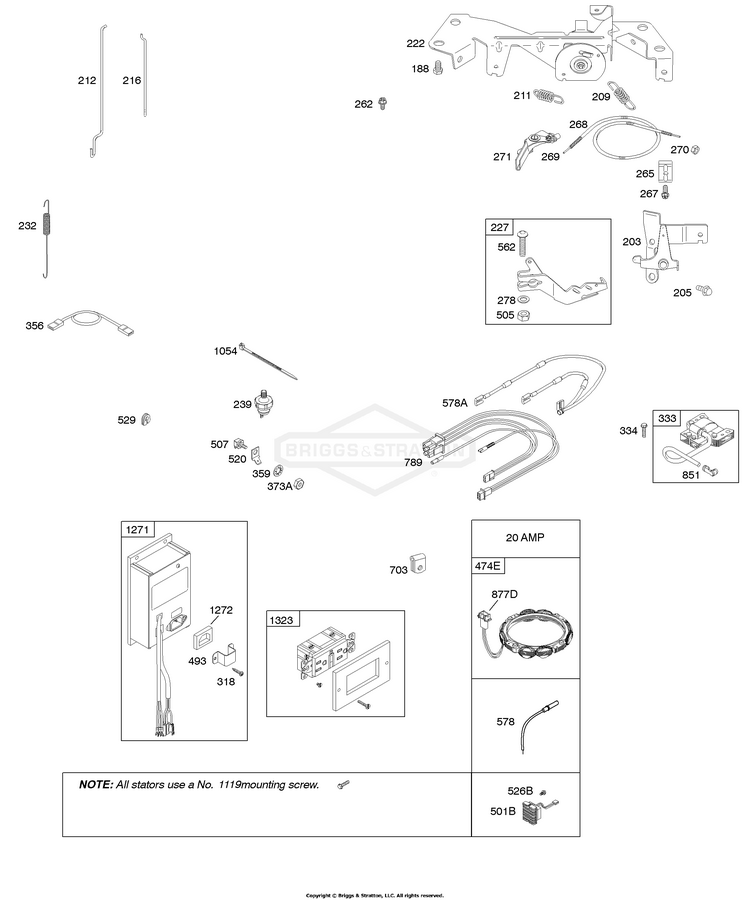

Alternator, Controls, Ignition, Governor Springs

...
...
188
SCREW (Control Bracket) BS-692056
...
203
CRANK, Bell BS-690923
...
205
SCREW (Bell Crank) BS-692083
...
209
SPRING, Governor BS-692071
...
211
SPRING, Governed Idle BS-692069
...
212
LINK, Throttle BS-847015
...
216
LINK, Choke BS-690705
...
222
BRACKET, Control BS-808454
...
227
LEVER, Governor Control BS-690236
...
232
SPRING, Governor Link BS-692073
...
239
SWITCH, Oil Pressure (Oil GARD) BS-690233
...
262
SCREW (Rod Bracket) BS-692083
...
265
CLAMP, Casing BS-691024
...
267
SCREW (Casing Clamp) BS-692083
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
278
WASHER (Governor Control Lever) BS-842122
...
318
SCREW (Mounting Bracket) BS-807130
...
333
ARMATURE-MAGNETO BS-591459
...
334
SCREW (Magneto Armature) BS-692066
...
356
WIRE, Stop BS-807063
...
359
WASHER (Ground Terminal) BS-691077
...
373A
NUT (Ground Terminal) BS-691612
...
474E
ALTERNATOR (20 Amp) BS-841588
...
493
BRACKET, Mounting BS-698024
...
501B
REGULATOR BS-809176
...
505
NUT (Governor Lever) BS-690238
...
507
INSULATOR BS-691972
...
520
TERMINAL, Ground (Brass) BS-691084
...
526B
SCREW (Regulator) BS-691547
...
529
GROMMET BS-690744
...
562
LEVER, Governor Control (Governor Control Lever) BS-844799
...
578
WIRE ASSEMBLY BS-692306
...
578A
WIRE ASSEMBLY (With Diodes) BS-692319
...
703
CLAMP, Tube BS-807116
...
789
HARNESS, Wiring BS-695050
...
851
TERMINAL, Spark Plug BS-493880S
...
877D
WIRE/CONNECTOR, Alternator BS-698092
...
1054
TIE, Cable BS-280275
...
1119
SCREW (Alternator) BS-807117
...
1271
INVERTER BS-697261
...
1272
GASKET, Inverter BS-697260
...
1323
RECEPTACLE, Powerlink BS-699146
