35777A-0113-E1 Briggs and Stratton Engine

Model: 35777A-0113-E1

Back To Assemblies

Save Part Not Listed?
product name

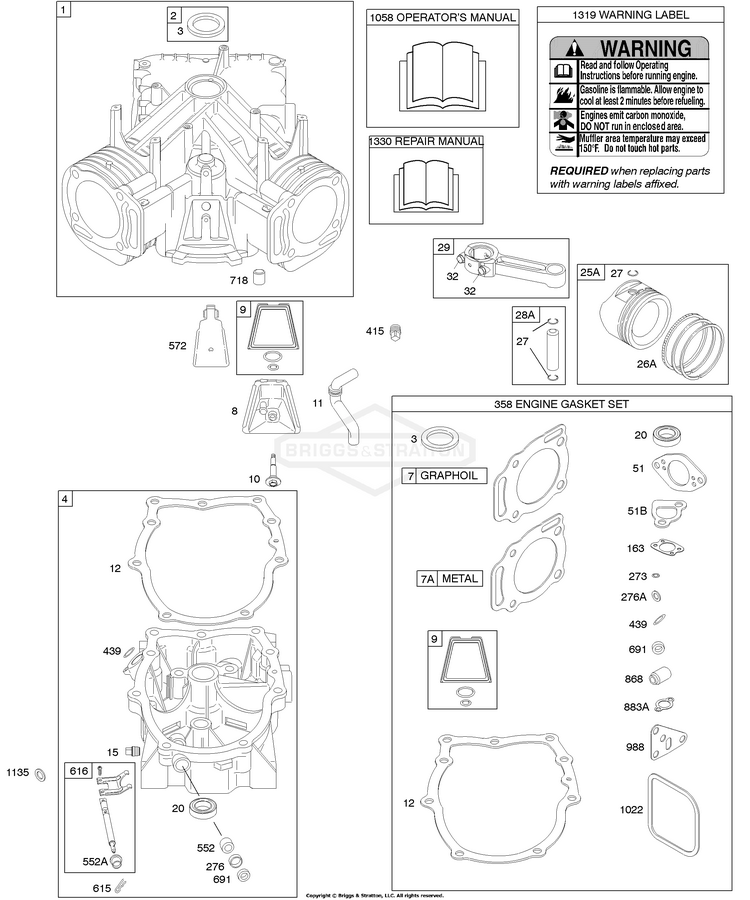

Engine Sump, Cylinder, Gasket Set - Engine, Piston, Rings, Connecting Rod

...
...
1
CYLINDER ASSEMBLY BS-809180
...
2
KIT, BUSHING/SEAL (Magneto Side) BS-84013005
...
3
SEAL, Oil (Magneto Side) BS-845659
...
4
SUMP, Engine BS-843954
...
7
GASKET, Cylinder Head (Graphoil) BS-845884
...
7A
GASKET, Cylinder Head (Metal) BS-805653S
...
8
BREATHER ASSEMBLY BS-808988
...
9
GASKET, Breather BS-844986
...
10
SCREW (Breather Assembly) BS-690751
...
11
TUBE, Breather BS-806083S
...
12
GASKET, Crankcase BS-846487
...
15
PLUG, Oil Drain (Square Head) BS-690946
...
20
SEAL, Oil (PTO Side) BS-805049S
...
25A
PISTON ASSEMBLY (.020 Oversize) BS-843821
...
25A
PISTON ASSEMBLY (Standard) BS-844540
...
26A
SET, Ring (.020 Oversize) BS-843822
...
26A
SET, Ring (Standard) BS-843793
...
27
LOCK, Piston Pin BS-690683
...
28A
PIN, Piston (Standard) BS-807886
...
29
ROD, Connecting (.020 Undersize) BS-807803
...
29
ROD, Connecting (Standard) BS-807900S
...
32
SCREW (Connecting Rod) BS-690698
...
51
GASKET, Intake (Manifold/Carburetor Spacer) BS-691694
...
51B
GASKET, Intake (Manifold/Heads) BS-692035
...
163
GASKET, Air Cleaner (Used With Metal Air Cleaner Base) BS-692081
...
273
SEAL, O-Ring (Oil Pump) BS-690681
...
276
WASHER (Crankcase Cover/Sump) BS-690704
...
276A
WASHER, Sealing (Rocker Cover) Used Before Code Date 01120300 BS-691766
...
276A
WASHER, Sealing (Rocker Cover) Used After Code Date 01120200 BS-807085
...
358
GASKET SET, ENGINE Used Before Code Date 01120300 BS-84010903
...
358
GASKET SET, ENGINE Used After Code Date 01120200 BS-84010902
...
415
PLUG (Square Head) BS-794903
...
439
O-RING, Oil Gallery (Crankcase Cover/Sump) or (Cylinder Assembly) BS-692154
...
552
BUSHING, Governor Crank BS-690701
...
552A
BUSHING, Governor Crank BS-806686
...
572
BAFFLE, Breather BS-690686
...
615
PIN, Cotter BS-691550
...
616
CRANK, Governor BS-806685
...
691
SEAL, OIL BS-84010839
...
718
PIN, Locating BS-806469
...
868
SEAL, Valve BS-691963
...
883A
GASKET, Exhaust BS-691613
...
988
GASKET, Oil Adapter BS-692063
...
1022
GASKET, Rocker Cover BS-806039S
...
1058
MANUAL, Operator's BS-277107
...
1135
WASHER (Crankcase Cover/Sump) BS-806497
...
1319
LABEL, Warning BS-794467
...
1330
MANUAL, Repair BS-272144
