356777-0001-B1 Briggs and Stratton Engine

Model: 356777-0001-B1

Back To Assemblies

Save Part Not Listed?
product name

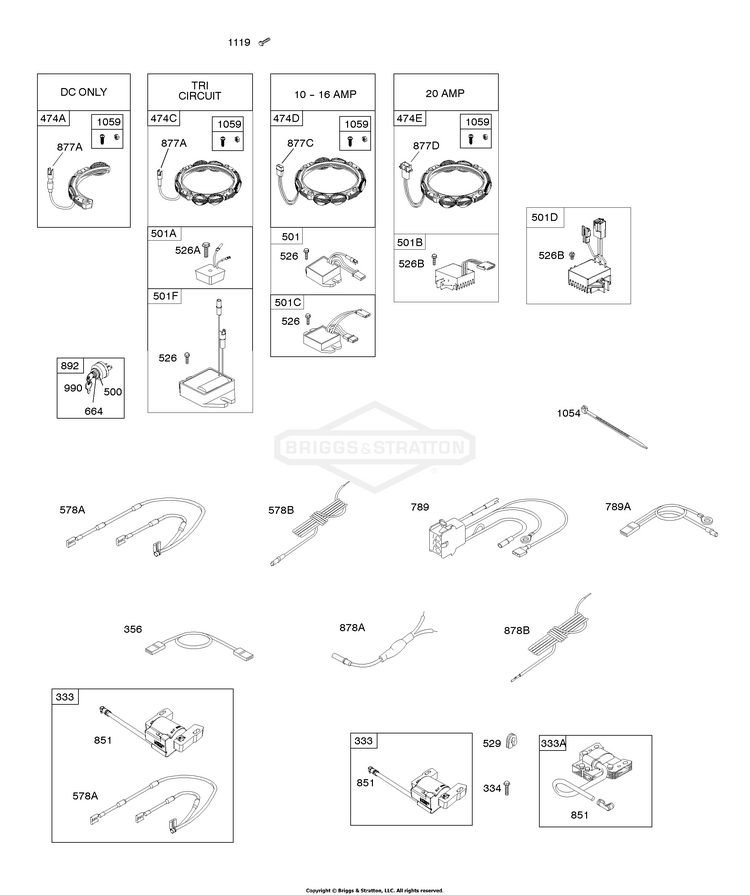

Alternator, Ignition, Wire Assemblies

...
...
333
ARMATURE, MAGNETO Used After Code Date 09100700 BS-84013449
...
333A
ARMATURE-MAGNETO Used Before Code Date 09100800 BS-591459
...
334
SCREW (Magneto Armature) BS-692066
...
474E
ALTERNATOR (20 Amp) Used After Code Date 16063000 BS-846882
...
474E
ALTERNATOR (20 Amp) Used Before Code Date 16070100 BS-696579
...
500
WASHER (Key Switch) BS-691086
...
501B
REGULATOR (3 Wire)(20 Amp) Used Before Code Date 16070100 BS-84004837
...
501D
REGULATOR (20 Amp) Used After Code Date 16063000 BS-593843
...
526B
SCREW (Regulator) (M6x28mm) BS-691547
...
529
GROMMET BS-690744
...
578A
HARNESS, WIRING (With Diodes) Used After Code Date 09100700 BS-84013450
...
578A
WIRE ASSEMBLY Used Before Code Date 09100800 BS-692319
...
578B
WIRE ASSEMBLY BS-692306
...
578H
WIRE ASSEMBLY (Use with 20 Regulator After Date Code 16063000) BS-846899
...
664
NUT (Key Switch) BS-691087
...
789A
HARNESS, Wiring BS-844914
...
851
TERMINAL, Spark Plug BS-493880S
...
877A
WIRE/CONNECTOR, Alternator (10 Amp Regulated) BS-393814
...
877C
WIRE/CONN-ALTERNATOR BS-399916
...
877D
WIRE/CONNECTOR, Alternator BS-698092
...
878B
HARNESS, Wiring BS-691362
...
892
SWITCH, Key BS-692318
...
990
SET, Key BS-691959
...
1054
TIE, Cable BS-280275
...
1059
KIT, Screw/Washer BS-698516
...
1119
SCREW (Alternator) BS-691552
