356447-0216-B5 Briggs and Stratton Engine

Model: 356447-0216-B5

Back To Assemblies

Save Part Not Listed?
product name

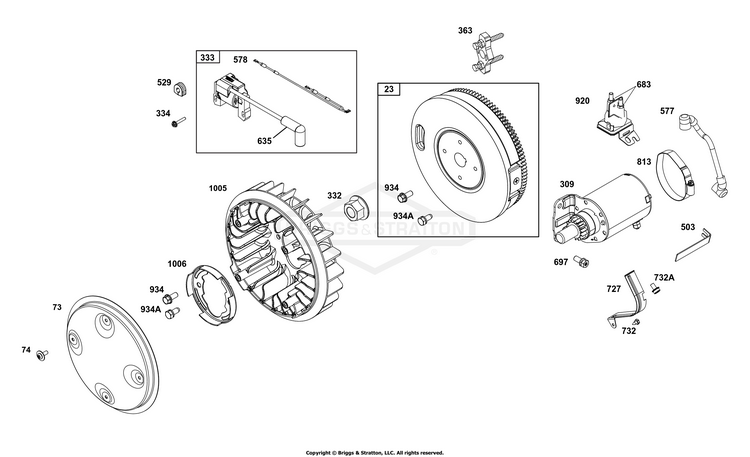

Flywheel, Ignition, and Starter Group

...
...
23
FLYWHEEL ASSEMBLY BS-841050
...
73
SCREEN, Rotating BS-841440
...
74
SCREW BS-84007750
...
309
MOTOR, STARTER BS-84013068
...
332
NUT (Flywheel) BS-690887
...
333
ARMATURE, MAGNETO BS-84013449
...
334
SCREW (Magneto Armature) BS-692066
...
363
PULLER, Flywheel (71.5mm (2.81in.)) BS-19203
...
503
STRAP, Starter BS-845016
...
529
GROMMET BS-690744
...
577
CABLE, Starter BS-690795
...
683
NUT (Starter Solenoid) BS-691029
...
697
SCREW BS-691902
...
727
COVER, Starter Drive BS-841313
...
732
SCREW (Starter Drive Cover) BS-690688
...
732A
SCREW (Starter Drive Cover) BS-841233
...
813
CLAMP BS-690635
...
920
SOLENOID, Starter BS-846820
...
934
SCREW (Fan Retainer) (M8x18mm) BS-692062
...
1005
FAN, Flywheel BS-841439
...
1006
RETAINER, Fan BS-690452
