356447-0123-B5 Briggs and Stratton Engine

Model: 356447-0123-B5

Back To Assemblies

Save Part Not Listed?
product name

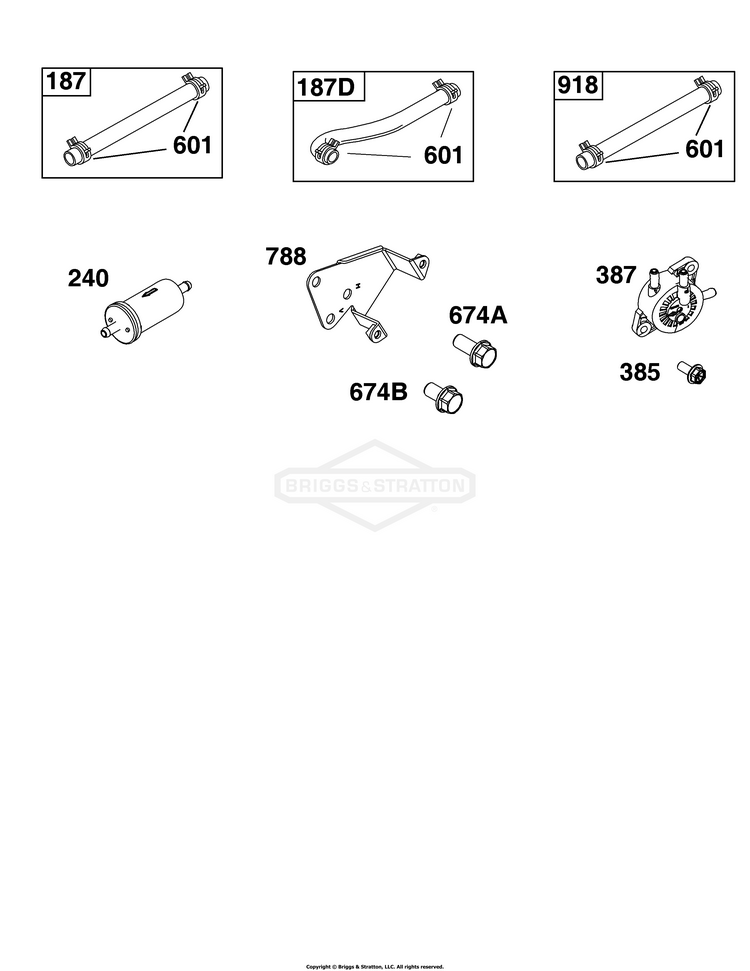

Fuel Supply Group

...
...
187
LINE, Fuel (Straight)(15 Inches)(Cut To Required Length) BS-791766
...
187D
LINE, Fuel (Formed)(Cut To Required Length) BS-791744
...
240
FILTER, Fuel BS-845125
...
385
SCREW (Fuel Pump) BS-807084
...
387
PUMP, Fuel BS-597338
...
601
CLAMP, Hose BS-691038
...
674A
SCREW (Fuel Tank Bracket) (M8x18mm) BS-692062
...
674B
SCREW (Fuel Tank Bracket) (M8x14mm) BS-692056
...
788
BRACKET, Fuel Pump BS-691559
...
918
GASKET, Breather Passage (Straight)(Cut To Required Length) BS-791760
Schematic Image Zoomed
