product name

326431-2521-08 Briggs and Stratton Engine

Model: 326431-2521-08

Back To Assemblies

Save Part Not Listed?
product name

Springs, Controls

...
...
162
BUSHING BS-690267
...
203
CRANK, Bell BS-690263
...
205A
SCREW (Bell Crank) BS-690810
...
206
NUT, Governor Adjusting BS-691079
...
206A
NUT, Governor Adjusting BS-691584
...
208
ROD, Governor Control BS-593696
...
209
SPRING, Governor BS-691596
...
212
LINK, Throttle BS-691791
...
227
LEVER, Governor Control BS-690607
...
232
SPRING/LINK, Governor BS-690545
...
266
CONTROL, Throttle BS-494554
...
268
CASING, Control Wire (Cut To Required Length) BS-691025
...
269
WIRE, Control (Cut To Required Length) BS-26634
...
270
NUT (Control Wire Casing) BS-691027
...
271
LEVER, Control BS-691028
...
404
WASHER (Governor Crank) BS-690264
...
505
NUT (Governor Control Lever) BS-691251
...
562
BOLT (Governor Lever) BS-92613
...
614
PIN, Cotter BS-691620
...
616
CRANK, Governor BS-291364
...
668
SPACER (Governor Control Rod) BS-690313

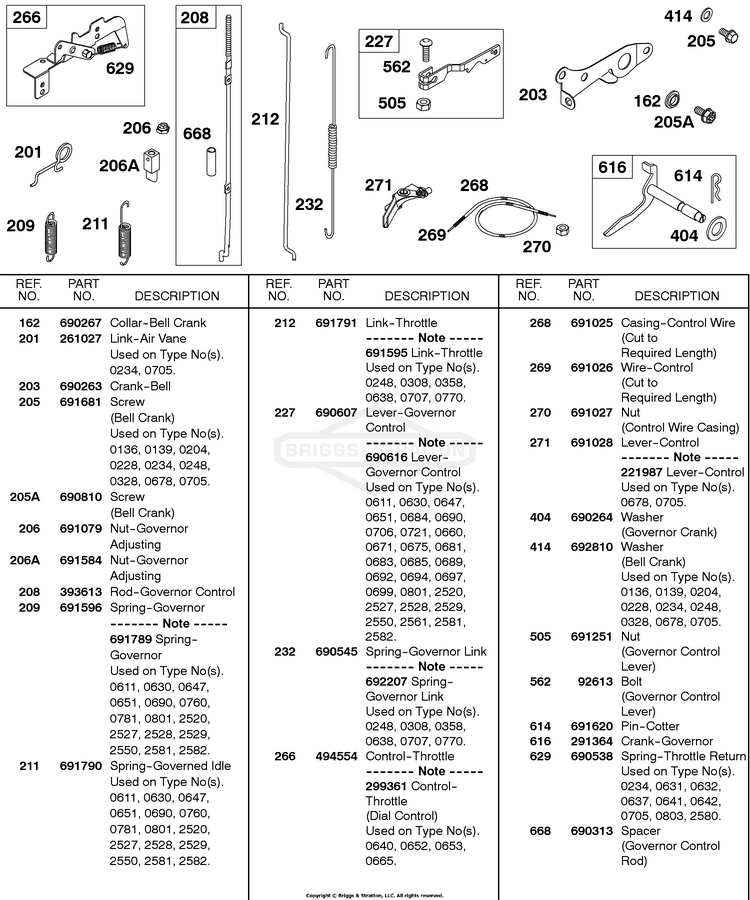

Schematic Image Zoomed
