31B707-0005-E1 Briggs and Stratton Engine

Model: 31B707-0005-E1

Back To Assemblies

Save Part Not Listed?
product name

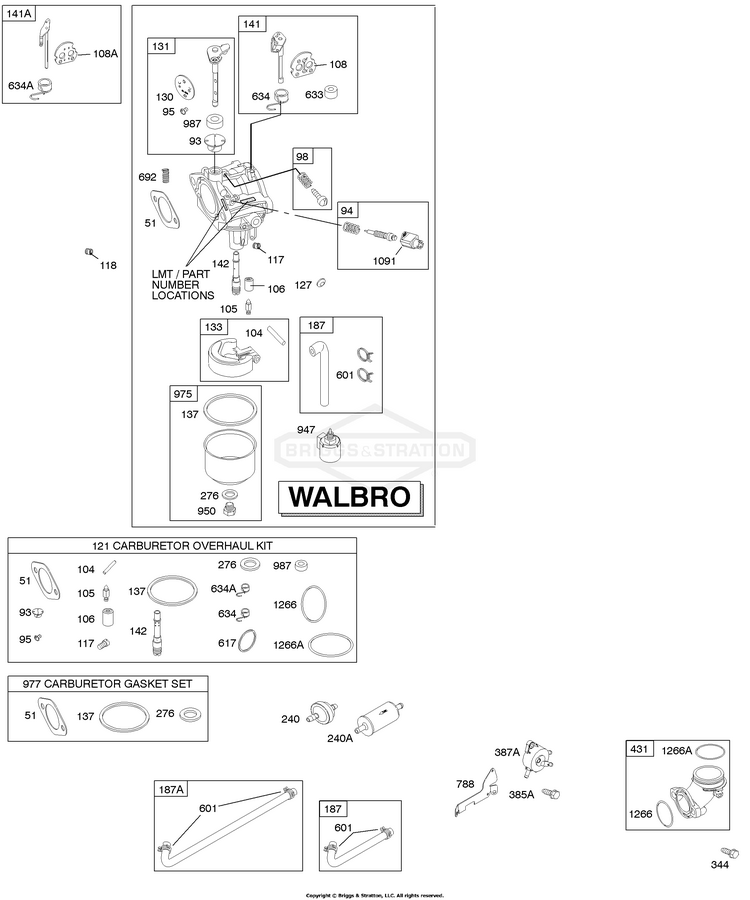

Carburetor, Fuel Supply, Kit - Carburetor Overhaul

...
...
51
GASKET-INTAKE BS-692137
...
93
BUSHING, Throttle Shaft BS-690602
...
94
KIT, Idle Mixture BS-794176
...
95
SCREW (Throttle Valve) BS-691636
...
98
KIT, Idle Speed (Idle Speed) (Lmt 54, 55, 91) BS-495800
...
104
PIN, Float Hinge BS-690525
...
105
VALVE-FLOAT NEEDLE BS-231855S
...
106
SEAT, Inlet (Gravity Feed Carburetor) BS-690577
...
106
SEAT, Inlet (Pump Feed Carburetor) BS-691780
...
108
VALVE, Choke (Carburetor Part No. 697204) BS-690464
...
108A
VALVE, Choke (Carburetor Part Numbers 697203, 697206) BS-692344
...
117
JET, Main (Standard) BS-694352
...
118
JET, Main (High Altitude) (High Altitude) BS-697228
...
121
KIT, Carburetor Overhaul (Walbro Carburetor) BS-697241
...
127
PLUG, Welch BS-694524
...
130
VALVE, Throttle BS-691750
...
131
KIT, Throttle Shaft BS-790901
...
133
FLOAT, Carburetor BS-494381
...
137
GASKET, Float Bowl BS-281165S
...
141
KIT, Choke Shaft (Carburetor Part No. 697206) BS-790903
...
141
KIT, Choke Shaft (Carburetor Part No. 697204) BS-790905
...
141A
KIT, Choke Shaft (Carburetor Part No. 697203) BS-790902
...
141B
KIT, Choke Shaft BS-792777
...
142
NOZZLE, Carburetor (Standard) BS-697140
...
187
LINE, Fuel (Formed)(10-1/4" Long)(Cut to Required Length) BS-791805
...
187A
LINE, Fuel (Formed)(21 )(Cut to Required Length) BS-791806
...
240
FILTER, Fuel (White, 75 Microns) BS-394358S
...
276
WASHER, Sealing BS-692255
...
344
SCREW (Cable Clamp) BS-693675
...
385A
SCREW (Fuel Pump) BS-690297
...
387A
PUMP, Fuel BS-597338
...
431
ELBOW, Intake BS-697122
...
601
CLAMP, Hose BS-791850
...
617
SEAL, O-Ring (Intake Manifold) BS-692138
...
633
SEAL, Choke/Throttle Shaft BS-690597
...
634
SPRING/SEAL ASSEMBLY (Carburetor Part No. 697204) BS-690801
...
634A
SPRING/SEAL ASSEMBLY (Carburetor Part No. 697203) BS-690802
...
692
SPRING, Detent (Carburetor Part No. 697206) BS-691301
...
692
SPRING, Detent (Carburetor Part No. 697204) BS-590931
...
788
BRACKET, Fuel Pump BS-699347
...
947
SOLENOID, Fuel BS-694393
...
950
SCREW (Float Bowl) BS-691657
...
975
BOWL, Float (Float Bowl) BS-495933
...
977
KIT, Carburetor Overhaul BS-497535
...
987
SEAL, Choke/Throttle Shaft BS-691326
...
1091
CAP, Limiter BS-691333
...
1266
SEAL, O-Ring (Intake Elbow) BS-691917
...
1266A
SEAL, O-Ring (Intake Elbow) BS-697123
