312002x11A Murray - Lawn Tractor (2004)

Model: 312002x11A

Back To Assemblies

Save Part Not Listed?
product name

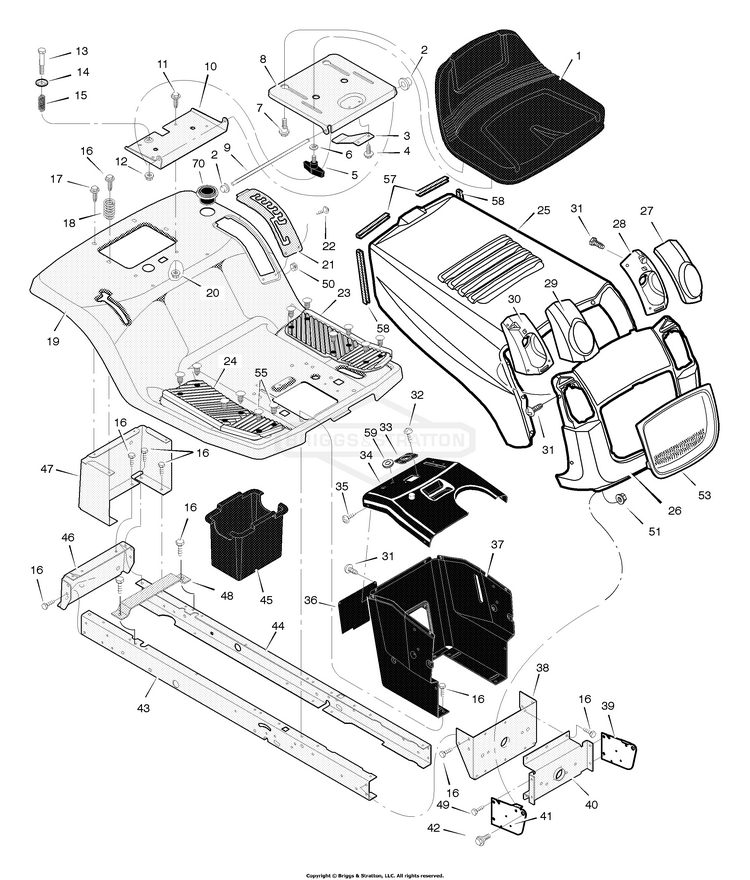

Chassis & Hood

...
...
1
Seat BS-MU1001028
...
2
Cap, Push On BS-MU028X23
...
3
SPRING BS-MU094057
...
4
SCREW BS-MU26X229
...
5
BOLT, Wing BS-MU1001054
...
6
WASHER, FLAT 5/16 BS-704015
...
7
BOLT, Shoulder BS-MU009X56
...
8
SUPPORT, Seat BS-MU094154E701
...
9
ROD, Pivot BS-MU094156Z
...
10
BRACKET, Pivot BS-MU1001648E701
...
11
BOLT BS-MU001X45
...
12
NUT BS-MU015X89
...
13
BOLT, Shoulder BS-MU009X55
...
14
WASHER BS-MU094155 Z
...
15
SPRING BS-MU164X31
...
16
SCREW BS-MU26X249
...
17
SCREW BS-MU26X263
...
18
SPRING BS-MU164X30
...
19
DECK, Seat BS-MU1001558E549
...
20
NUT BS-MU15X123
...
21
Plate, Index BS-MU094151E701
...
22
SCREW BS-MU009X49
...
23
Mat, Left BS-MU1001582
...
24
Mat, Right BS-MU1001578
...
25
HOOD BS-MU1001538E549
...
26
GRILLE BS-MU1001531E549
...
27
Lens, Left BS-MU1001546
...
28
Housing, Left Headlamp BS-MU1001544
...
29
Lens, Right BS-MU1001545
...
30
Housing, Right Headlamp BS-MU1001543
...
31
SCREW BS-MU26X270
...
32
SCREW BS-MU26X238
...
33
BEARING, Steering BS-MU1001491
...
34
DASH BS-MU1001584E701
...
35
SCREW BS-MU26X201
...
36
PANEL, Access BS-MU093007E701
...
37
SUPPORT, Dash BS-MU095318E701
...
38
BRACKET, Rear Hanger BS-MU1001270E701
...
39
SUPPORT, Left Grille BS-MU094085E701
...
40
Axle, Hanger BS-MU094007E701
...
41
SUPPORT, Right Grille BS-MU094084E701
...
42
BOLT, Shoulder BS-MU009X58
...
43
FRAME, Right BS-MU1001928E701MA
...
44
FRAME, Left BS-MU1001927E701MA
...
45
Container, Battery BS-MU690424
...
46
Plate, Hitch BS-MU1001002E701
...
47
PANEL, Rear BS-MU690434E701
...
48
SUPPORT, Battery BS-MU690482E701
...
49
SCREW BS-MU26X277
...
50
NUT BS-MU015X81
...
51
NUT BS-MU15X124
...
53
Insert, Grille BS-MU1001540
...
55
FASTENER, Panel BS-MU0193X1
...
57
Trim, Hood (3.75") BS-MU1001652
...
58
Trim, Hood (6.5") BS-MU1001653
...
59
Grommet, Parking Brake BS-MU1001755
...
70
Holder, Cup BS-MU1001542
...
--
Bag, Parts BS-MU1001865
...
--
Instruction Book & Parts List BS-MUF-040730L
