312002x11A Murray - Lawn Tractor (2004)

Model: 312002x11A

Back To Assemblies

Save Part Not Listed?
product name

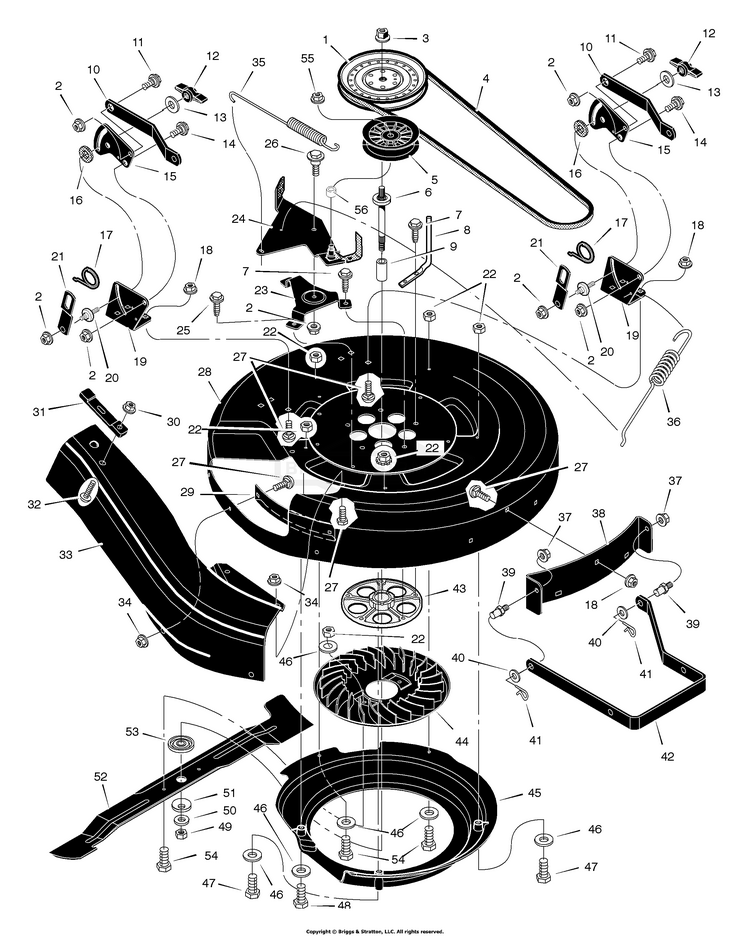

Mower Housing

...
...
1
PULLEY BS-MU690432
...
2
NUT, Flange BS-MU015X84
...
3
NUT BS-MU15X140
...
4
BELT, Blade BS-MU037X74
...
5
PULLEY, Idler BS-MU690387
...
6
Mandrel BS-MU094129
...
7
SCREW BS-MU0025X7
...
8
GUIDE, Belt BS-MU092424
...
9
SPACER BS-MU094130
...
10
BRACKET, Rear Suspension BS-MU094055E701
...
11
BOLT, Shoulder BS-MU009X52
...
12
KNOB BS-MU094068
...
13
WASHER BS-MU017X45
...
14
BOLT, Shoulder BS-MU009X51
...
15
Plate, Suspension BS-MU690379E700
...
16
Pad, Friction BS-MU094137
...
17
SPRING BS-MU166X43
...
18
NUT, Flange BS-MU015X79
...
19
BRACKET, Rear Deck BS-MU690378E700
...
20
PIN, Hanger BS-MU095194
...
21
Link, Lift BS-MU094053E701MA
...
22
NUT BS-MU15X116
...
23
BRACKET, Idler Arm BS-MU690427E700
...
24
ASSEMBLY, Idler Arm & Pad BS-MU690647
...
25
SCREW BS-MU26X249
...
26
BOLT, Shoulder BS-MU009X39
...
27
BOLT, Carriage BS-MU002X64
...
28
Housing, Blade BS-MU690530E700
...
29
Baffle BS-MU690399E700
...
30
NUT, Flange BS-MU015X89
...
31
Strap, Rubber BS-MU054695
...
32
SCREW BS-MU01X139
...
33
CHUTE BS-MU690367
...
34
NUT BS-MU015X79
...
35
SPRING, PTO BS-MU165X118
...
36
SPRING, Extension BS-MU165X140
...
37
NUT, Flange BS-MU015X84
...
38
BRACKET, Front Deck BS-MU690380E700
...
39
PIN, Threaded Shoulder BS-MU094067
...
40
WASHER BS-MU017X91
...
41
PIN, Hair BS-MU0031X4
...
42
HANGER, Front BS-MU690381E700
...
43
Housing, Jackshaft BS-MU1401275
...
44
Fan, Assist BS-MU690359
...
45
Housing, Fan BS-MU1001237E701
...
46
WASHER BS-MU017X37
...
47
BOLT BS-MU001X71
...
48
BOLT BS-MU01X106MA
...
49
NUT BS-MU15X100
...
50
WASHER BS-MU17X165
...
51
WASHER, Belleville BS-MU17X166
...
52
Blade BS-MU690398E701
...
53
Adapter, Blade BS-MU092466
...
54
BOLT BS-MU01X121
...
55
NUT, Flange BS-MU015X98
...
56
SPACER BS-MU690369
...
--
Blade Housing, Complete (Includes Ref. No's. 1-56) BS-MU776110
