312002x11A Murray - Lawn Tractor (2004)

Model: 312002x11A

Back To Assemblies

Save Part Not Listed?
product name

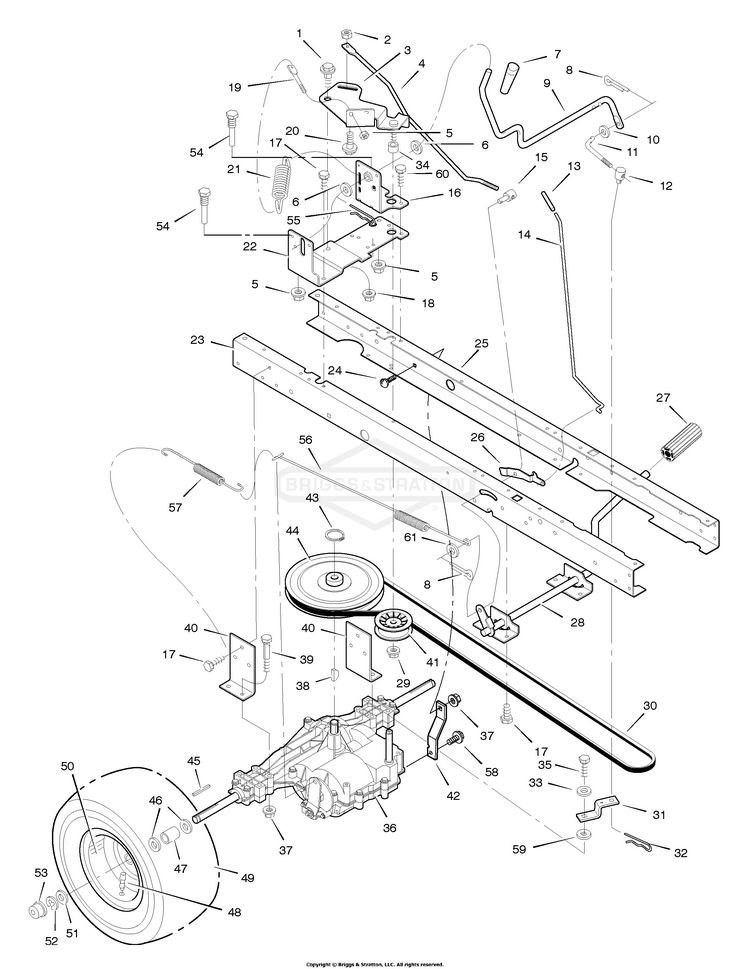

Motion Drive

...
...
1
BOLT, Shoulder BS-MU009X39
...
2
NUT, Hex BS-MU015X89
...
3
Arm, Idler BS-MU690173 Z
...
4
ROD, Clutch BS-MU094041 Z
...
5
NUT BS-MU015X79
...
6
WASHER BS-MU17X102
...
7
GRIP BS-MU092697
...
8
PIN, Cotter BS-MU030X20
...
9
LEVER, Shift BS-MU094043 Z
...
10
WASHER, FLAT 5/16 BS-704015
...
11
Link, Shift BS-MU094044Z
...
12
NUT, Adjuster BS-MU021920 Z
...
13
GRIP BS-MU091079
...
14
ROD, Parking Brake BS-MU1001245 Z
...
15
NUT, Adjuster BS-MU094815ZMA
...
16
BRACKET, Shift Pivot BS-MU1001303 Z
...
17
SCREW BS-MU26X249
...
18
NUT BS-MU015X84
...
19
STUD, Spring Mounting BS-MU094042 Z
...
20
BOLT, Shoulder BS-MU009X54
...
21
SPRING, Extension BS-MU165X116
...
22
BRACKET, Right Shifter BS-MU1001302E701
...
23
FRAME, Right BS-MU1001928E701MA
...
24
BOLT, Carriage BS-MU002X53
...
25
FRAME, Left BS-MU1001927E701MA
...
26
Latch, Parking Brake BS-MU094045 Z
...
27
Pedal BS-MU021544
...
28
LEVER, Brake/Clutch BS-MU94038E700
...
29
NUT BS-MU015X98
...
30
BELT, Motion Drive BS-MU037X87
...
31
Yoke, Shift BS-MU094031 Z
...
32
PIN, Hair BS-MU0031X6
...
33
WASHER BS-MU017X38
...
34
SPACER BS-MU690369
...
35
BOLT BS-MU06X105
...
37
NUT BS-MU015X88
...
38
Key, Woodruff BS-MU020697
...
39
BOLT BS-MU01X155
...
40
BRACKET, Transaxle BS-MU094008E701
...
41
PULLEY BS-MU690409
...
42
BRACKET, Torque Strap, LH BS-MU094433E701MA
...
43
Ring, Snap BS-MU0011X7
...
44
PULLEY, Drive BS-MU095094
...
45
Key, Square BS-MU021553
...
46
WASHER BS-MU17X160
...
47
SPACER, Transaxle BS-MU690554 Z
...
48
Stem, Valve BS-MU024373
...
49
Tire * BS-MU776114
...
--
Tube BS-MU407049
...
50
WHEEL & TIRE ASSEMBLY BS-MU690376601
...
51
WASHER BS-MU17X195
...
52
E-Ring BS-MU0011X3
...
53
Hub Cap BS-MU094618
...
54
GUIDE, Belt BS-MU093349
...
55
PIN, Hair BS-MU0031X4
...
56
SPRING, Extension BS-MU165X141
...
57
SPRING, Extension BS-MU165X92
...
58
SCREW BS-MU26X216
...
59
WASHER BS-MU17X148
...
60
SCREW BS-MU26X267
...
61
WASHER BS-MU17X169
