312001x11C Murray - Lawn Tractor (2003)

Model: 312001x11C

Back To Assemblies

Save Part Not Listed?
product name

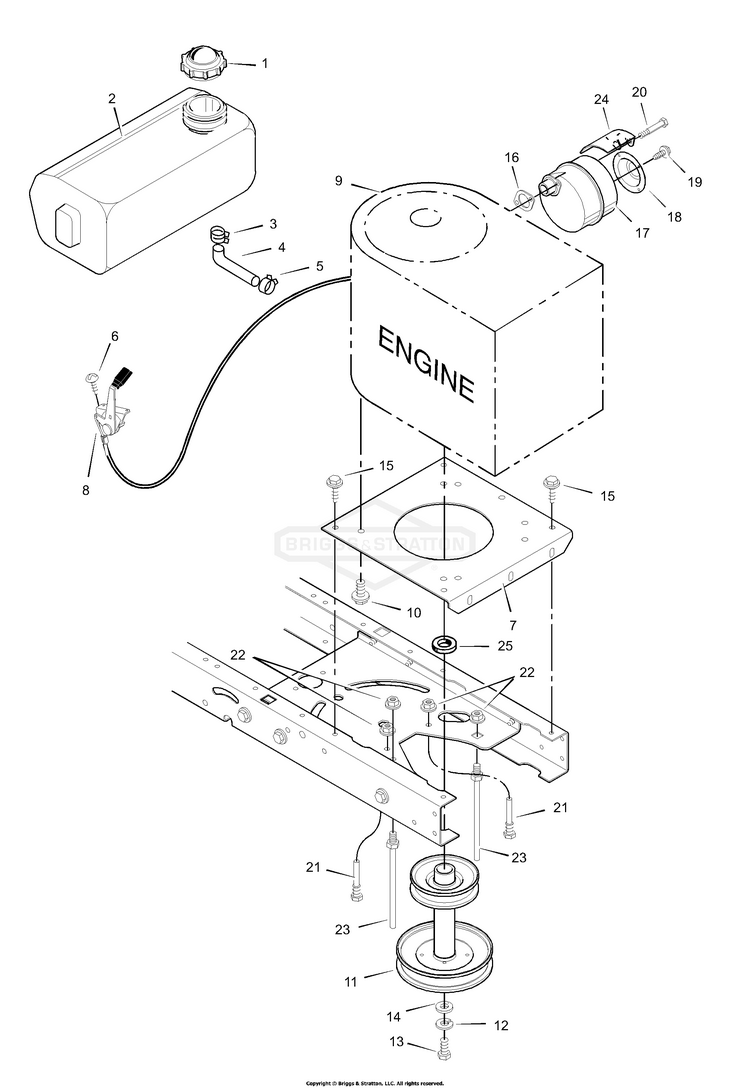

Engine Mount

...
...
1
Fuel Cap BS-MU92317
...
2
Fuel Tank BS-MU690263
...
3
Hose Clamp (Included with Ref. No. 2) BS-MU95197
...
4
FUEL LINE (must cut to length) (Included with Ref. No. 2) BS-MU23717
...
5
Hose Clamp BS-MU95197
...
6
SCREW BS-MU26X201
...
7
Plate, Engine BS-MU94006E700
...
8
Throttle Control BS-MU92371
...
10
BOLT, Engine Mount BS-MU25X7
...
11
Stack Pulley Assembly BS-MU690439 Z
...
12
LOCKWASHER BS-MU19X35
...
13
BOLT, Hex BS-MU1X140
...
14
WASHER BS-MU17X170
...
15
SCREW BS-MU26X249
...
16
Gasket BS-MU91309
...
17
Muffler BS-MU91271
...
18
Deflector, Muffler BS-MU94099 Z
...
19
SCREW BS-MU26X208
...
20
BOLT, Hex BS-MU1X134
...
21
GUIDE, Belt BS-MU93349
...
22
NUT, Flange BS-MU15X79 Z
...
23
GUIDE, Belt BS-MU94066
...
24
SHIELD, Heat BS-MU690293
...
25
SPACER BS-MU93077
