312001x11B Murray - Lawn Tractor (2003)

Model: 312001x11B

Back To Assemblies

Save Part Not Listed?
product name

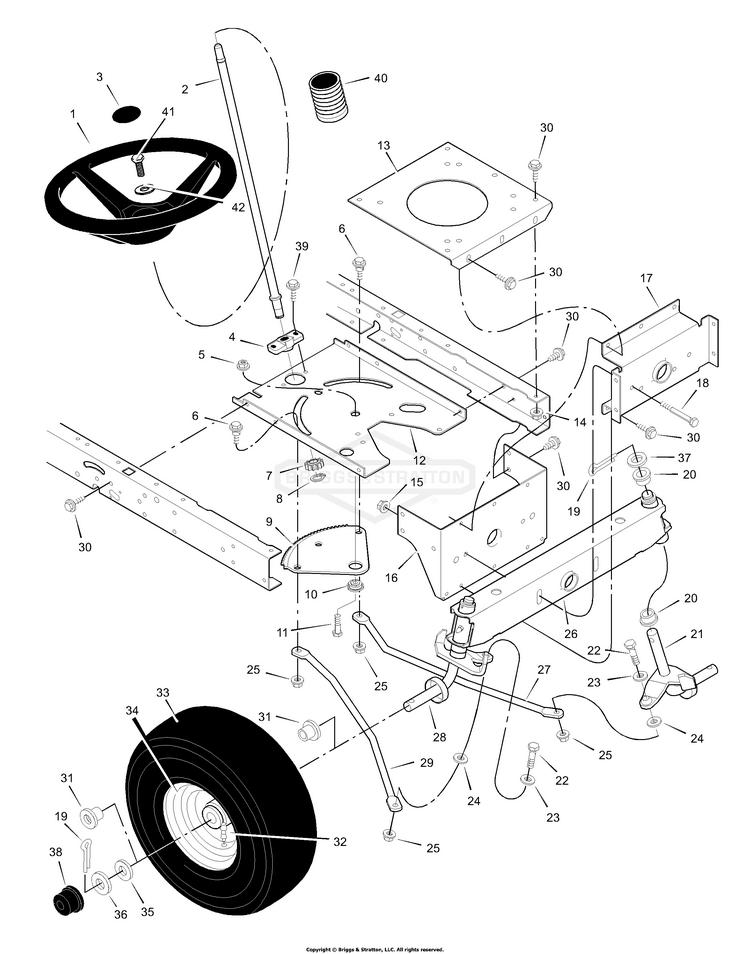

Steering

...
...
1
WHEEL, Steering BS-MU95336
...
2
Post, Steering BS-MU690626
...
3
Insert, Steering Wheel BS-MU95338
...
4
BEARING BS-MU94124
...
5
NUT, Flange BS-MU15X111
...
6
BOLT, Shoulder BS-MU9X57
...
7
Gear, Pinion BS-MU690183E700
...
8
Ring, Snap BS-MU11X25
...
9
Gear, Sector BS-MU94121E700
...
10
BEARING BS-MU94123
...
11
BOLT BS-MU1X84
...
12
Plate, Steering BS-MU1001121E700
...
13
Plate, Engine BS-MU94006E700
...
14
NUT, Flange BS-MU15X88
...
15
NUT, Flange BS-MU15X118
...
16
BRACKET, Hanger BS-MU1001270E700
...
17
Axle, Hanger BS-MU94007E700
...
18
BOLT BS-MU1X146
...
19
PIN, Cotter BS-MU30X49
...
20
BEARING BS-MU690150
...
21
Spindle Assembly, Left BS-MU1001299E700
...
22
BOLT BS-MU1X111
...
23
WASHER BS-MU17X104
...
24
WASHER BS-MU17X53 Z
...
25
NUT, Flange BS-MU15X84
...
26
Axle Assembly BS-MU690210MA
...
27
Drag Link, Left BS-MU95329E700
...
28
Spindle Assembly, Right BS-MU1001298E700
...
29
Drag Link, Right BS-MU95328E700
...
30
SCREW BS-MU26X249
...
31
BEARING, Wheel BS-MU91334
...
32
Stem, Valve BS-MU24373
...
33
Tire (When you order a tire, make sure to give the brand name of the tire so that the tread pattern on the tire will match.) BS-MU090594MA
...
--
Tube BS-MU407046
...
34
WHEEL & TIRE ASSEMBLY BS-MU690377601
...
35
WASHER BS-MU17X195
...
36
WASHER BS-MU17X113
...
37
WASHER BS-MU17X83
...
38
Hub Cap BS-MU94618
...
39
SCREW BS-MU26X267
...
40
Bellows BS-MU54789
...
41
BOLT BS-MU25X3
...
42
WASHER BS-MU17X146
