312001x11B Murray - Lawn Tractor (2003)

Model: 312001x11B

Back To Assemblies

Save Part Not Listed?
product name

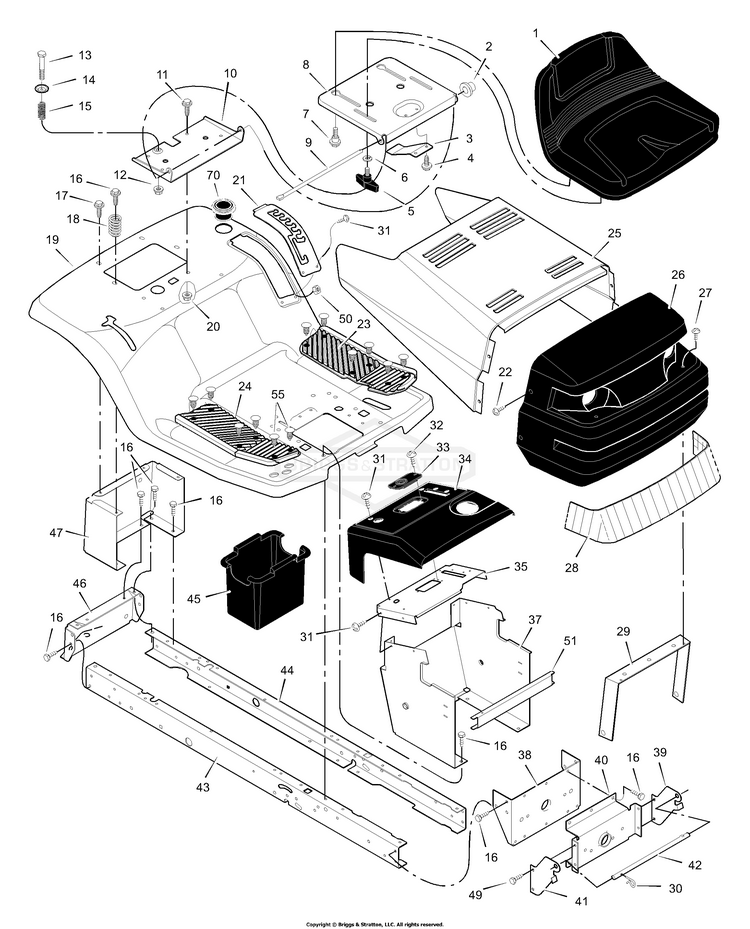

Chassis & Hood

...
...
1
Seat BS-MU690566
...
2
Cap, Push On BS-MU28X23
...
3
SPRING BS-MU94057
...
4
SCREW BS-MU26X229
...
5
BOLT, Wing BS-MU1001054
...
6
WASHER BS-MU17X47 Z
...
7
BOLT, Shoulder BS-MU9X56
...
8
SUPPORT, Seat BS-MU94154E700
...
9
ROD, Pivot BS-MU94156 Z
...
10
BRACKET, Pivot BS-MU94153E700
...
11
BOLT BS-MU1X45
...
12
NUT BS-MU15X89
...
13
BOLT, Shoulder BS-MU9X55
...
14
WASHER BS-MU94155 Z
...
15
SPRING BS-MU164X31
...
16
SCREW BS-MU26X249
...
17
SCREW BS-MU26X263
...
18
SPRING BS-MU164X30
...
19
DECK, Seat BS-MU1001558E549
...
20
NUT BS-MU15X88
...
21
Plate, Index BS-MU94151E700
...
22
SCREW BS-MU9X47
...
23
Mat, Left BS-MU1001582
...
24
Mat, Right BS-MU1001578
...
25
HOOD BS-MU92333E549
...
26
GRILLE, Assembly (Includes Lens) BS-MU92350E700
...
27
SCREW BS-MU26X239
...
28
Lens BS-MU92344
...
29
BRACE, Grille BS-MU92448
...
30
PIN, Hair BS-MU31X4
...
31
SCREW BS-MU26X270
...
32
SCREW BS-MU26X239
...
33
BEARING, Steering BS-MU94214
...
34
DASH BS-MU94218E700
...
35
Plate, Dash BS-MU94211E700
...
36
PANEL, Access BS-MU93007E700
...
37
SUPPORT, Dash BS-MU95323E700
...
38
BRACKET, Rear Hanger BS-MU1001270E700
...
39
SUPPORT, Left Grille BS-MU690544E700
...
40
Axle, Hanger BS-MU94007E700
...
41
SUPPORT, Right Grille BS-MU690543E700
...
42
ROD, Pivot BS-MU92332 Z
...
43
FRAME, Right BS-MU1001268E701
...
44
FRAME, Left BS-MU1001269E701
...
45
Container, Battery BS-MU690424
...
46
Plate, Hitch BS-MU1001002E700
...
47
PANEL, Rear BS-MU690434E700
...
49
NUT BS-MU15X81
...
50
SCREW BS-MU26X277
...
51
Channel BS-MU94215E700
...
55
FASTENER, Panel BS-MU193X1
...
70
Holder, Cup BS-MU1001542
...
--
Instruction Book and Parts List BS-MUF-030731L
