312000x98B Murray - Lawn Tractor (2003)

Model: 312000x98B

Back To Assemblies

Save Part Not Listed?
product name

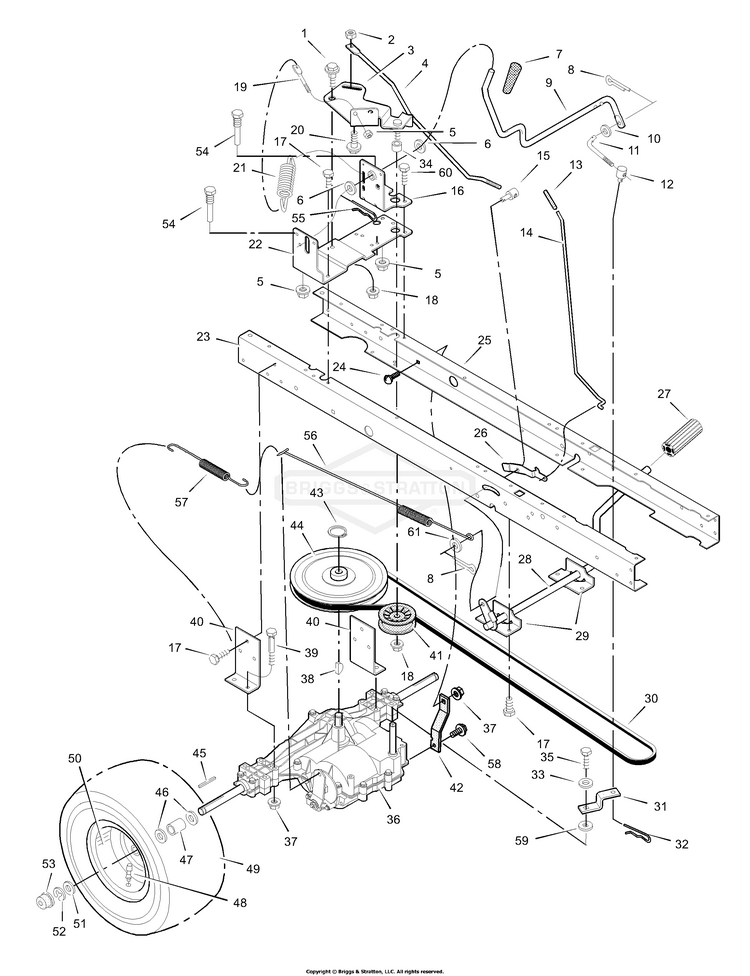

Motion Drive

...
...
1
Bolt, Shoulder BS-009X39MA
...
2
NUT .25-20 FLANGELOCK BS-015X89MA
...
3
Arm, Idler BS-690273
...
4
Rod, Clutch BS-094041 Z
...
5
NUT, 5/16-18, GR5 BS-703409
...
6
WASHER BS-703128
...
7
GRIP BS-1753233YP
...
8
PIN, COTTER, 3/32X.75 BS-703312
...
9
Lever, Shift BS-094043 Z
...
10
WASHER, FLAT 5/16 BS-704015
...
11
Link, Shift BS-094044ZMA
...
12
Nut, Adjuster BS-021920ZMA
...
13
Grip BS-091079MA
...
14
Rod, Parking Brake BS-1001245 Z
...
15
NUT-ADJUSTING BS-094815ZMA
...
16
Bracket, Shift Pivot BS-1001303 Z
...
17
Screw BS-26X249MA
...
18
NUT, CNTR LCK, 3/8-16 BS-703893
...
19
Mount, Stud Spring BS-094042ZMA
...
20
Bolt, Shoulder BS-009X54MA
...
21
Spring, Extension BS-165X116MA
...
22
Bracket, Right Shifter BS-1001302E701
...
23
Frame, Right BS-1001268E701
...
24
BOLT BS-703159
...
25
RAIL-FRAME LH BS-1001269E701MA
...
26
Latch, Parking Brake BS-094045 Z
...
27
PEDAL-BRAKE BLACK RUB BS-1727261SM
...
28
LEVER, BRAKE, CLUTCH BS-7400256ZMA
...
29
Bracket, Pedal BS-1001117E701
...
30
Belt, Motion Drive BS-037X87MA
...
31
Yoke, Shift BS-094031ZMA
...
32
PIN, 3/32 X 1.6 BS-703300
...
33
Washer BS-017X38MA
...
35
Bolt BS-06X105MA
...
37
NUT, HEX FLNG,5/16-18 BS-704067
...
38
Key, Woodruff BS-020697MA
...
39
SCREW BS-703868
...
40
Bracket, Transaxle BS-094008E701MA
...
41
Pulley BS-690409MA
...
42
STRAP, TRANSAXLE, LH BS-7300845BMYP
...
43
E-Ring BS-0011X7MA
...
44
Pulley, Drive BS-095094MA
...
45
Key, Square BS-021553MA
...
46
Washer BS-17X160MA
...
47
SPACER BS-690554ZMA
...
48
VALVE STM&CP,TR41 SE BS-024373MA
...
49
Tire * BS-776114
...
--
Tube BS-407049MA
...
50
Wheel & Tire Assembly BS-690376601
...
51
Washer BS-17X195MA
...
52
RING, E .750D .050T BS-0011X3MA
...
53
HUB CAP BS-094618MA
...
54
GUIDE SCREW - ZINC BS-093349MA
...
55
PIN, 3/32 X 1.6 BS-703300
...
56
Spring, Extension BS-165X141
...
57
Spring, Extension BS-165X92MA
...
58
Screw BS-26X216MA
...
59
Washer BS-17X148MA
...
60
Screw BS-26X267MA
...
61
WASHER, FLAT, .377X1 BS-703966
