309000x8NA Murray - Mid-Engine Rider (MER) (2003)

Model: 309000x8NA

Back To Assemblies

Save Part Not Listed?
product name

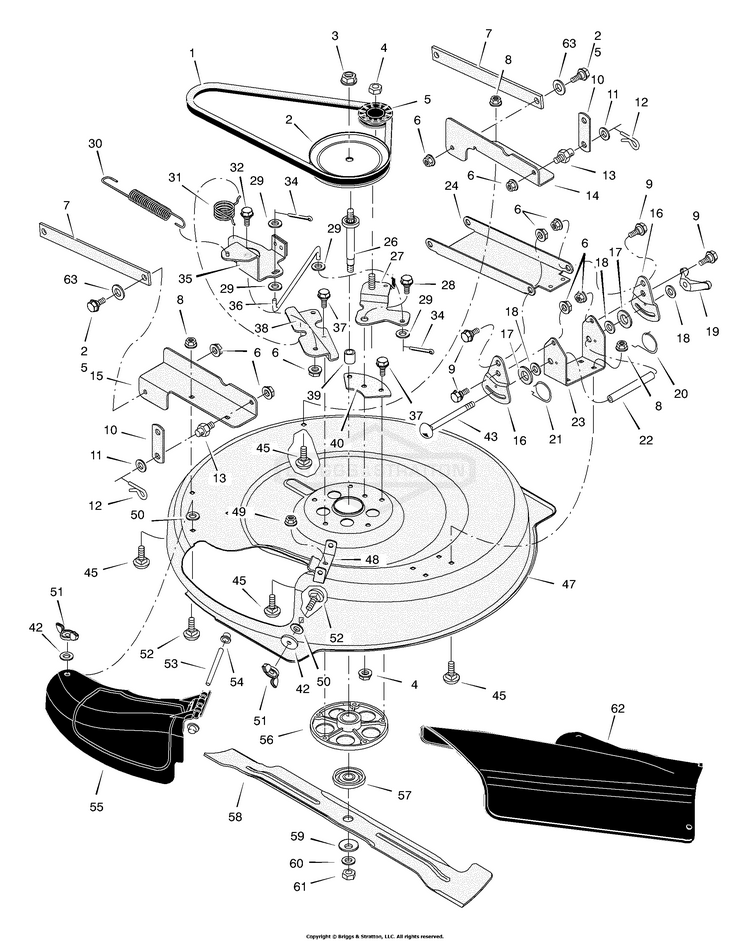

Mower Housing

...
...
1
Belt, Blade Drive BS-37X111MA
...
2
Pulley, Input BS-1401092MA
...
3
Locknut BS-15X140MA
...
4
NUT, CNTR LCK, 3/8-16 BS-703893
...
5
Pulley, Idler BS-1401252MA
...
6
NUT, CNTR LCK, 3/8-16 BS-703893
...
7
Arm, Rear BS-1401031E701MA
...
8
NUT, 5/16-18, GR5 BS-703409
...
9
BOLT, SHOULDER BS-702315
...
10
Link, Lift BS-1401033E701
...
11
WASHER BS-703128
...
12
PIN, 3/32 X 1.6 BS-703300
...
13
PIN, 3/8-16 BS-704054
...
14
Bracket, Left Rear BS-1401047E701
...
15
Bracket, Right Rear BS-1401296E701MA
...
16
Plate, Adjustment BS-1401038E701
...
17
FRICTION PAD BS-094137MA
...
18
WASHER,FLAT .33 1. 16 BS-017X45MA
...
19
Wingnut BS-095004MA
...
20
Spring, Left Torsion BS-166X43MA
...
21
Spring, Right Torsion BS-166X42MA
...
22
Tube, Spacer BS-1401095
...
23
Bracket, Deck BS-1401037E701
...
24
Hanger, Front BS-1401040E701MA
...
25
Bolt, Shoulder BS-009X76
...
26
Shaft, Splined BS-1401065MA
...
27
Arm Assembly, Idler BS-1401258E701MA
...
28
Bolt, Shoulder BS-009X73
...
29
WASHER, FLAT 5/16 BS-704015
...
30
Spring, Extension BS-165X157MA
...
31
Spring, Torsion BS-166X46MA
...
32
Bolt, Shoulder BS-009X73
...
34
PIN, COTTER, 3/32X.75 BS-703312
...
35
Arm Assembly, Brake BS-1401185E701MA
...
36
Link, Idler Arm BS-1401119MA
...
37
SCREW-HEX WSHR HD TAP BS-2828635SM
...
38
Bracket, Brake Mounting BS-1401052E701
...
39
Spacer, Jackshaft BS-1401094MA
...
40
Plate, Idler Mounting BS-1401259 Z
...
42
Washer BS-019X45MA
...
43
Bolt, Carriage BS-002X94MA
...
45
BOLT BS-703159
...
47
Housing, Blade BS-1401028E701
...
48
Hinge, Mulching Cover BS-1401106E701
...
49
NUT, HEX FLNG,5/16-18 BS-704067
...
50
NUT,SPEED BS-028X76MA
...
51
NUT BS-703141
...
52
BOLT, Round Head, Short Square Neck BS-703185
...
53
Rod, Chute Deflector BS-091767
...
54
PUSHNUT, 3/8 BS-703948
...
55
Cover, Mulch (Black) BS-1401080MA
...
56
Mandrel Housing BS-1401275
...
57
Adapter, Blade BS-1001035
...
58
SINGLE BLADE BS-1401079E701MA
...
59
Washer, Cup BS-17X166MA
...
60
Washer BS-17X165MA
...
61
Nut, Blade Mount BS-15X100MA
...
62
Deflector, Chute (Black) BS-1401081MA
...
63
Washer BS-17X120MA
