309000x8NA Murray - Mid-Engine Rider (MER) (2003)

Model: 309000x8NA

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

Steering

...
...
1
WHEEL, Steering BS-1687602YP
...
2
Insert, Steering BS-711326MA
...
3
Console, Low (Black) BS-1401044MA
...
4
SCREW, Thread Forming BS-26X270MA
...
5
Bearing, Upper Steering BS-1401090MA
...
6
Tube, Steering (Black) BS-1401226MA
...
7
Shaft, Steering BS-1401100MA
...
8
Support, Steering BS-1401055E701MA
...
9
Screw BS-26X249MA
...
10
Bolt, Shoulder BS-009X67MA
...
11
Bearing, Lower Steering BS-1401098MA
...
12
Roller BS-1401102MA
...
13
Plate, Gear Mounting BS-1401058E701MA
...
14
Link, Drag BS-1401123E701MA
...
15
NUT, CNTR LCK, 3/8-16 BS-703893
...
16
WASHER, FLAT BS-710083MA
...
17
NUT, HEX FLNG,5/16-18 BS-704067
...
18
CAPSCREW,3/8-16X1.5 BS-703406
...
19
WASHER, 1-1.3 16G FLT BS-17X118
...
20
Gear, Pinion BS-1401099MA
...
21
Bolt, Hex BS-01X146MA
...
22
E-Ring, Retainer BS-011X28
...
23
Pin, Cotter BS-030X35MA
...
24
Retainer, Spring BS-094131MA
...
25
Rack, Steering BS-1401046
...
26
Washer BS-17X201MA
...
27
Bracket, Axle Front BS-1401060E701
...
28
WASHER, 0.641 x 1.38 BS-17X157MA
...
29
Axle & Spindle Assembly BS-1401250E701MA
...
30
Bracket, Support BS-1401059E701
...
31
NUT, 5/16-24 Hex Flange Lock, BZ BS-704279
...
32
Wheel, Front BS-1401289
...
33
Washer BS-17X197MA
...
34
WASHER, 0.641 x 1.38 BS-17X157MA
...
35
HUB CAP BS-094618MA
...
36
Screw, Hex BS-0025X3MA
...
37
WASHER, 5/16 x 1-1/4 OD BS-1933468SM

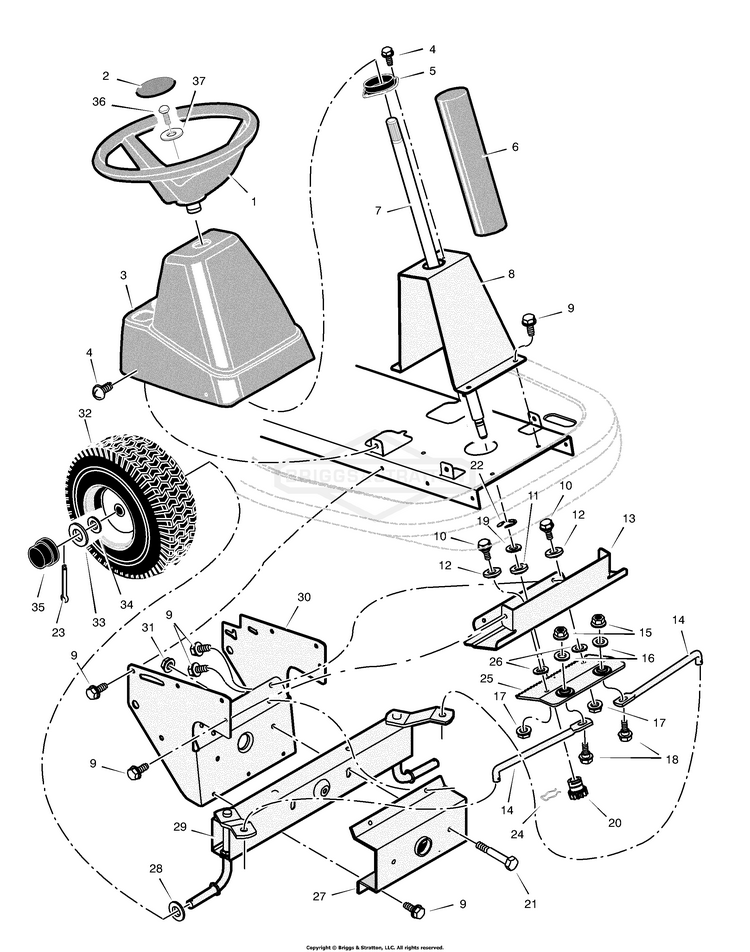

Schematic Image Zoomed
