309000x8NA Murray - Mid-Engine Rider (MER) (2003)

Model: 309000x8NA

Back To Assemblies

Save Part Not Listed?
product name

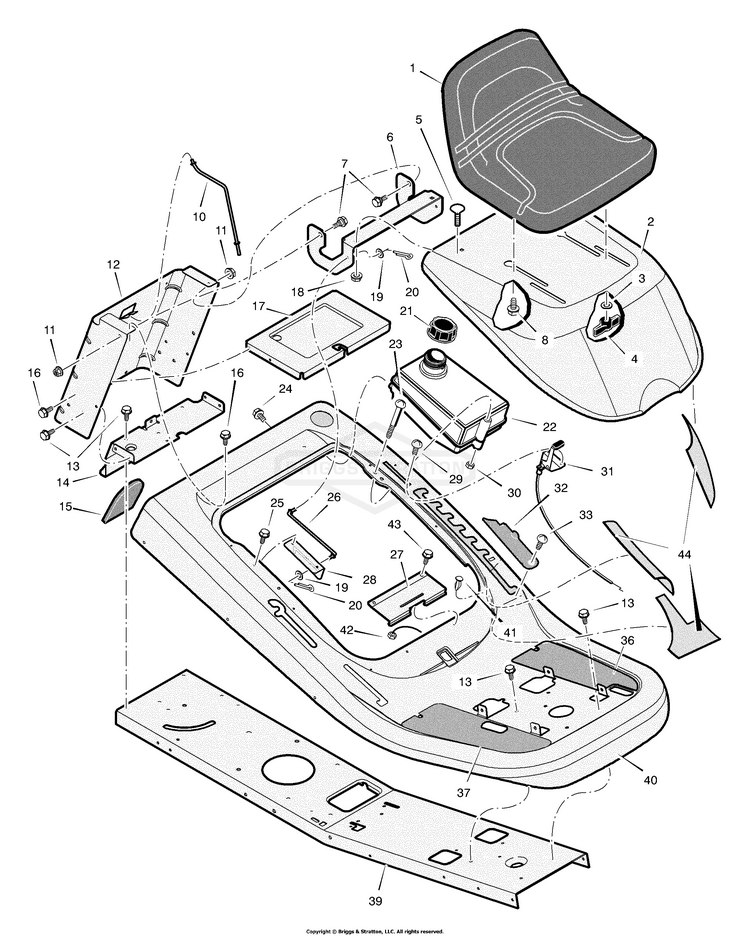

Chassis & Hood

...
...
1
SEAT ADAPTOR KIT BS-1687498YP
...
2
Hood BS-1401027E700
...
3
WASHER, FLAT 5/16 BS-704015
...
4
Bolt, Wing BS-1001054MA
...
5
BOLT BS-703159
...
6
BRACKET, Hinge BS-1401378E701MA
...
7
Bolt, Shoulder BS-009X29MA
...
8
Bolt, Shoulder BS-009X56MA
...
10
Rod, Battery BS-1401113MA
...
11
NUT, CNTR LCK, 3/8-16 BS-703893
...
12
Plate, Rear BS-1401025E701
...
13
Screw BS-26X249MA
...
14
PLATE, Hitch BS-1401050E701MA
...
15
Cover BS-1401086MA
...
16
SCREW.25-20 S-T BS-26X263MA
...
17
TRAY, Battery BS-1401076E701MA
...
18
NUT, 5/16-18, GR5 BS-703409
...
19
WASHER BS-703332
...
20
PIN, COTTER, 3/32X.75 BS-703312
...
21
FUEL CAP BS-092317MA
...
22
Tank, Fuel BS-1401240
...
23
Screw BS-06X111
...
24
Screw BS-26X253MA
...
25
SCREW.25-20 S-T BS-26X263MA
...
26
Rod, Hood Prop BS-1401110MA
...
27
Spring, Seat Deck BS-1401282MA
...
28
Bracket, Prop Rod BS-1401297E701MA
...
29
Screw BS-26X201MA
...
30
NUT, 1/4-20, NYLOCK BS-703232
...
31
Control, Throttle BS-1401248MA
...
32
Cover, Detent (Black) BS-1401084MA
...
33
Bolt, Shoulder BS-009X47MA
...
36
Footmat, Left (Black) BS-1401229
...
37
Footmat, Right (Black) BS-1401228
...
39
Frame BS-1401298E701
...
40
Deck, Seat BS-1401026E700
...
41
Bumper BS-094744
...
42
NUT, 1/4-20, NYLOCK BS-703232
...
43
SCREW, HEX, 1/4-20X.5 BS-704130
...
44
Kit, Foil Heat Shield BS-7601036
...
--
Parts Bag, Assy BS-1401239MA
...
--
Book, Instruction BS-F-030616C
