309000x8NA Murray - Mid-Engine Rider (MER) (2003)

Model: 309000x8NA

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

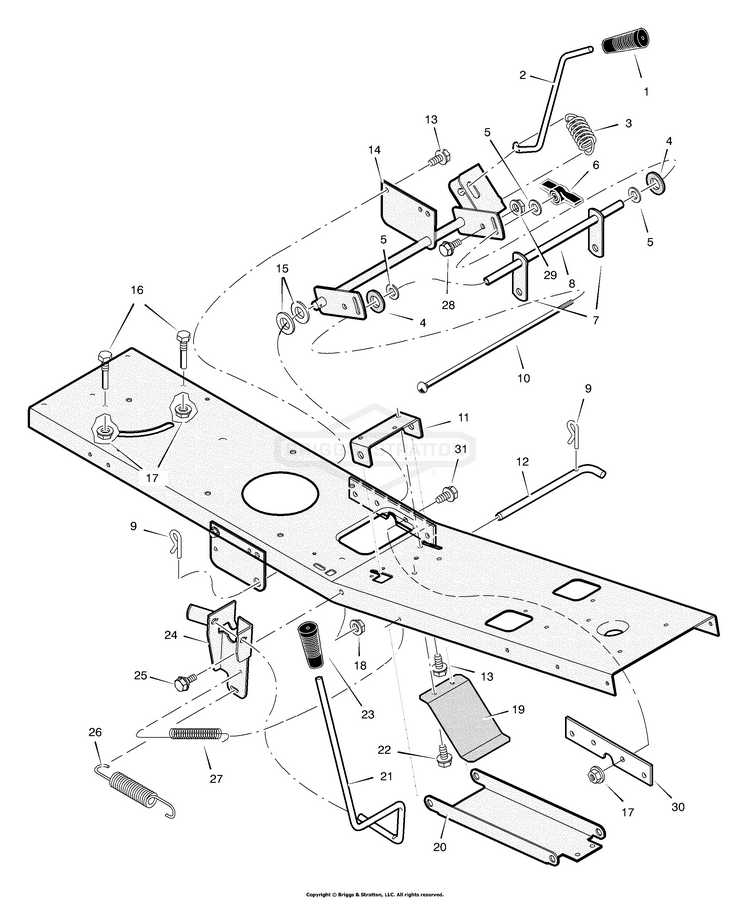

Mower Housing Suspension

...
...
1
GRIP BS-1753233YP
...
2
Lever, Lift BS-1401117
...
3
SPRING, Extension BS-165X154MA
...
4
FRICTION PAD BS-094137MA
...
5
WASHER,FLAT .33 1. 16 BS-017X45MA
...
6
Wingnut BS-095004MA
...
7
Link, Lift BS-1401033E701
...
8
Tube, Spacer BS-1401096
...
9
PIN, 3/32 X 1.6 BS-703300
...
10
Bolt, Carriage BS-002X93
...
11
BRACKET, Front Hanger Pivot BS-1401030E701MA
...
12
Pin, Front Hanger BS-1401118MA
...
13
Screw BS-26X267MA
...
14
Arm Assembly, Lifter BS-1401262E701
...
15
Washer BS-17X206
...
16
GUIDE SCREW - ZINC BS-093349MA
...
17
NUT, 5/16-18, GR5 BS-703409
...
18
NUT, CNTR LCK, 3/8-16 BS-703893
...
19
Spring, Leaf BS-1401147
...
20
Hanger, Front BS-1401040E701MA
...
21
Lever, PTO BS-1401116
...
22
Screw BS-26X229MA
...
23
GRIP-SHIFT LEVER-.437 BS-094198MA
...
24
Bracket, PTO BS-1401199E701
...
25
BOLT, 3/8-16 X .925 BS-704206
...
26
Spring, Extension BS-165X157MA
...
27
Spring, Extension BS-165X92MA
...
28
BOLT, SHOULDER BS-702315
...
29
NUT, CNTR LCK, 3/8-16 BS-703893
...
30
Plate, Reinforcement BS-1401260E701
...
31
Screw BS-26X267MA
