309000x8NA Murray - Mid-Engine Rider (MER) (2003)

Model: 309000x8NA

Back To Assemblies

Save Part Not Listed?
product name

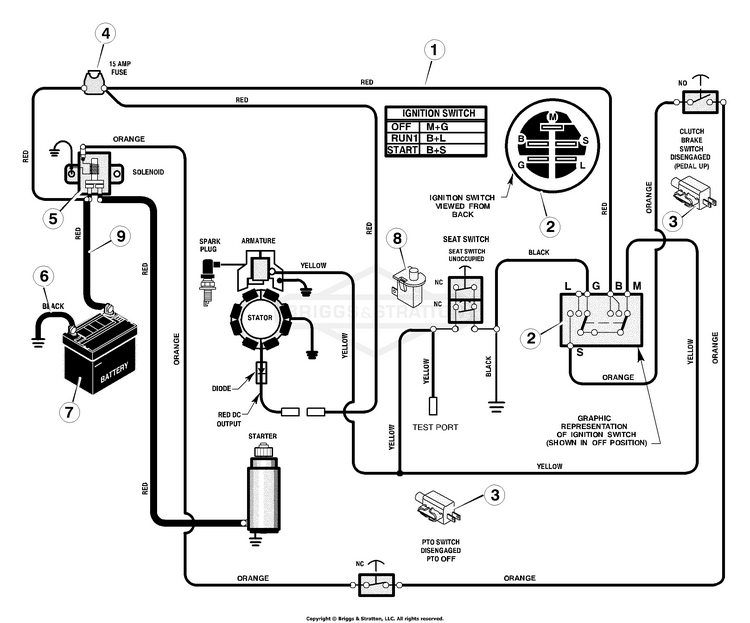

Electrical System

...
...
1
Harness, Chassis Wire BS-250X115MA
...
2
Switch, Ignition BS-1401149MA
...
--
Key, Ignition BS-327349MA
...
3
Switch, Limit BS-1001575MA
...
4
Fuse BS-054212
...
--
Holder, Fuse BS-407078MA
...
5
Solenoid BS-094613
...
--
Screw, Mounting BS-26X229MA
...
--
NUT, 1/4-20, NYLOCK BS-703232
...
6
CABLE, GROUND SM RID BS-24X37MA
...
7
Battery BS-092739
...
--
BOLT, 1/4-20X0.625 BS-703841
...
--
Wingnut BS-014X79MA
...
8
SWITCH, SEAT BS-7023354YP
...
9
Cable, Red Battery BS-024X24MA
...
--
BOOT, POSITIVE TERMIN BS-690604MA
Schematic Image Zoomed
