30560x99A Murray - Lawn Tractor (1998)

Model: 30560x99A

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

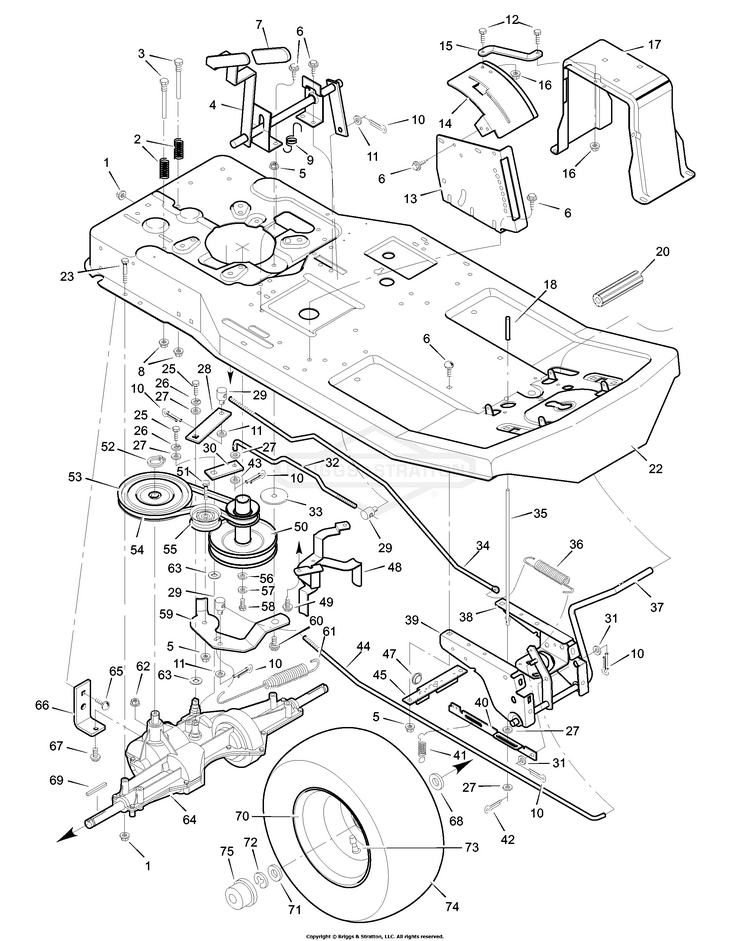

Motion Drive

...
...
1
NUT, HEX FLNG,5/16-18 BS-704067
...
2
Spring, Compression BS-0164X1MA
...
3
Guide, Belt BS-055826
...
4
Shifter Assembly BS-56610E700
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Screw BS-26X267MA
...
7
Grip, Shift Lever BS-091573
...
8
Hex Nut BS-15X115MA
...
9
Spring, Extension BS-165X100
...
10
PIN, COTTER, 3/32X.75 BS-703312
...
11
WASHER, FLAT .406X.81 BS-71072MA
...
12
Bolt, Hex BS-001X38MA
...
13
Plate, Index BS-056595E700
...
14
Gate, Shift BS-056606E700
...
15
Brace, Shift Gate BS-056529E700
...
16
NUT .25-20 FLANGELOCK BS-015X89MA
...
17
Support, Seat BS-056517E700
...
18
Grip, Parking Brake BS-055873
...
20
Pedal, Rubber BS-055825MA
...
22
Frame Assembly BS-56611E276
...
23
Bolt, Hex BS-01X124
...
25
Bolt, Hex BS-01X145MA
...
26
Lockwasher BS-018X32MA
...
27
Washer BS-017X36MA
...
28
Yoke, Brake BS-056500 Z
...
29
Nut, Adjusting BS-021920ZMA
...
30
Yoke, Shift BS-056505 Z
...
31
WASHER, FLAT 5/16 BS-704015
...
32
Rod, Shift BS-056591 Z
...
33
WASHER, Flat BS-17X174ZMA
...
34
Rod, Brake BS-056530 Z
...
35
Rod, Parking Brake BS-056566 Z
...
36
Spring, Extension BS-165X85MA
...
37
Lever, Pedal BS-056511E700
...
38
Plate, Left Suspension BS-56224E700
...
39
Plate, Right Suspension BS-056023E700
...
40
Link, Parking Brake BS-056565 Z
...
41
Spring, Extension BS-165X107MA
...
42
Pin, Cotter BS-030X50
...
43
Washer BS-017X46 Z
...
44
Rod, Clutch BS-056531 Z
...
45
Stop, Parking Brake BS-56227E700
...
47
Grommet BS-056623MA
...
48
Guide, Belt BS-056215 Z
...
49
Screw BS-026X49MA
...
50
Pulley Assembly, Stack BS-092247SEMA
...
51
CAPSCREW,3/8-16X1.5 BS-703406
...
52
Ring, Retainer BS-0011X7MA
...
53
Pulley, Drive BS-056562MA
...
54
Belt, Motion Drive BS-037X65MA
...
55
Pulley, Idler BS-056526MA
...
56
WASHER.46.97.25 FLAT BS-17X170MA
...
57
Lockwasher BS-019X35MA
...
58
Bolt, Hex BS-01X140MA
...
59
Bracket, Idler BS-1001034E700MA
...
60
BOLT, 3/8-16 X .925 BS-704206
...
61
Spring, Extension BS-165X81MA
...
62
NUT BS-703164
...
63
Washer BS-17X148MA
...
65
BOLT BS-703159
...
66
Bracket, Transaxle BS-056503 Z
...
67
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
68
Washer BS-17X160MA
...
69
Key, Square BS-056534MA
...
70
Wheel & Tire Assembly BS-92308601
...
71
Washer BS-17X195MA
...
72
RING, E .750D .050T BS-0011X3MA
...
73
VALVE STM&CP,TR41 SE (Included with Ref. No. 70) BS-024373MA
...
74
Tire * (Included with Ref. No. 70) BS-024393MA
...
75
HUB CAP (Optional) BS-094618MA
