30550x30A Murray - Lawn Tractor (1998)

Model: 30550x30A

Save Part Not Listed?
product name

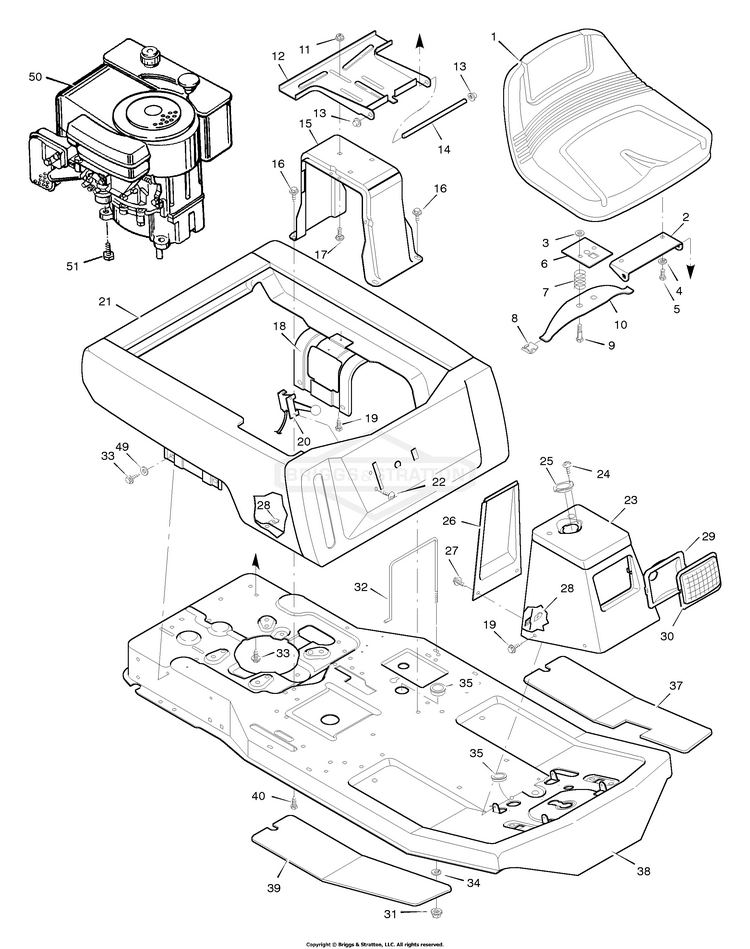

Body Chassis

...
...
1
Seat BS-091965
...
2
Hinge, Seat BS-56516E701
...
3
RETAINER, GR5, 5/16 BS-703297
...
4
Lockwasher BS-018X16MA
...
5
CAPSCREW,5/16-18X.625 BS-703822
...
6
Plate, Seat Switch BS-091963 Z
...
7
Spring, Compression BS-164X26MA
...
8
Glide, Seat Spring BS-091822MA
...
9
Bolt, Shoulder BS-009X38MA
...
10
Spring, Seat BS-091964MA
...
11
NUT, HEX FLNG,5/16-18 BS-704067
...
12
Bracket, Seat Pivot BS-56518E701
...
13
PUSHNUT, 3/8 BS-703948
...
14
Rod, Seat Hinge BS-056537 Z
...
15
Support, Seat BS-56517E701
...
16
Screw BS-26X249MA
...
17
BOLT BS-703159
...
18
Support, Body (Included with Ref. No. 21) BS-55017E701
...
19
Screw BS-26X214MA
...
20
Throttle Control BS-056598MA
...
21
Body BS-054766E245
...
22
Screw BS-26X201MA
...
23
Console Assembly BS-056570E245
...
24
Screw BS-26X201MA
...
25
Bearing, Steering Post BS-056022MA
...
26
Console, Plate BS-055023E700
...
27
Screw BS-004X24MA
...
28
J- Nut BS-028X18
...
29
Reflector BS-056241 Z
...
30
Lens BS-090082MA
...
31
NUT, HEX, KEPS,1/4-20 BS-703914
...
32
Clamp, Battery BS-054800 Z
...
33
Screw BS-026X49MA
...
34
Washer BS-017X38 Z
...
35
Grommet BS-021268
...
37
Mat, Left BS-056107
...
38
Frame Assembly BS-56611E245
...
39
Mat, Right BS-056106
...
40
Screw BS-006X74MA
...
49
Washer BS-0019X6
...
51
SCREW-HEX WSHR HD TAP BS-2828635SM
...
--
Owner's Manual, English BS-F-98615
...
--
Owner's Manual, French BS-F-98615FR
...
--
Parts List BS-F-98616
...
--
Decal, Clutch/Brake BS-44X6554

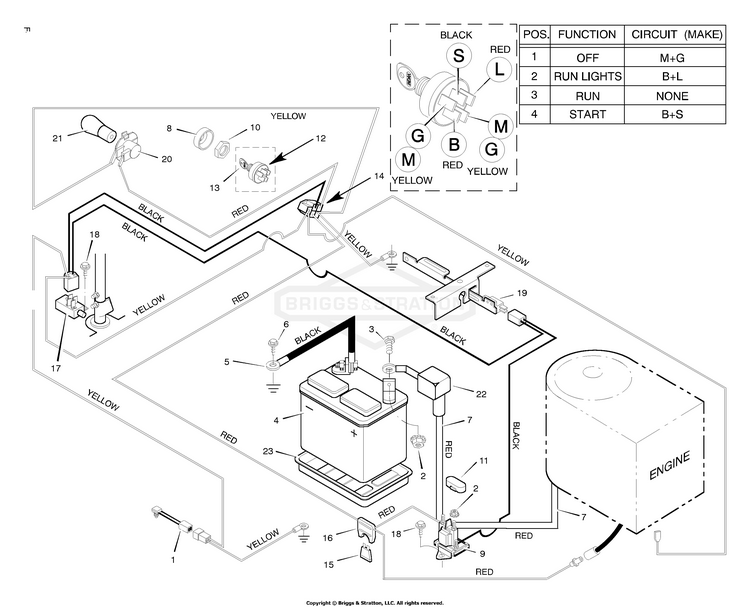

Electrical System

...
...
1
Switch, Seat Sensor BS-091031
...
2
NUT, HEX, KEPS,1/4-20 BS-703914
...
3
Bolt BS-001X38MA
...
4
Battery BS-091414
...
--
Acid, Battery (Electrolyte) BS-093292
...
5
Cable, Battery Ground BS-0024X3MA
...
6
Screw BS-026X49MA
...
7
Cable, Red Battery BS-024X24MA
...
8
CAP, Switch BS-847150
...
9
Solenoid BS-024285
...
10
SET, Washer/Nut BS-847144
...
11
Cover, Solenoid BS-056049
...
12
Switch, Ignition BS-091846MA
...
13
Key, Ignition BS-020729
...
14
Harness, Chassis Wire BS-250X41
...
15
Fuse BS-054212
...
16
Holder, Fuse BS-407078MA
...
17
Switch, Limit BS-091032MA
...
18
Screw BS-26X233MA
...
19
SWITCH, PLUNGER, N.O. BS-5021451SM
...
20
Socket, Light BS-092372
...
21
BULB-HEADLIGHT 1 BS-1677371SM
...
22
Cover, Terminal BS-054148MA
...
23
Tray, Battery BS-091896MA

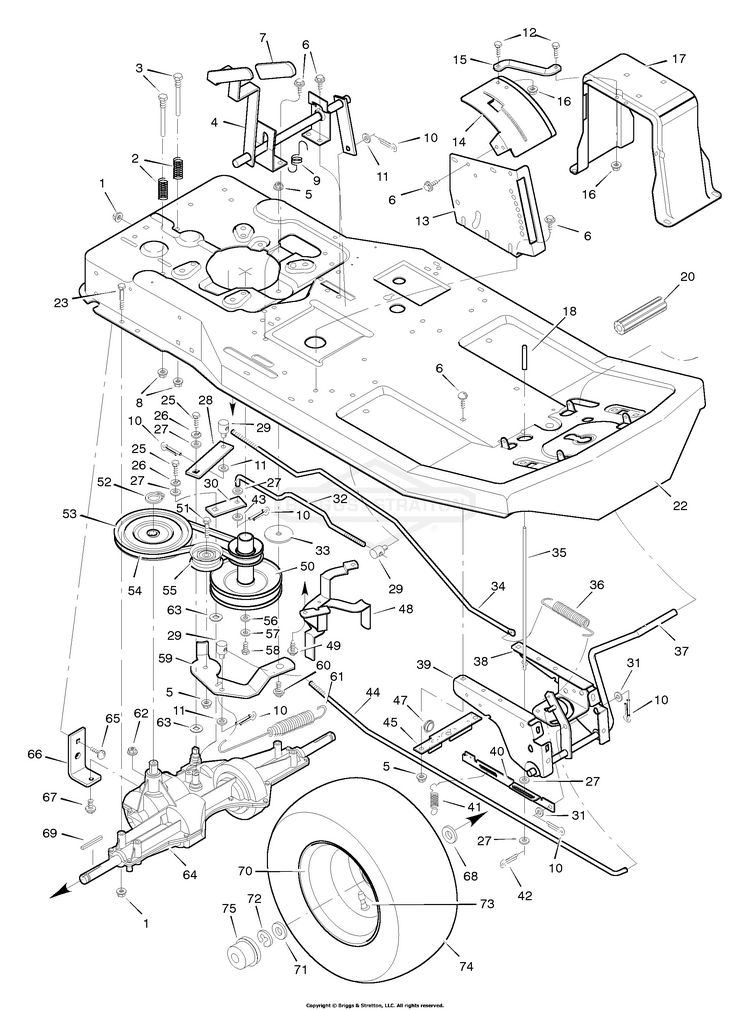

Motion Drive

...
...
1
NUT, HEX FLNG,5/16-18 BS-704067
...
2
Spring, Compression BS-0164X1MA
...
3
Guide, Belt BS-055826
...
4
Shifter Assembly BS-056610E701MA
...
5
NUT, CNTR LCK, 3/8-16 BS-703893
...
6
Screw BS-26X267MA
...
7
Grip, Shift Lever BS-091573
...
8
Hex Nut BS-15X115MA
...
9
Spring, Extension BS-165X100
...
10
PIN, COTTER, 3/32X.75 BS-703312
...
11
WASHER, FLAT .406X.81 BS-71072MA
...
12
Bolt, Hex BS-001X38MA
...
13
Plate, Index BS-56595E701
...
14
Gate, Shift BS-56606E701
...
15
Brace, Shift Gate BS-56529E701
...
16
NUT .25-20 FLANGELOCK BS-015X89MA
...
17
Support, Seat BS-56517E701
...
18
Grip, Parking Brake BS-055873
...
20
Pedal, Rubber BS-055825MA
...
22
Frame Assembly BS-56611E245
...
23
Bolt, Hex BS-01X124
...
25
Bolt, Hex BS-01X145MA
...
26
Lockwasher BS-018X32MA
...
27
Washer BS-017X36MA
...
28
Yoke, Brake BS-056500 Z
...
29
Nut, Adjusting BS-021920ZMA
...
30
Yoke, Shift BS-056505 Z
...
31
WASHER, FLAT 5/16 BS-704015
...
32
Rod, Shift BS-056591 Z
...
33
Washer, Hardened BS-17X174 Z
...
34
Rod, Brake BS-056530 Z
...
35
Rod, Parking Brake BS-056566 Z
...
36
Spring, Extension BS-165X85MA
...
37
Lever, Pedal BS-56511E701
...
38
Plate, Left Suspension BS-56224E701
...
39
Plate, Right Suspension BS-56023E701
...
40
Link, Parking Brake BS-056565 Z
...
41
Spring, Extension BS-165X107MA
...
42
Pin, Cotter BS-030X50
...
43
Washer BS-017X46 Z
...
44
Rod, Clutch BS-056531 Z
...
45
Stop, Parking Brake BS-56227E701
...
47
Grommet BS-056623MA
...
48
Guide, Belt BS-056215 Z
...
49
Screw BS-026X49MA
...
50
Pulley Assembly, Stack BS-092247SEMA
...
51
CAPSCREW,3/8-16X1.5 BS-703406
...
52
Ring, Retainer BS-0011X7MA
...
53
Pulley, Drive BS-056562MA
...
54
Belt, Motion Drive BS-037X65MA
...
55
Pulley, Idler BS-056526MA
...
56
WASHER.46.97.25 FLAT BS-17X170MA
...
57
Lockwasher BS-019X35MA
...
58
Bolt, Hex BS-01X140MA
...
59
Bracket, Idler BS-1001034E700MA
...
60
BOLT, 3/8-16 X .925 BS-704206
...
61
Spring, Extension BS-165X81MA
...
62
NUT BS-703164
...
63
Washer BS-17X148MA
...
65
BOLT BS-703159
...
66
Bracket, Transaxle BS-56503E701
...
67
CAPSCREW, Hex Head, 5/16-18 x 1 1/4 BS-703570
...
68
Washer BS-17X160MA
...
69
Key, Square BS-056534MA
...
70
Wheel & Tire Assembly BS-92308601
...
71
Washer BS-17X195MA
...
72
RING, E .750D .050T BS-0011X3MA
...
73
VALVE STM&CP,TR41 SE (Included with Ref. No. 70) BS-024373MA
...
74
Tire * (Included with Ref. No. 70) BS-024393MA
...
75
HUB CAP (Optional) BS-094618MA

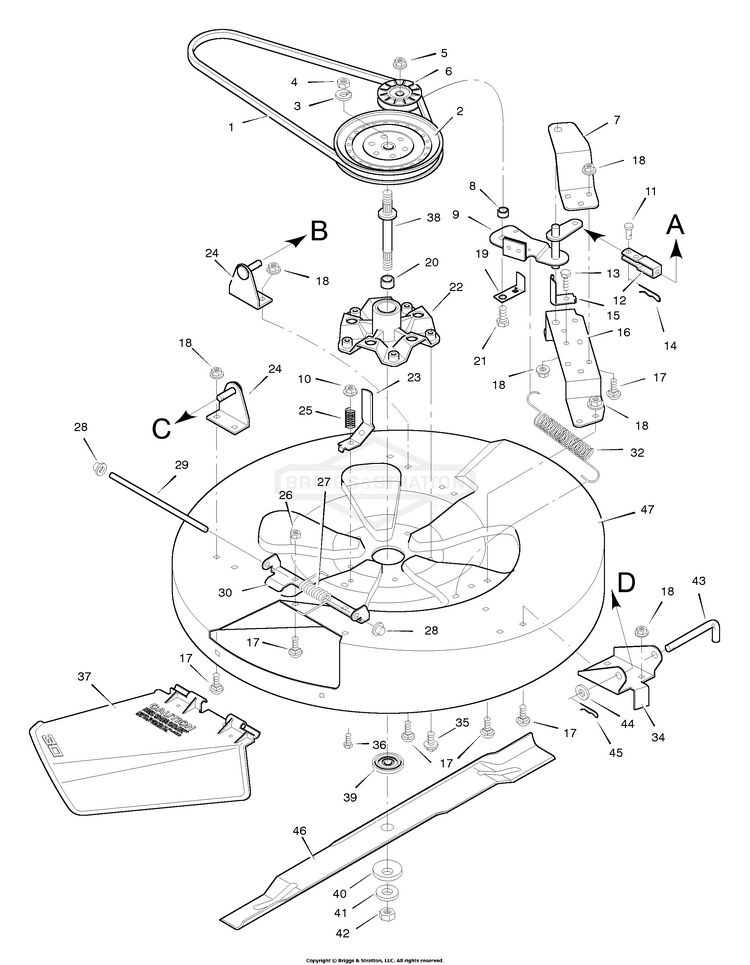

Mower Housing

...
...
1
Belt, Mower Drive BS-037X57MA
...
2
Pulley, Splined BS-091951
...
3
Lockwasher BS-018X33MA
...
4
Locknut, Hex BS-15X100MA
...
5
Nut, Hex BS-015X41MA
...
6
Pulley, Idler BS-091178
...
7
Bracket, Upper Idler BS-055921E700
...
8
Spacer BS-055895MA
...
9
Assembly, Blade Idler BS-55979E701
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Pin, Clevis BS-029X99MA
...
12
Clevis BS-024471 Z
...
13
CAPSCREW,5/16-18X.625 BS-703822
...
14
PIN, 3/32 X 1.6 BS-703300
...
15
Guide, Belt BS-55977E701
...
16
Bracket, Lower Idler BS-055920E701
...
17
BOLT BS-703159
...
18
NUT, 5/16-18, GR5 BS-703409
...
19
Guide, Belt BS-55894E701
...
20
Spacer BS-091925MA
...
21
Bolt, Hex BS-01X127MA
...
22
Housing, Mandrel BS-055962
...
23
Guide, Belt BS-055956 Z
...
24
Bracket, Hanger BS-55974E701
...
25
Spring, Compression BS-0164X1MA
...
26
NUT, HEX FLNG,5/16-18 BS-704067
...
27
Spring - Torsional BS-0166X4MA
...
28
PUSHNUT, 3/8 BS-703948
...
29
Rod BS-021197 Z
...
30
Hinge, Chute Deflector BS-56213E701
...
32
Spring, Extension BS-165X68MA
...
34
Bracket, Front BS-55916E701
...
35
Screw BS-26X216MA
...
36
Bolt, Hex BS-001X75MA
...
37
Deflector, Chute BS-055971MA
...
38
Mandrel BS-091921
...
39
Adapter, Blade BS-092466MA
...
40
Washer, Belleville BS-17X166MA
...
41
Washer, Hardened BS-17X165MA
...
42
Nut, Hex BS-15X100MA
...
43
Pin, Pull BS-090828 Z
...
44
Washer BS-017X67 Z
...
45
PIN, 3/32 X 1.6 BS-703300
...
46
Blade, Standard BS-56246E701
...
--
Mower Housing, Complete (Includes Ref. No's. 1-47) BS-403330

Mower Housing Suspension

...
...
1
NUT, CNTR LCK, 3/8-16 BS-703893
...
2
WASHER, FLAT .406X.81 BS-71072MA
...
3
PIN, COTTER, 3/32X.75 BS-703312
...
4
Screw BS-26X249MA
...
5
Bolt, Shoulder BS-009X39MA
...
6
Nut, Adjusting BS-021920ZMA
...
7
GRIP BS-1753233YP
...
8
Lever Assembly, Lift BS-56031E701
...
9
Grip, Lift Lever BS-091573
...
10
Attachment, Clutch BS-055927 Z
...
11
Bolt, Hex BS-001X76MA
...
12
NUT, HEX, KEPS,1/4-20 BS-703914
...
13
NUT .25-20 FLANGELOCK BS-015X89MA
...
14
Cam, Blade Control BS-055853MA
...
15
Plate, Left Suspension BS-56224E701
...
16
Screw BS-26X249MA
...
17
NUT, HEX FLNG,5/16-18 BS-704067
...
18
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
19
Strut, Frame BS-55326E701
...
20
Plate, Mounting BS-55270E701
...
21
Rod Assembly, Rear Suspension BS-55346E701
...
22
Bolt, Shoulder BS-0009X4MA
...
23
PIN, 3/32 X 1.6 BS-703300
...
24
Plate, Adjusting BS-55344E701
...
25
Rod, Lifter BS-24839E701
...
27
Rod, Suspension BS-55957E701
...
28
Clevis BS-024471 Z
...
29
Nut, Hex BS-0015X2MA
...
30
Link, Blade Drive BS-055271 Z
...
31
Washer BS-017X48MA
...
32
Rod and Arm Assembly BS-55930E701
...
33
Spring, Extension BS-165X67MA
...
34
Link, Front Deck BS-55179E701
...
35
Bracket, Front Suspension BS-55139E701
...
36
Lever, Pedal BS-56511E701
...
37
Washer BS-17X122
...
38
Clevis BS-055298
...
39
Locknut, Hex BS-015X73
...
40
Bolt, Shoulder BS-009X17MA
...
41
Plate, Right Suspension BS-56023E701
...
42
CAPSCREW,5/16-18X.625 BS-703822
...
43
Plate, Index BS-56595E701

Steering

...
...
1
Steering Wheel BS-92076
...
3
Bolt, Hex BS-01X102
...
4
NUT, HEX FLNG,5/16-18 BS-704067
...
5
Post, Steering BS-91444C
...
6
NUT, HEX FLNG,5/16-18 BS-704067
...
7
WASHER, FLAT 5/16 BS-704015
...
10
Screw BS-26X267MA
...
11
Plate, Left Suspension BS-56224E701
...
13
Plate, Right Suspension BS-56023E701
...
14
Bolt, Hex BS-001X69
...
15
Support, Front Axle BS-56231E701
...
16
Pin, Cotter BS-030X49MA
...
17
Bearing, Spindle BS-055003MA
...
19
Gear, Pinion BS-056057MA
...
20
Axle Assembly, Front BS-56223E701
...
21
Hanger Assembly, Front Axle BS-56230E701
...
22
Bearing BS-055168MA
...
23
Sector Assembly BS-56236E701
...
24
Rod, Drag Link BS-56625E701
...
25
Ball Joint, Steering BS-021031MA
...
26
Nut, Hex BS-015X61MA
...
27
Locknut, Flange BS-015X87
...
28
Washer BS-017X87
...
30
WASHER, FLAT .406X.81 BS-71072MA
...
32
PIN, COTTER, 3/32X.75 BS-703312
...
34
Spindle Assembly, Left BS-55039E701
...
35
Rod, Tie BS-55026E701
...
36
Spindle Assembly, Right BS-55038E701
...
37
Bearing, Wheel (Included with Ref. No. 40) BS-056105MA
...
38
Tire BS-055700MA
...
39
VALVE STM&CP,TR41 SE (Included with Ref. No. 40) BS-024373MA
...
40
Wheel & Tire Assembly BS-92303601
...
41
Washer BS-17X197MA
...
42
HUB CAP (Optional) BS-094618MA
