30550H Murray - Lawn Tractor (1998)

Model: 30550H

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

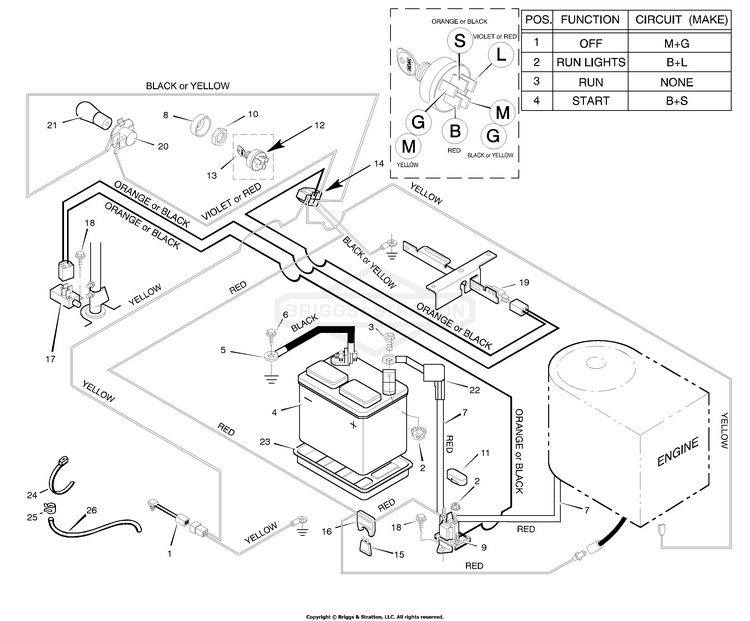

Electrical System

...
...
1
Switch, Seat Sensor BS-091031
...
2
NUT, HEX, KEPS,1/4-20 BS-703914
...
3
Bolt BS-001X38MA
...
4
Battery BS-091414
...
5
Cable, Battery Ground BS-0024X3MA
...
6
Screw BS-026X49MA
...
7
Cable, Red Battery BS-024X24MA
...
8
CAP, Switch BS-847150
...
9
Solenoid BS-094613
...
10
SET, Washer/Nut BS-847144
...
11
Cover, Solenoid (Optional) BS-056049
...
12
Switch, Ignition BS-091846MA
...
13
Key, Ignition BS-020729
...
14
Harness, Chassis Wire BS-250X85MA
...
15
Fuse BS-054212
...
16
Holder, Fuse BS-407078MA
...
17
Switch, Limit BS-091032MA
...
18
Screw BS-26X233MA
...
19
SWITCH, PLUNGER, N.O. BS-5021451SM
...
20
Socket, Light BS-092372
...
21
BULB-HEADLIGHT 1 BS-1677371SM
...
22
Cover, Terminal BS-054148MA
...
23
Tray, Battery BS-091896MA
...
24
Tie BS-032618MA
...
25
Clamp BS-091565
...
26
Tube, Drain BS-091584
