30550G Murray - Lawn Tractor (1998)

Model: 30550G

Back To Assemblies

Save Part Not Listed?
product name

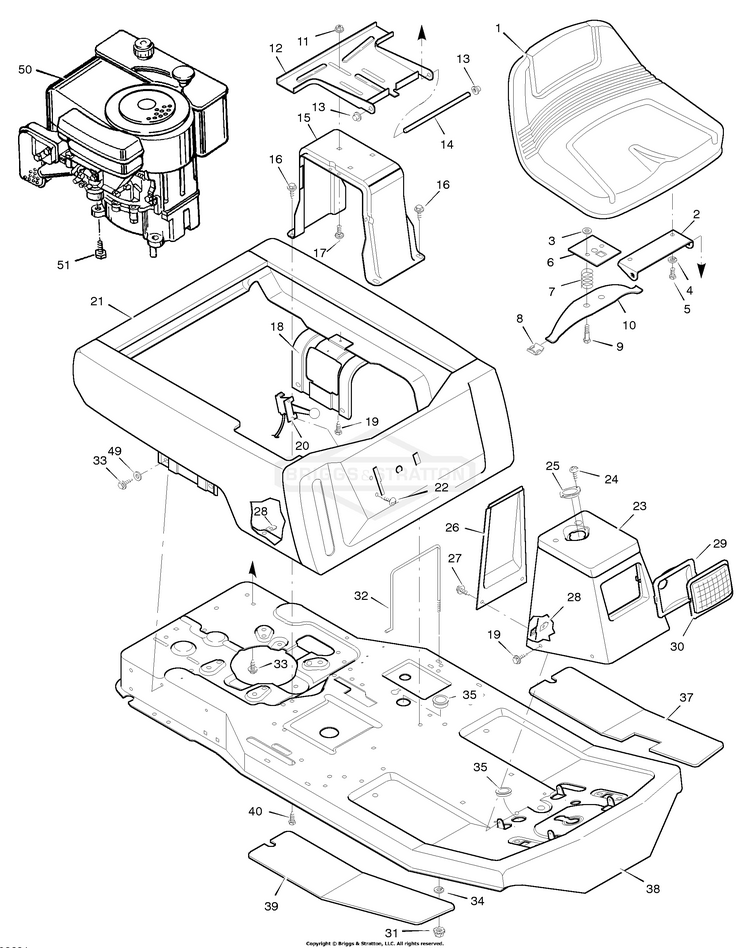

Body Chassis

...
...
1
Seat BS-091965
...
2
Hinge, Seat BS-056516E700
...
3
RETAINER, GR5, 5/16 BS-703297
...
4
Lockwasher BS-018X16MA
...
5
CAPSCREW,5/16-18X.625 BS-703822
...
6
Plate, Seat Switch BS-091963
...
7
Spring, Compression BS-164X26MA
...
8
Glide, Seat Spring BS-091822MA
...
9
Bolt, Shoulder BS-009X38MA
...
10
Spring, Seat BS-091964MA
...
11
NUT, HEX FLNG,5/16-18 BS-704067
...
12
Bracket, Seat Pivot BS-056518E700
...
13
PUSHNUT, 3/8 BS-703948
...
14
Rod, Seat Hinge BS-565372
...
15
Support, Seat BS-056517E700
...
16
Screw BS-26X249MA
...
17
BOLT BS-703159
...
18
Support, Body (Included with Ref. No. 21) BS-055017E700
...
19
Screw BS-26X214MA
...
20
Throttle Control BS-056598MA
...
21
Body BS-054766E245
...
22
Screw BS-26X201MA
...
23
Console Assembly BS-056570E245
...
24
Screw BS-26X254
...
25
Bearing, Steering Post BS-056022MA
...
26
Console, Plate BS-055023E700
...
27
Screw BS-004X24MA
...
28
J-Nut BS-028X18
...
29
Reflector BS-056241 Z
...
30
Lens BS-090082MA
...
31
NUT, HEX, KEPS,1/4-20 BS-703914
...
32
Clamp, Battery BS-548002
...
33
Screw BS-026X49MA
...
34
Washer BS-017X38MA
...
35
Grommet BS-021268
...
37
Mat, Left BS-056107
...
38
Frame Assembly BS-56611E245
...
39
Mat, Right BS-056106
...
40
Screw BS-006X74MA
...
49
Washer BS-0019X6
...
51
SCREW-HEX WSHR HD TAP BS-2828635SM
...
--
Owner's Manual BS-F-98600
...
--
Parts List BS-F-98601
...
--
Decal, Right Panel BS-44X6664
...
--
Decal, Left Panel BS-44X6663
...
--
Decal, Shift BS-44X6651
...
--
Decal, Front BS-44X6656
...
--
Decal, Operation BS-44X2584
...
--
Decal, Clutch/Brake BS-44X6554
