30500x92A Murray - Lawn Tractor (1998)

Model: 30500x92A

Back To Assemblies

Save Part Not Listed?
product name

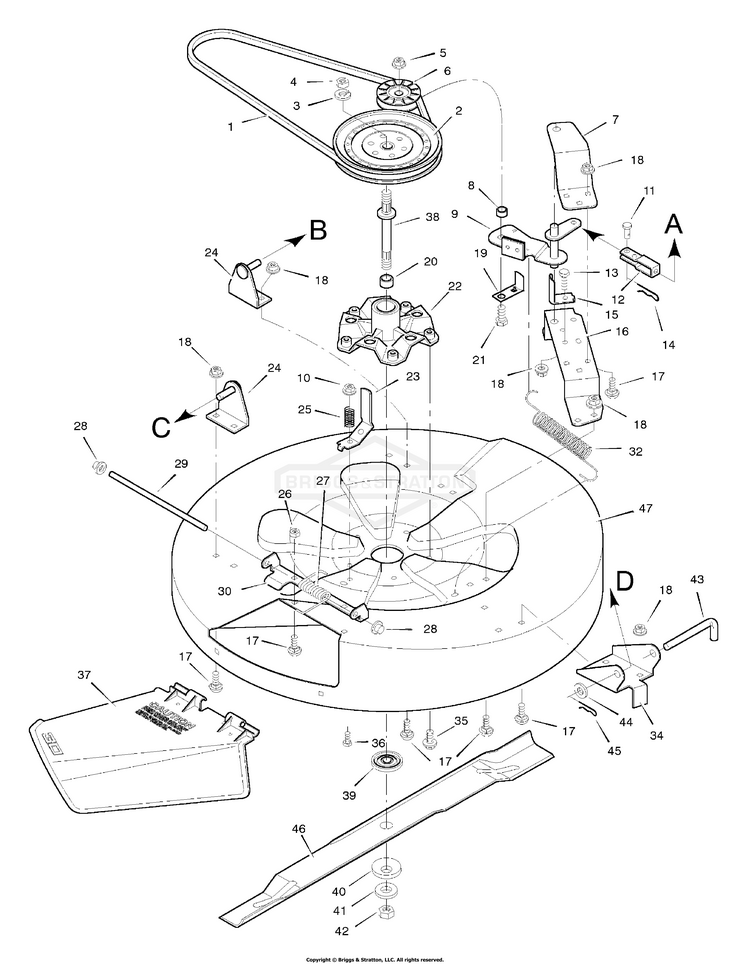

Mower Housing

...
...
1
Belt, Mower Drive BS-037X57MA
...
2
Pulley, Splined BS-091951
...
3
Lockwasher BS-018X33MA
...
4
Locknut, Hex BS-15X100MA
...
5
Nut, Hex BS-015X41MA
...
6
Pulley, Idler BS-091178
...
7
Bracket, Upper Idler BS-055921
...
8
Spacer BS-055895MA
...
9
Assembly, Blade Idler BS-055979MA
...
10
NUT, HEX FLNG,5/16-18 BS-704067
...
11
Pin, Clevis BS-029X99MA
...
12
Clevis Hex BS-024471 Z
...
13
CAPSCREW,5/16-18X.625 BS-703822
...
14
PIN, 3/32 X 1.6 BS-703300
...
15
Guide, Belt BS-055977MA
...
16
Bracket, Lower Idler BS-55920E700
...
17
BOLT BS-703159
...
18
NUT, 5/16-18, GR5 BS-703409
...
19
Guide, Belt BS-055894MA
...
20
Spacer BS-091925MA
...
21
Bolt, Hex BS-01X127MA
...
22
Housing, Mandrel BS-055962
...
23
Guide, Belt BS-055956 Z
...
24
Bracket, Hanger BS-055974E700
...
25
Spring, Compression BS-0164X1MA
...
26
NUT BS-703164
...
27
Spring - Torsional BS-0166X4MA
...
28
PUSHNUT, 3/8 BS-703948
...
29
Rod BS-021197 Z
...
30
Hinge, Chute Deflector BS-56213E700
...
32
Spring, Extension BS-165X68MA
...
34
Bracket, Front BS-055916E700
...
35
Screw BS-26X216MA
...
36
Bolt, Hex BS-001X75MA
...
37
Deflector, Chute BS-055971MA
...
38
Mandrel BS-091921
...
39
Adapter, Blade BS-092466MA
...
40
Washer, Belleville BS-17X166MA
...
41
Washer, Hardened BS-17X165MA
...
42
Nut, Hex BS-15X100MA
...
43
Pin, Pull BS-090828 Z
...
44
Washer BS-017X67 Z
...
45
PIN, 3/32 X 1.6 BS-703300
...
46
Blade, Standard BS-56246E700
...
--
Mower Housing, Complete (Includes Ref. No's. 1-47) BS-403330
