30500x92A Murray - Lawn Tractor (1998)

Model: 30500x92A

Back To Assemblies

Save Part Not Listed?
product name

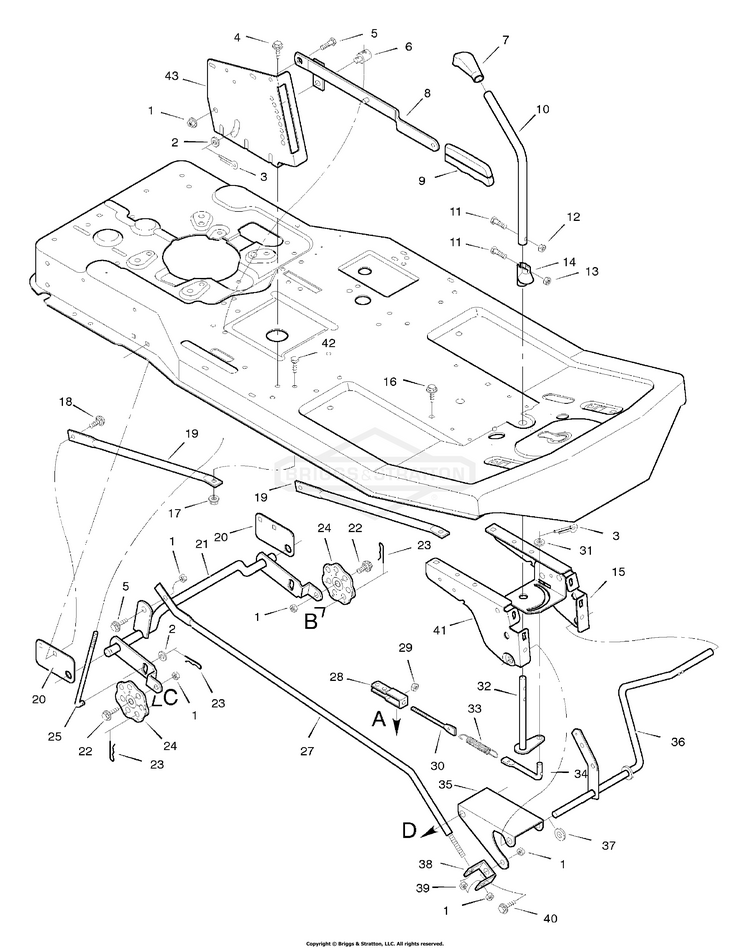

Mower Housing Suspension

...
...
1
NUT, CNTR LCK, 3/8-16 BS-703893
...
2
Washer BS-017X53 Z
...
3
PIN, COTTER, 3/32X.75 BS-703312
...
4
Screw BS-26X249MA
...
5
Bolt, Shoulder BS-009X39MA
...
6
Nut, Adjusting BS-021920ZMA
...
7
GRIP BS-1753233YP
...
8
Lever Assembly, Lift BS-056031E700
...
9
Grip, Lift Lever BS-091573
...
10
Attachment, Clutch BS-055927 Z
...
11
Bolt, Hex BS-001X76MA
...
12
NUT, HEX, KEPS,1/4-20 BS-703914
...
13
NUT .25-20 FLANGELOCK BS-015X89MA
...
14
Cam, Blade Control BS-055853MA
...
15
Plate, Left Suspension BS-56224E700
...
16
Screw BS-26X249MA
...
17
NUT, HEX FLNG,5/16-18 BS-704067
...
18
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
19
Strut, Frame BS-055326
...
20
Plate, Mounting BS-055270E700
...
21
Rod Assembly, Rear Suspension BS-055346E700MA
...
22
Bolt, Shoulder BS-0009X4MA
...
23
PIN, 3/32 X 1.6 BS-703300
...
24
Plate, Adjusting BS-055344 Z
...
25
Rod, Lifter BS-24839E700
...
27
Rod, Suspension BS-055957E700
...
28
Clevis BS-024471 Z
...
29
Nut, Hex BS-0015X2MA
...
30
Link, Blade Drive BS-055271 Z
...
31
Washer BS-017X48MA
...
32
Rod and Arm Assembly BS-055930E700
...
33
Spring, Extension BS-165X67MA
...
34
Link, Front Deck BS-055179 Z
...
35
Bracket, Front Suspension BS-055139E700MA
...
36
Lever, Pedal BS-056511E700
...
37
Washer BS-17X122 Z
...
38
Clevis BS-055298
...
39
Locknut, Hex BS-015X73
...
40
Bolt, Shoulder BS-009X17MA
...
41
Plate, Right Suspension BS-056023E700
...
42
CAPSCREW,5/16-18X.625 BS-703822
...
43
Plate, Index BS-056595E700
